Corolla Base, 1.8 L, Automatic
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control/Dynamic Control System
›
Anti-Lock Brake System
›
ABS Warning Light Remains ON
›
Wiring Diagram
ABS Warning Light Remains ON: Wiring Diagram

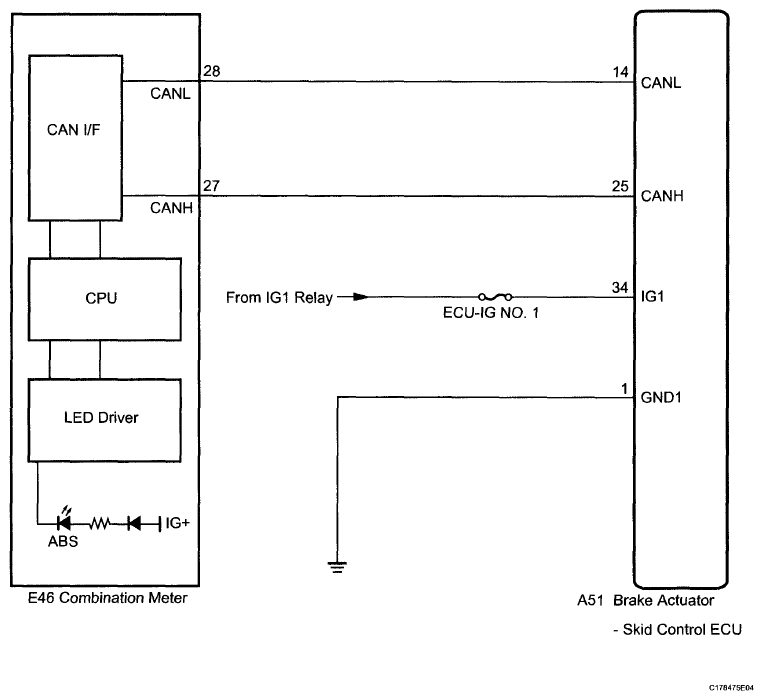

Fig 1: ABS Warning Light Remains On - Wiring Diagram
