Audio System (TMC Made): Notes

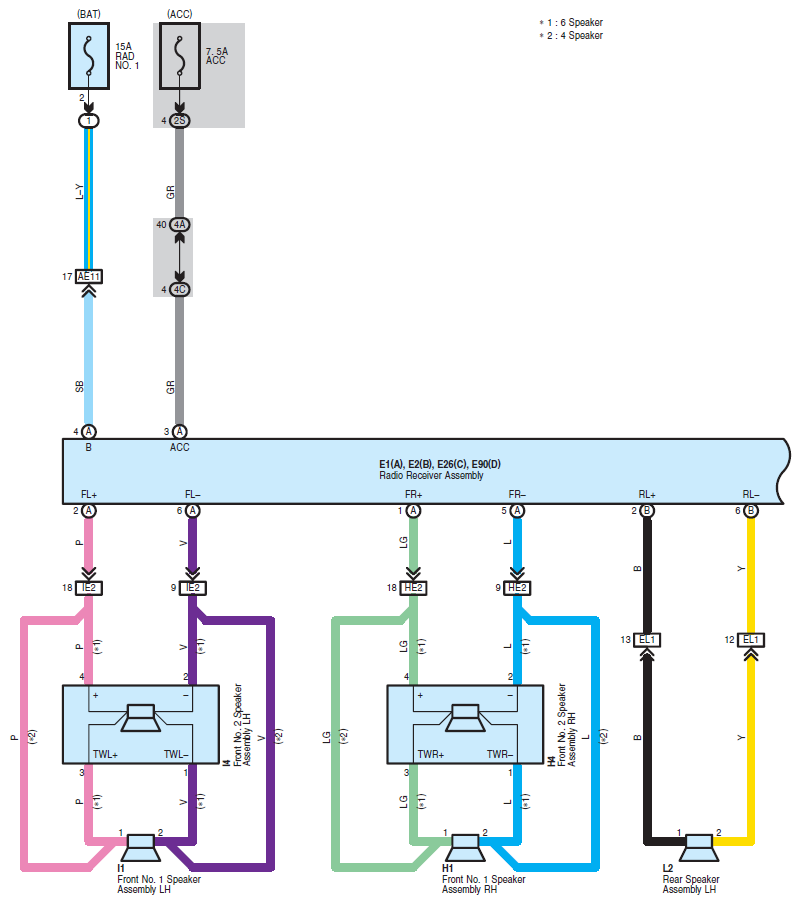

Fig 1: Audio System (TMC Made) - Circuit Diagram (1 Of 3)
G07604856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

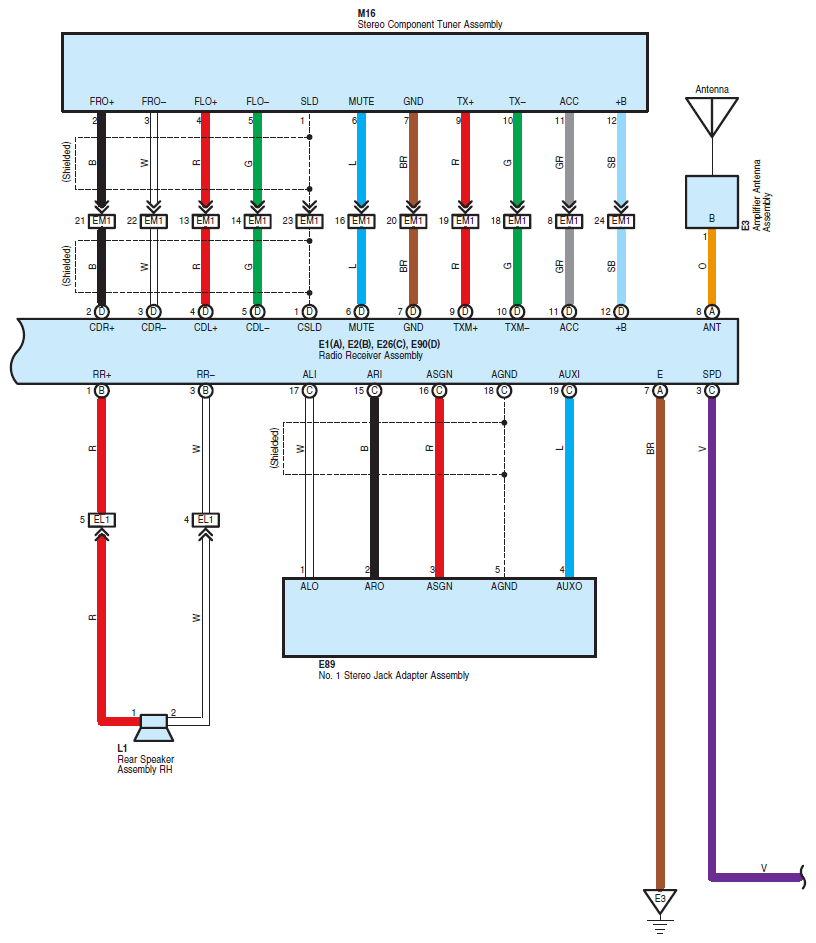

Fig 2: Audio System (TMC Made) - Circuit Diagram (2 Of 3)
G07604857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Audio System (TMC Made) - Circuit Diagram (3 Of 3)
G07604858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
