Data Link Connector 3 (TMC Made)
›
Notes
Data Link Connector 3 (TMC Made): Notes

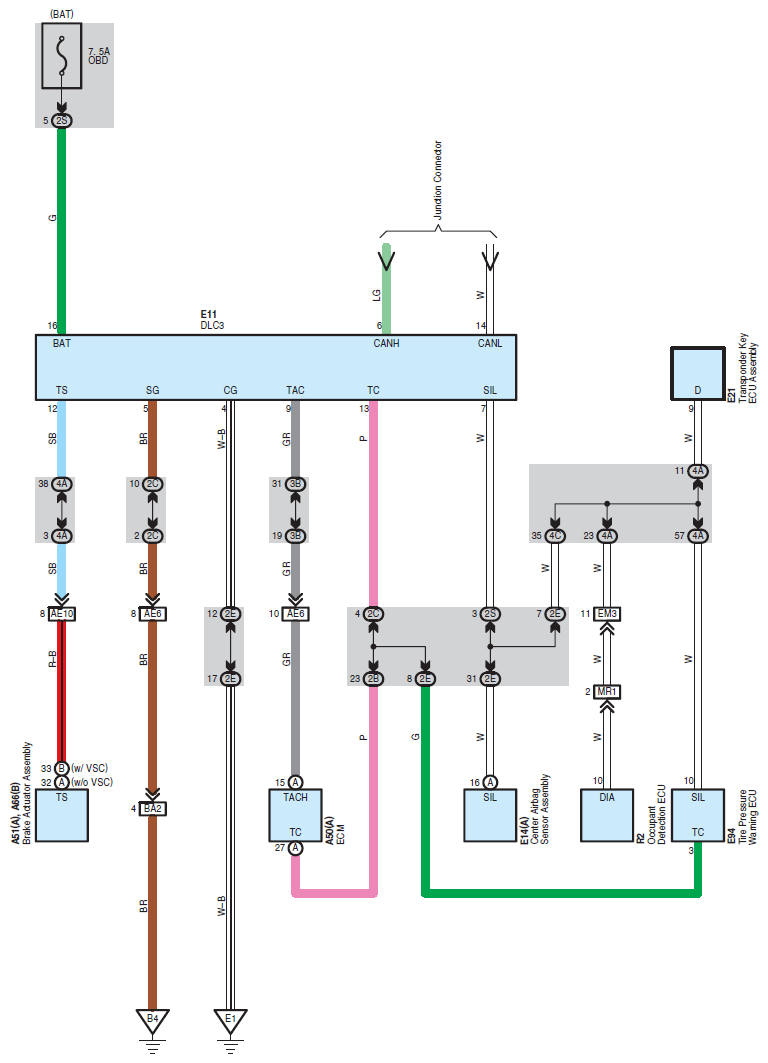

Fig 1: Data Link Connector 3 (TMC Made) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
