Fuel Injector
›
Components
Fuel Injector: Components

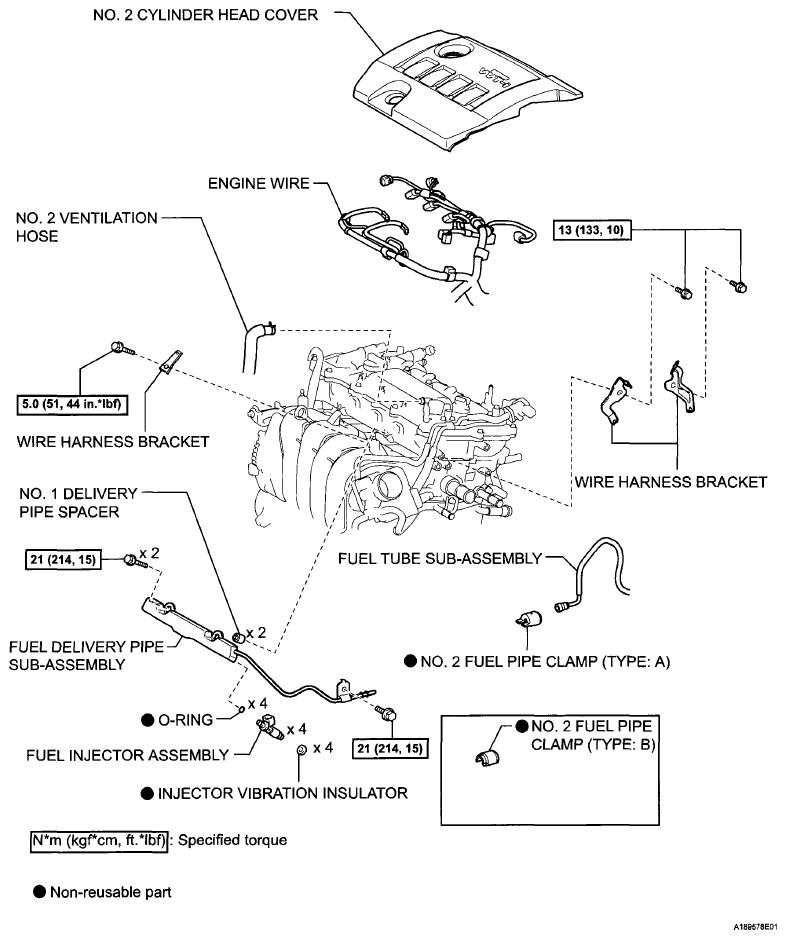

Fig 1: Fuel Injector Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
