Toyota
›
2009
›
Corolla Base, 1.8 L, Standard
›
Repair and Diagnosis
›
Body & Frame
›
Seats
›
Front Power Seat Control System
›
System Diagram
System Diagram

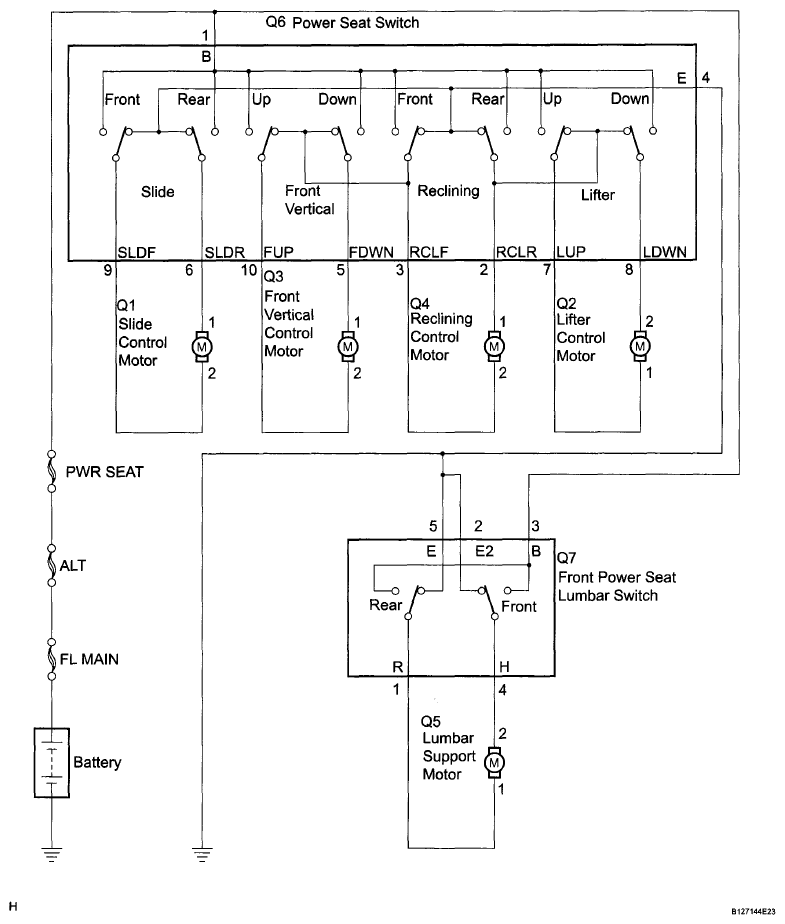

Fig 1: Front Power Seat Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
