Rear Power Window LH does not Operate with Rear Power Window Switch LH
›
Wiring Diagram
Rear Power Window LH does not Operate with Rear Power Window Switch LH: Wiring Diagram

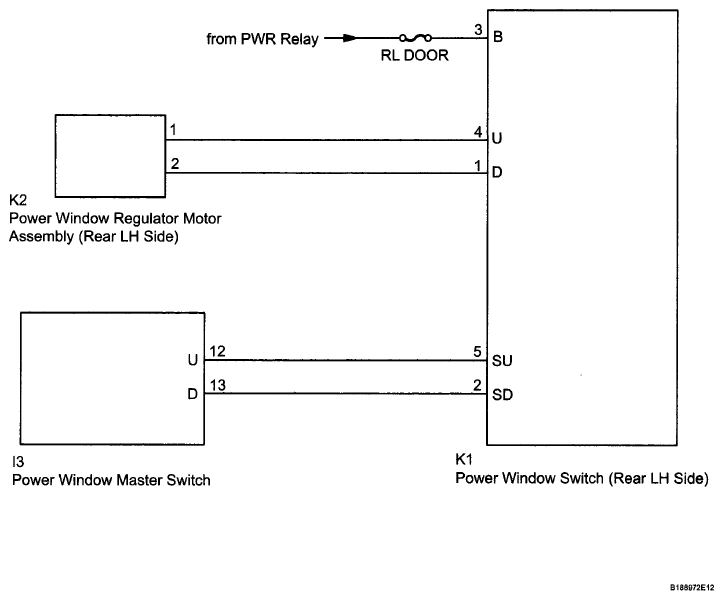

Fig 1: Rear Power Window LH - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
