Rear Power Window RH does not Operate with Rear Power Window Switch RH
›
Wiring Diagram
Rear Power Window RH does not Operate with Rear Power Window Switch RH: Wiring Diagram

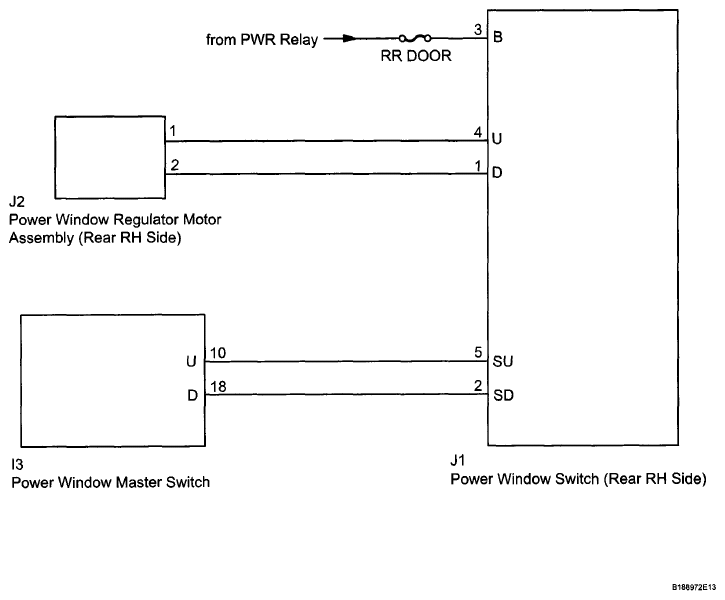

Fig 1: Rear Power Window RH - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
