DTC C1249/49 Open in Stop Light Switch Circuit: Wiring Diagram

Fig 1: Open In Stop Light Switch - Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Open In Stop Light Switch - Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

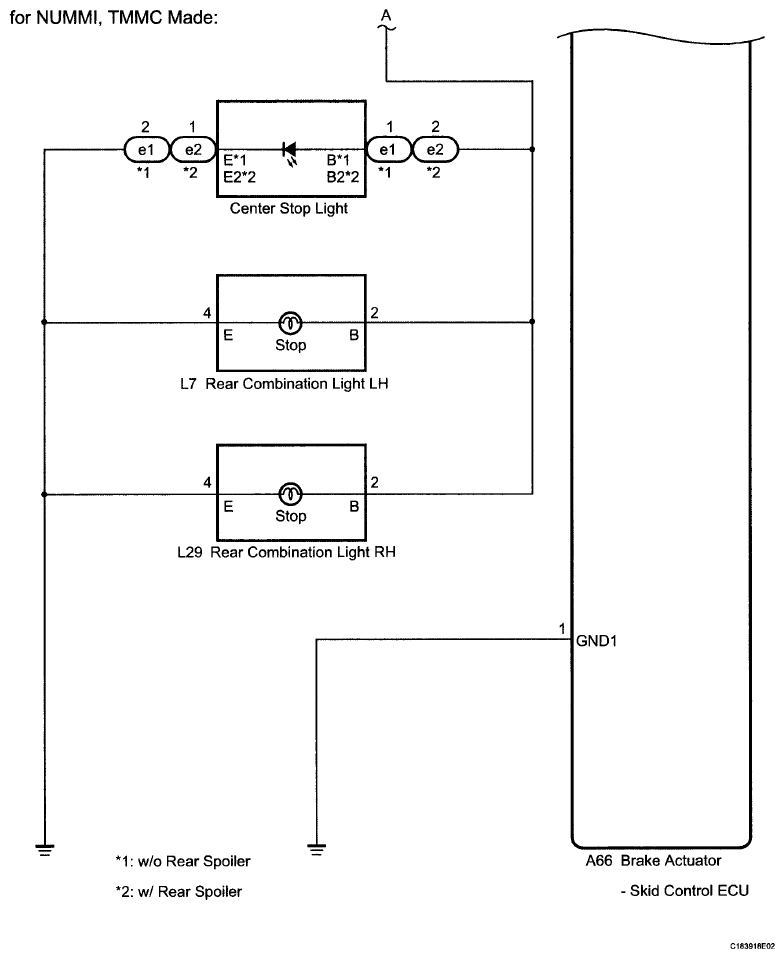

Fig 3: Open In Stop Light Switch - Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
