ABS without VSC (Except TMC Made): Notes

Fig 1: ABS Without VSC (Except TMC Made) - Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

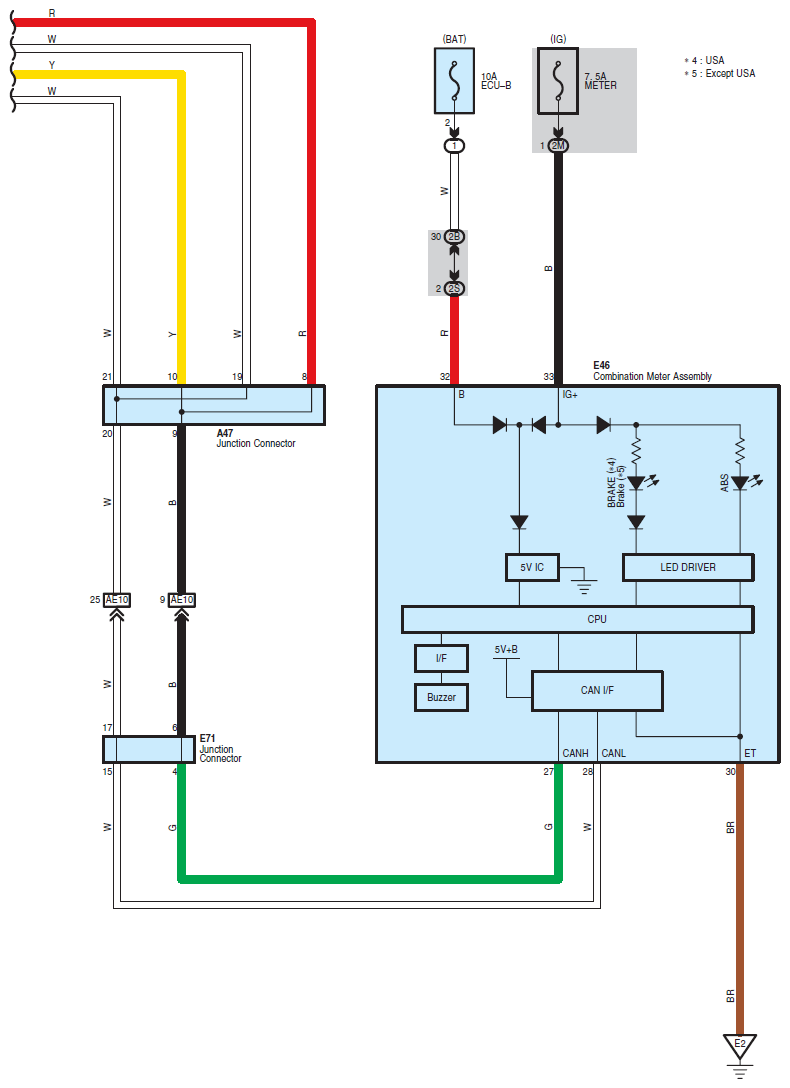

Fig 2: ABS Without VSC (Except TMC Made) - Circuit Diagram (2 Of 3)

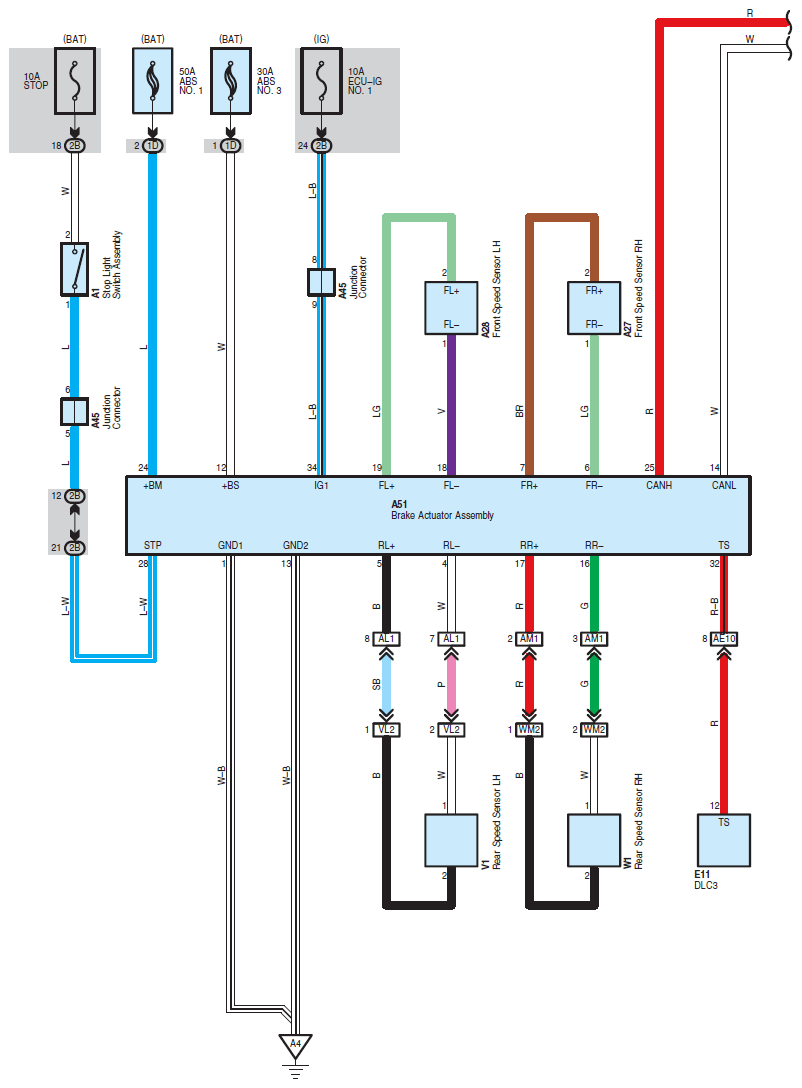

Fig 3: ABS Without VSC (Except TMC Made) - Circuit Diagram (3 Of 3)
