Charging (Except TMC Made): Notes

Fig 1: Charging (Except TMC Made) - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

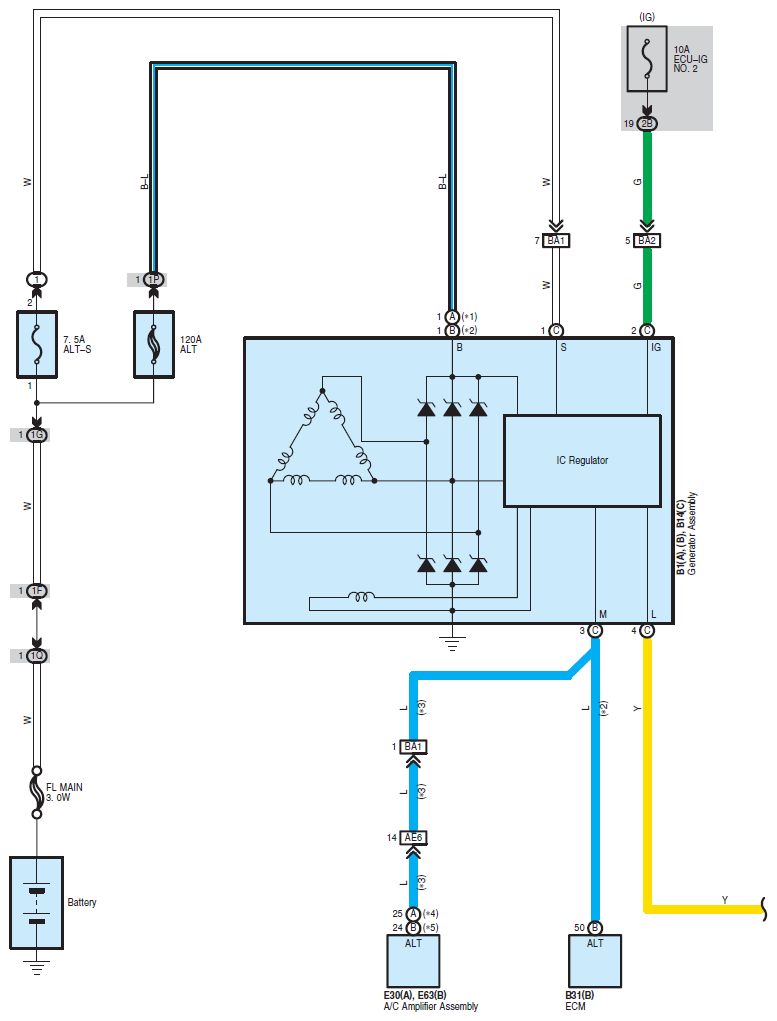

Fig 2: Charging (Except TMC Made) - Circuit Diagram (2 Of 2)
