Cruise Control (TMC Made): Notes

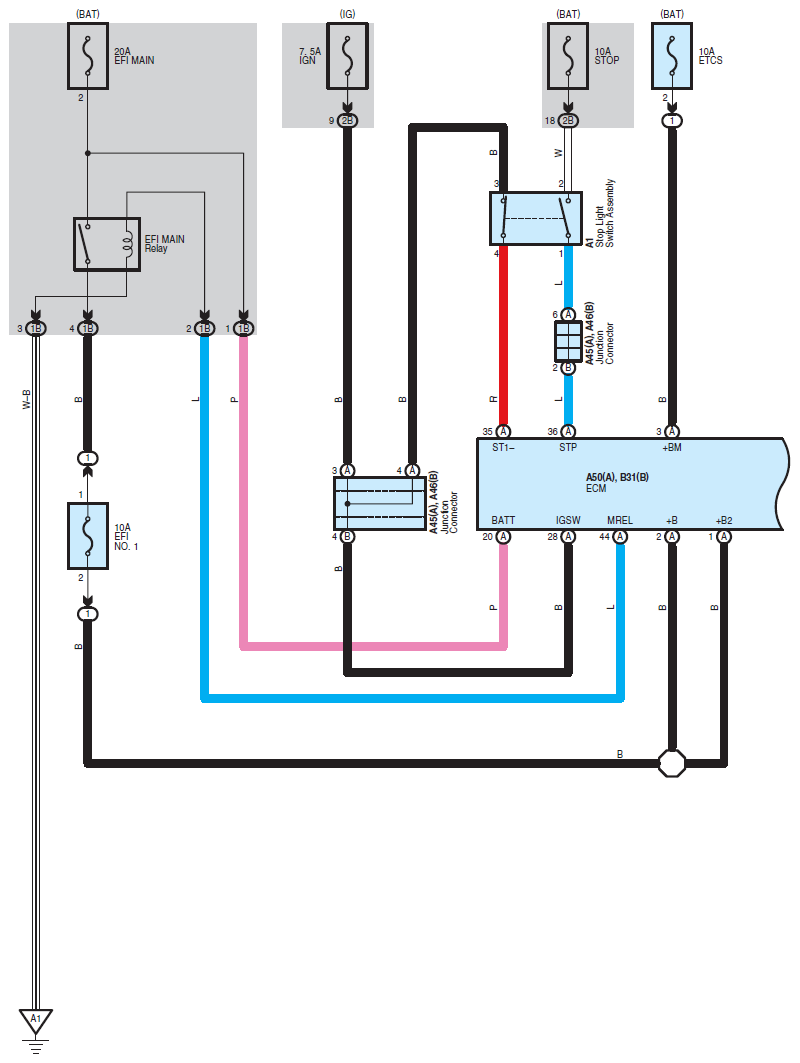

Fig 1: Cruise Control (TMC Made) - Circuit Diagram (1 Of 5)
G07604828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

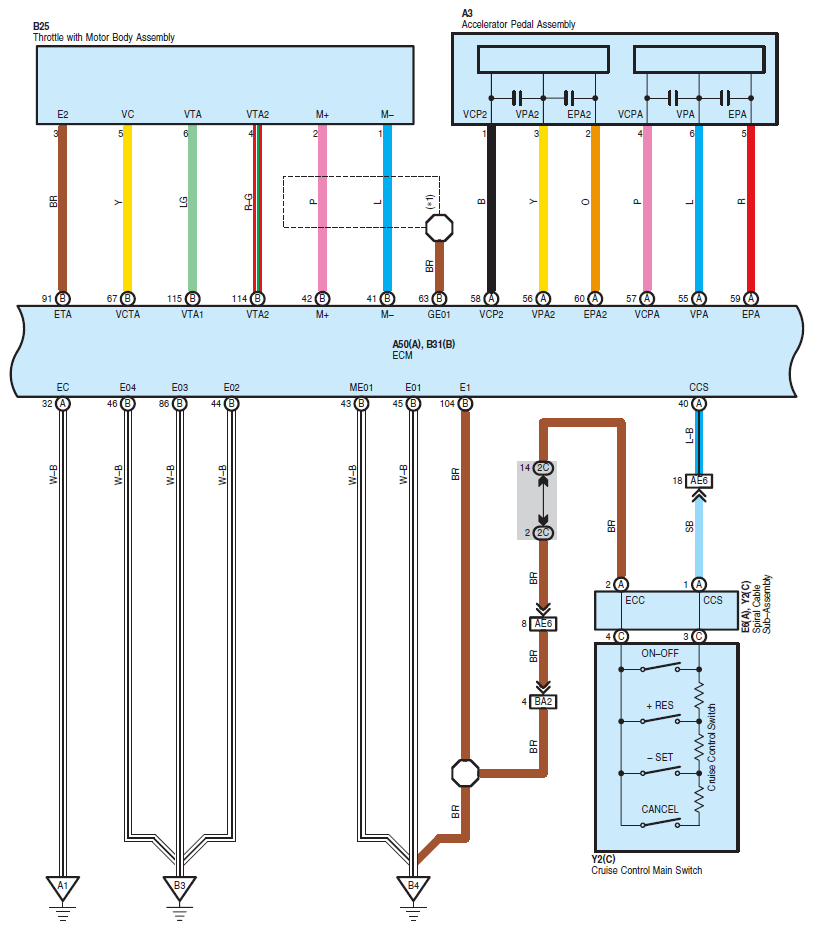

Fig 2: Cruise Control (TMC Made) - Circuit Diagram (2 Of 5)
G07604829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

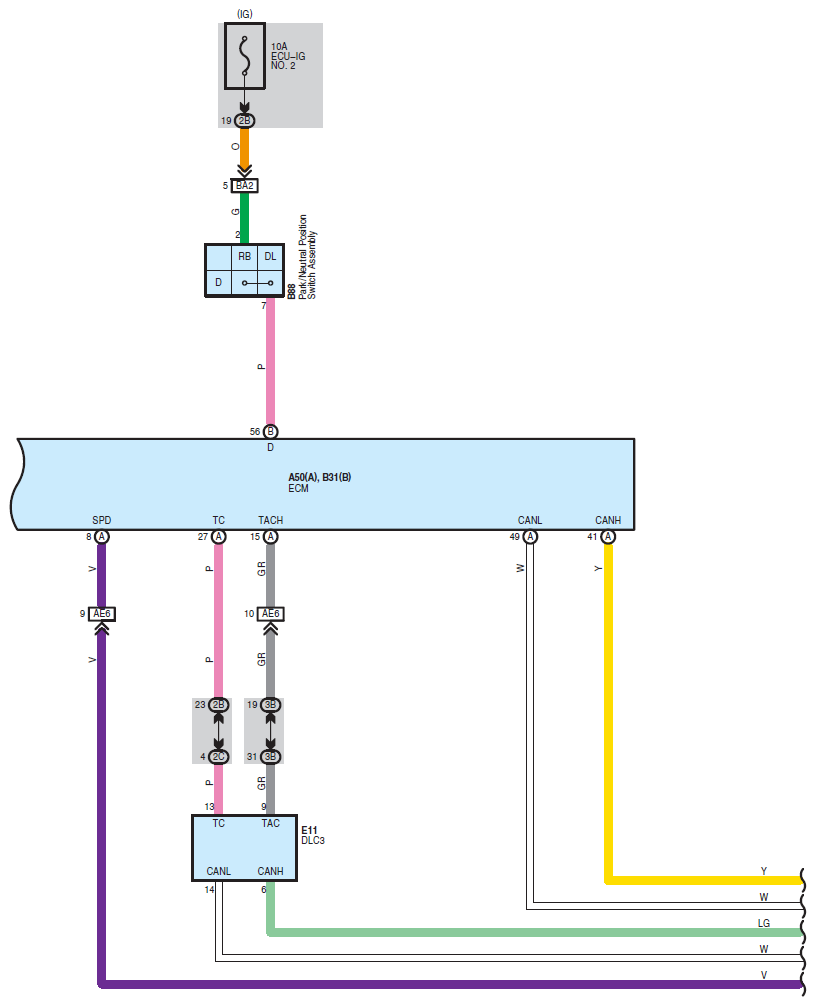

Fig 3: Cruise Control (TMC Made) - Circuit Diagram (3 Of 5)
G07604830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

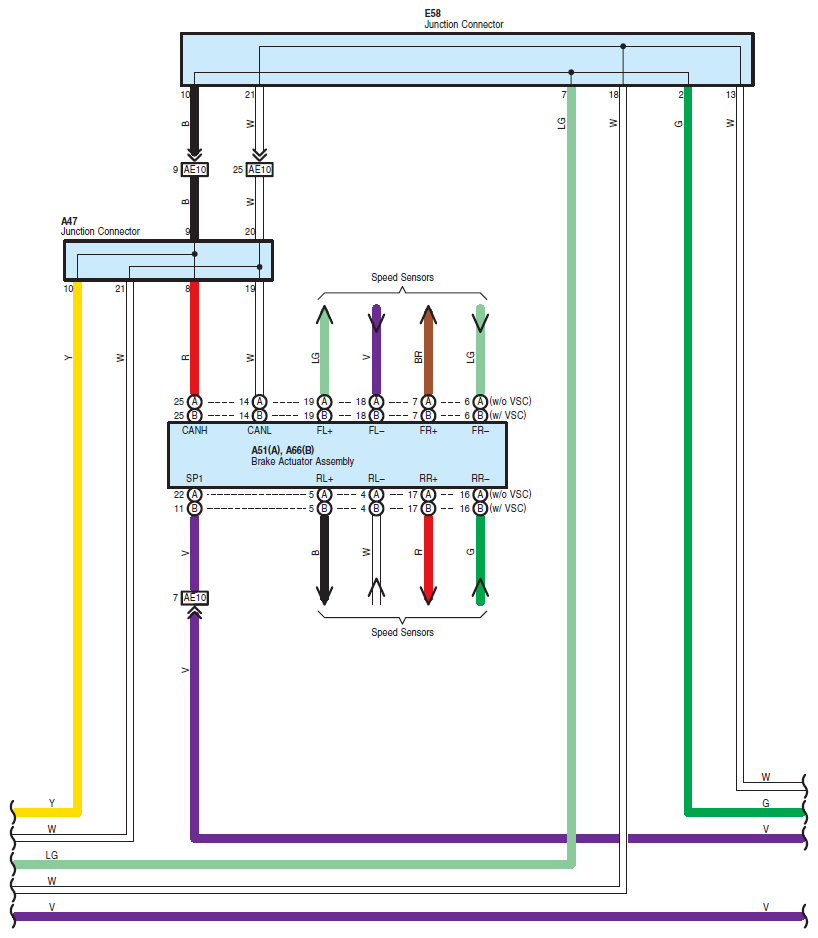

Fig 4: Cruise Control (TMC Made) - Circuit Diagram (4 Of 5)
G07604831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

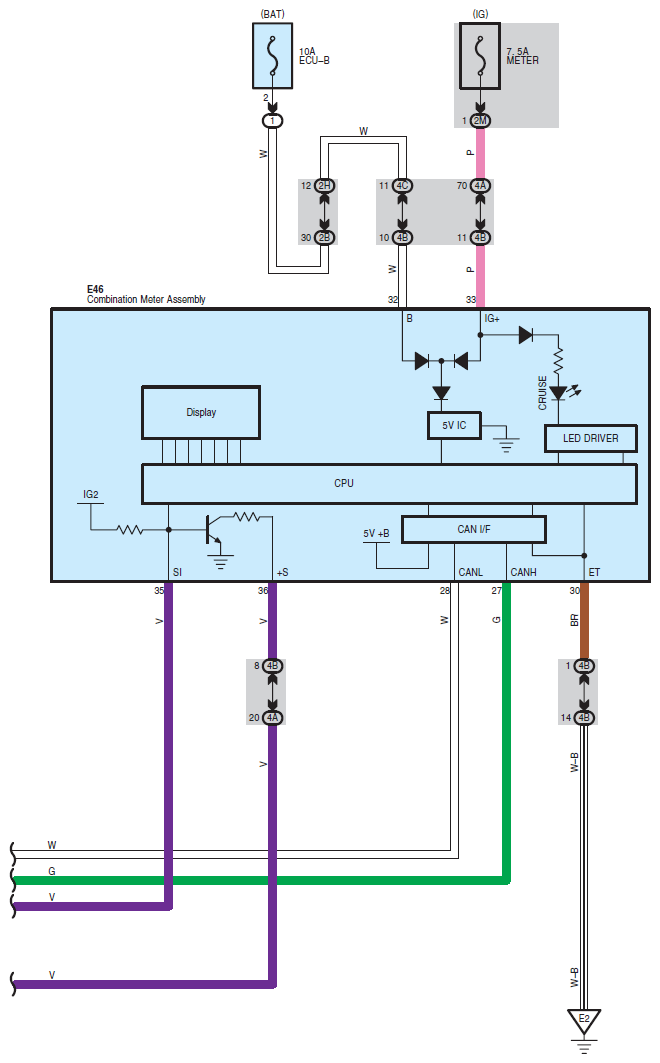

Fig 5: Cruise Control (TMC Made) - Circuit Diagram (5 Of 5)
G07604832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
