Front Fog Light (Except TMC Made): Notes

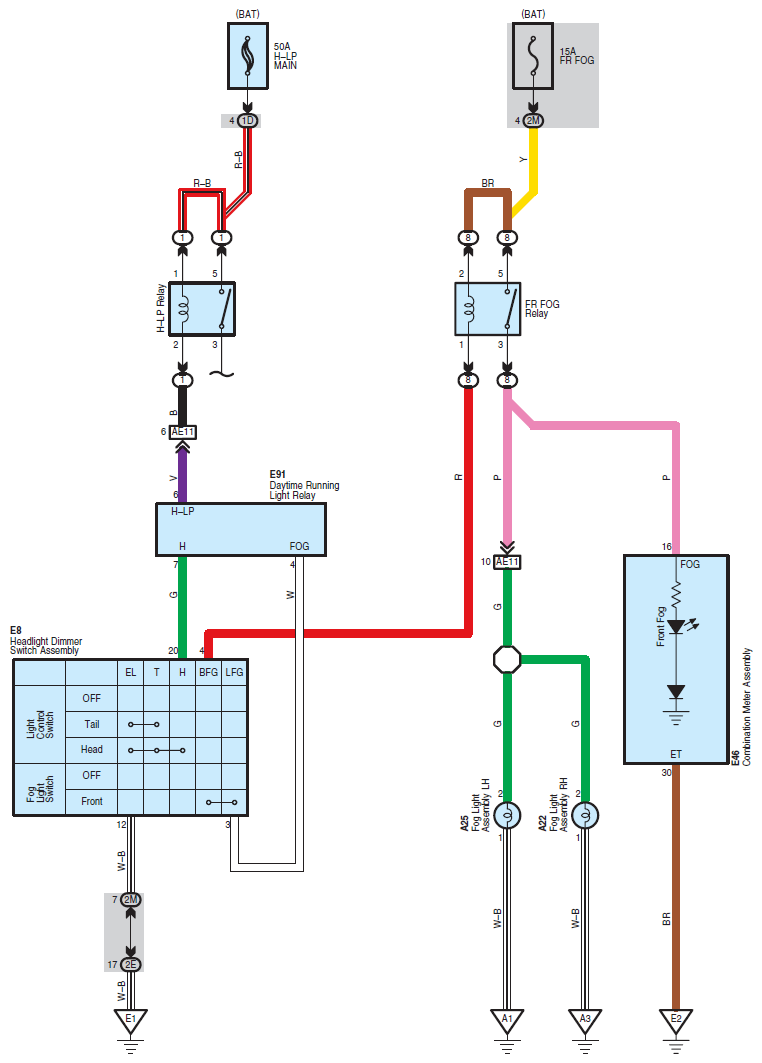

Fig 1: Front Fog Light (Except TMC Made) - Circuit Diagram
G07604945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
