Corolla Base, 1.8 U, Standard
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Cigarette Lighter (TMC Made)
›
Notes
Cigarette Lighter (TMC Made): Notes

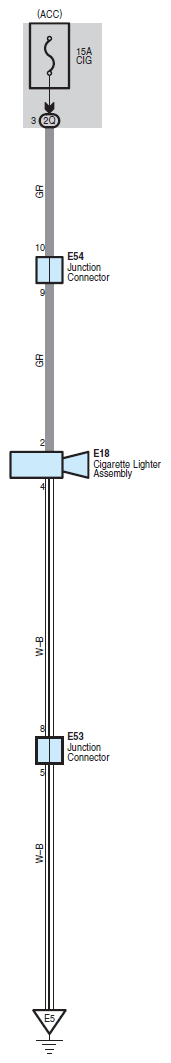

Fig 1: Cigarette Lighter (TMC Made) - Circuit Diagram
