Corolla Base, 1.8 U, Standard
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
EPS (Except TMC Made)
›
Notes
EPS (Except TMC Made): Notes

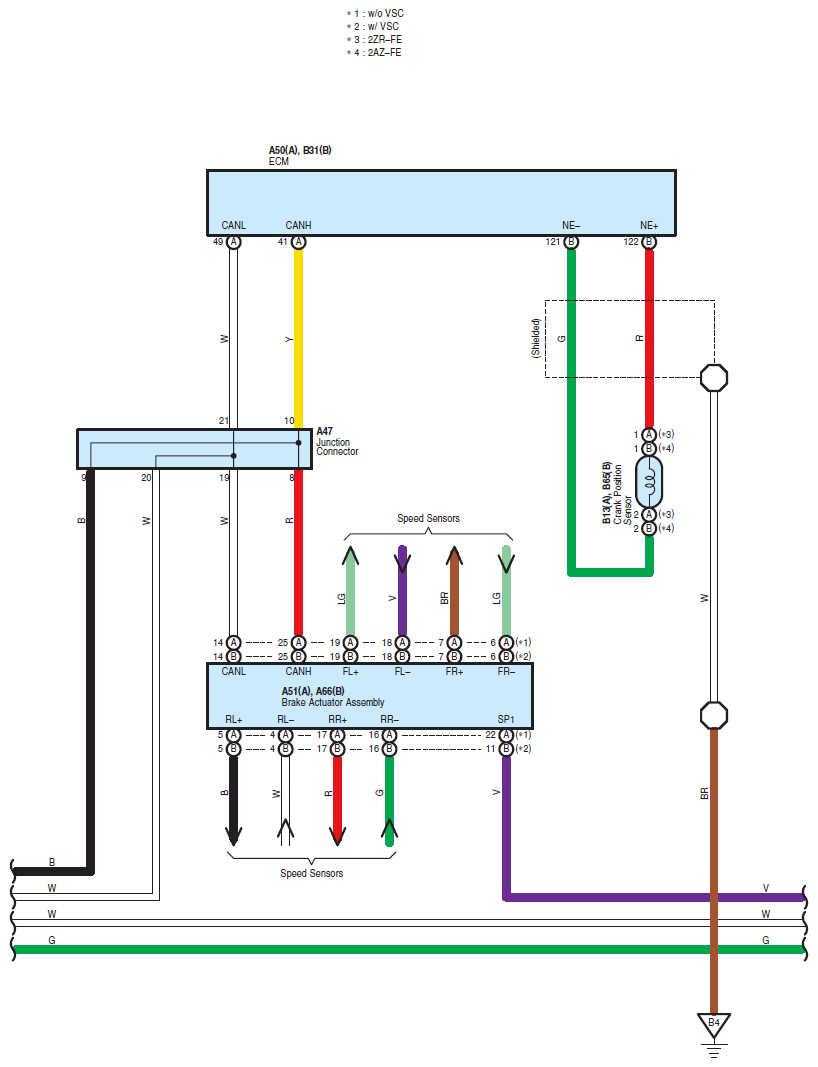

Fig 1: EPS (Except TMC Made) - Circuit Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

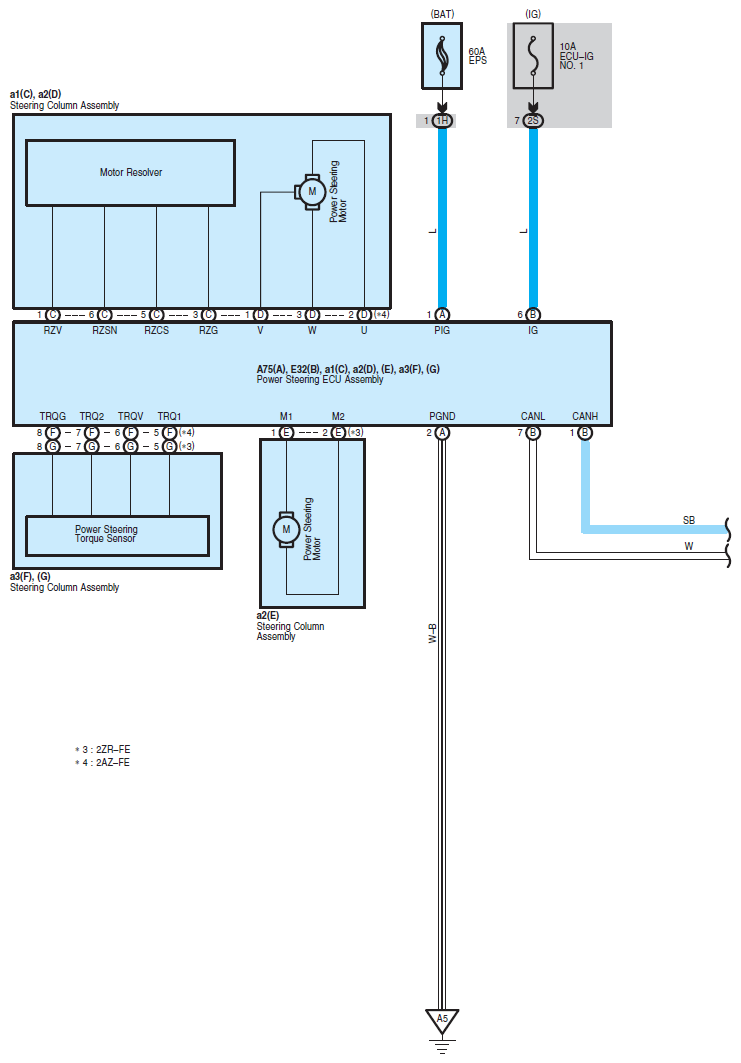

Fig 2: EPS (Except TMC Made) - Circuit Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

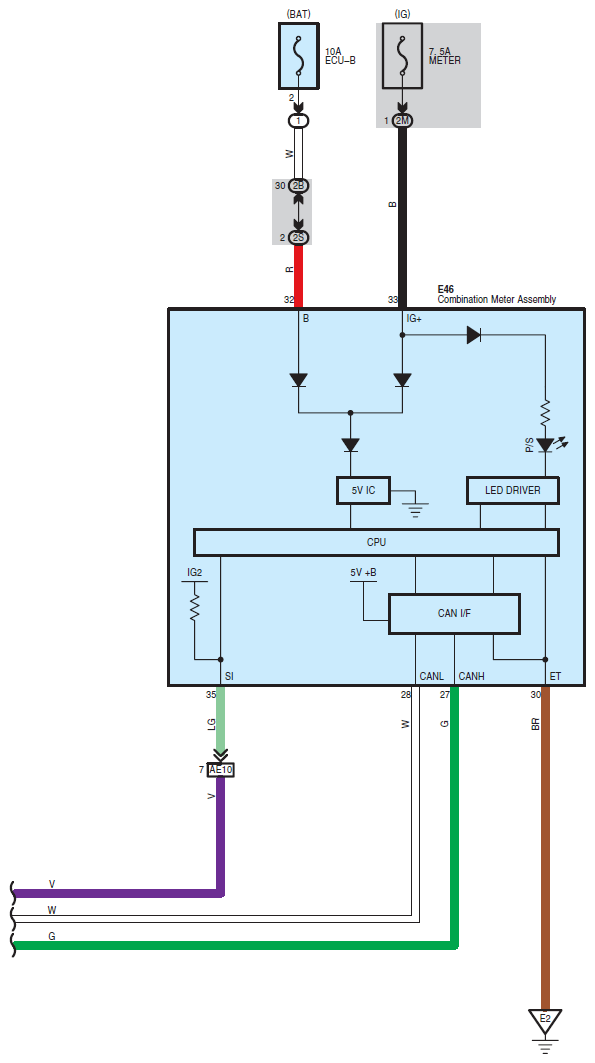

Fig 3: EPS (Except TMC Made) - Circuit Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

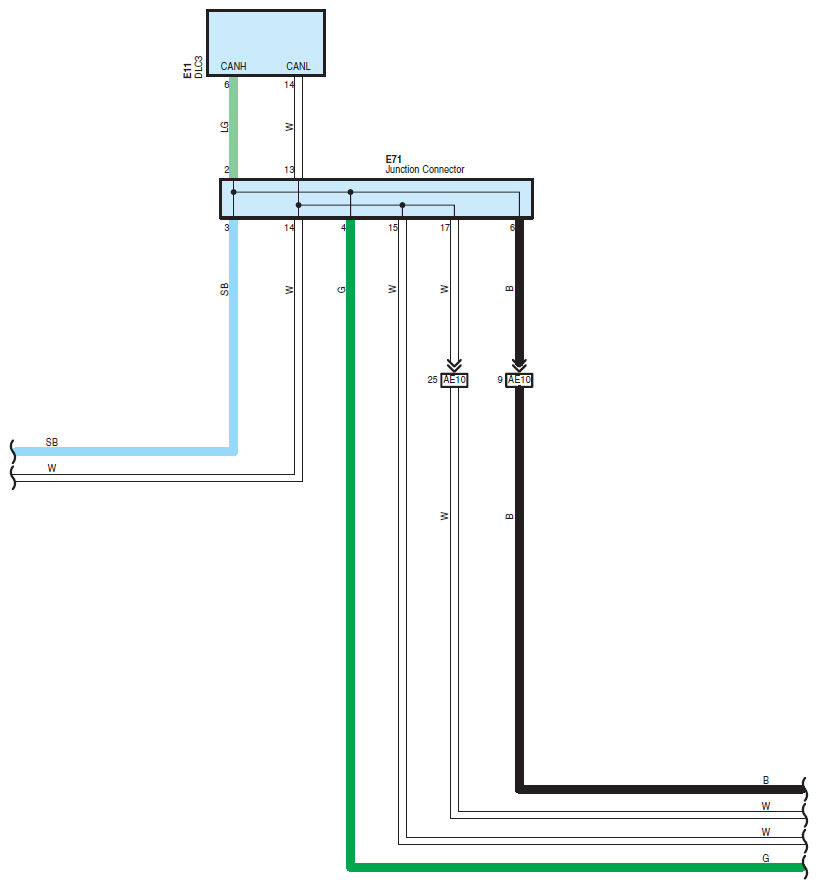

Fig 4: EPS (Except TMC Made) - Circuit Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
