Engine Control for 2AZ-FE (Except TMC Made): Notes

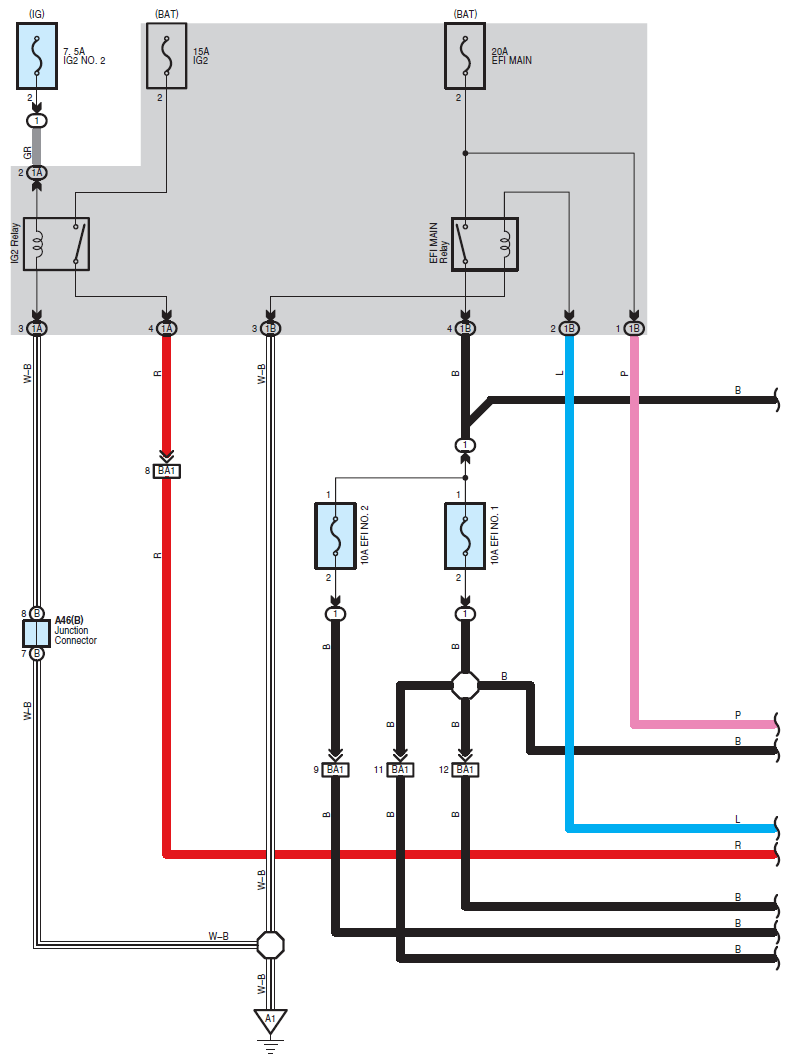

Fig 1: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (1 Of 9)

G07604902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

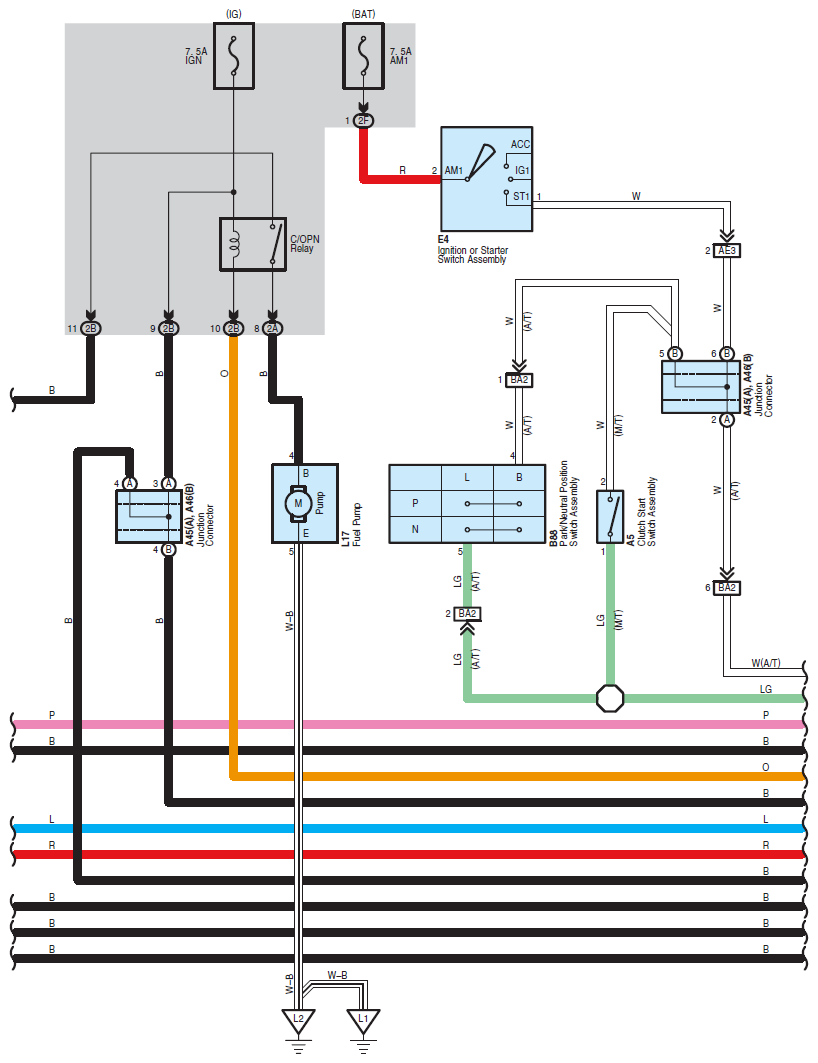

Fig 2: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (2 Of 9)

G07604903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

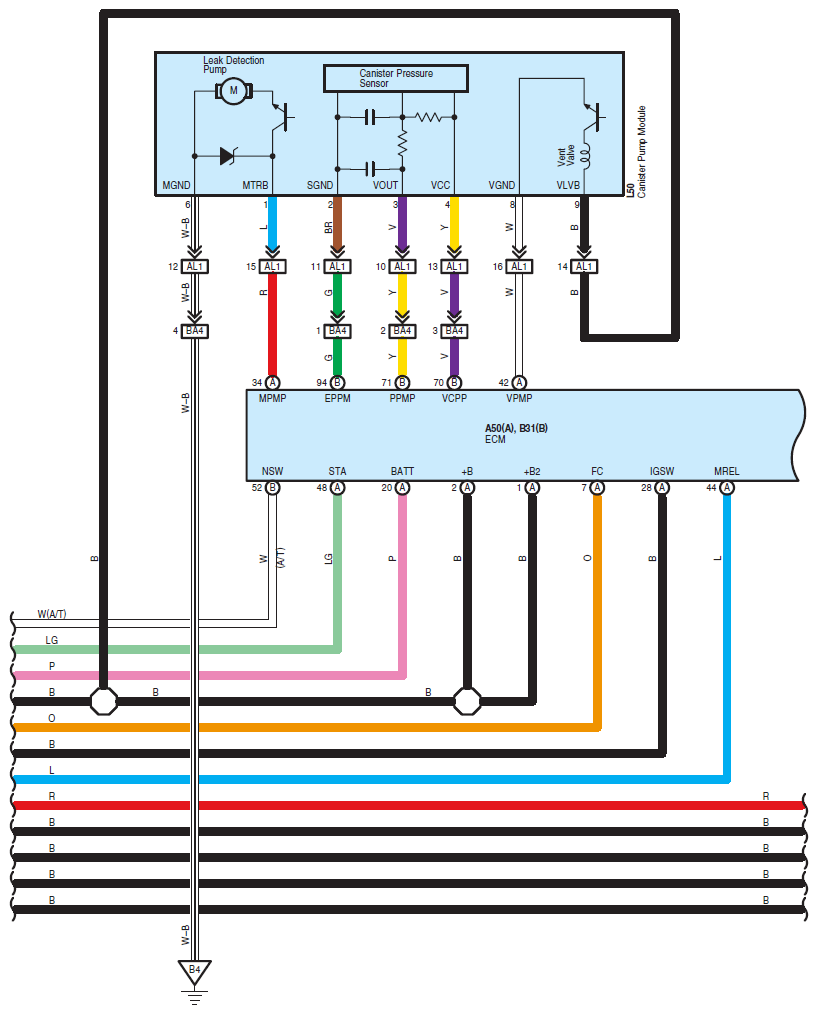

Fig 3: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (3 Of 9)

G07604904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (4 Of 9)

G07604905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

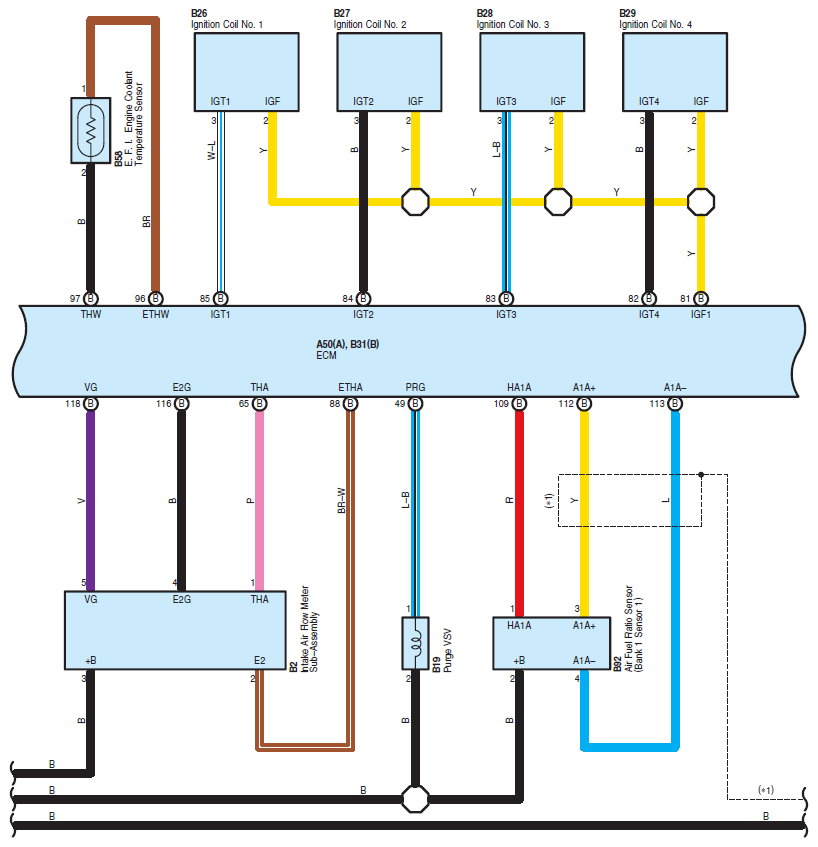

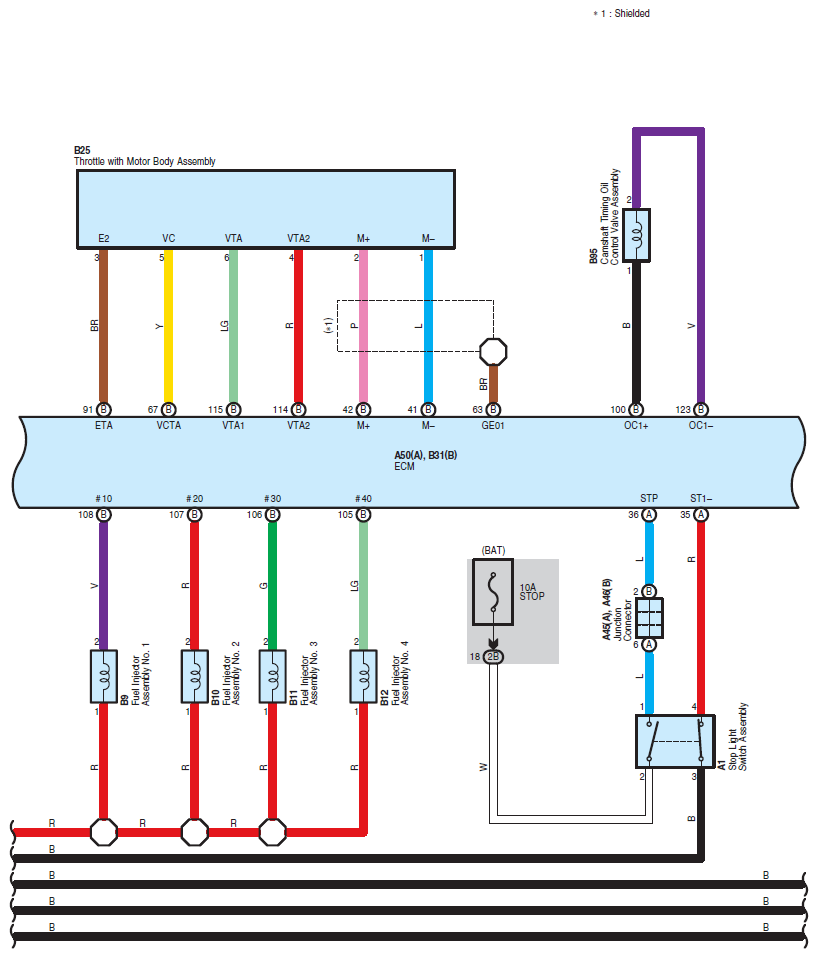

Fig 5: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (5 Of 9)

G07604906

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

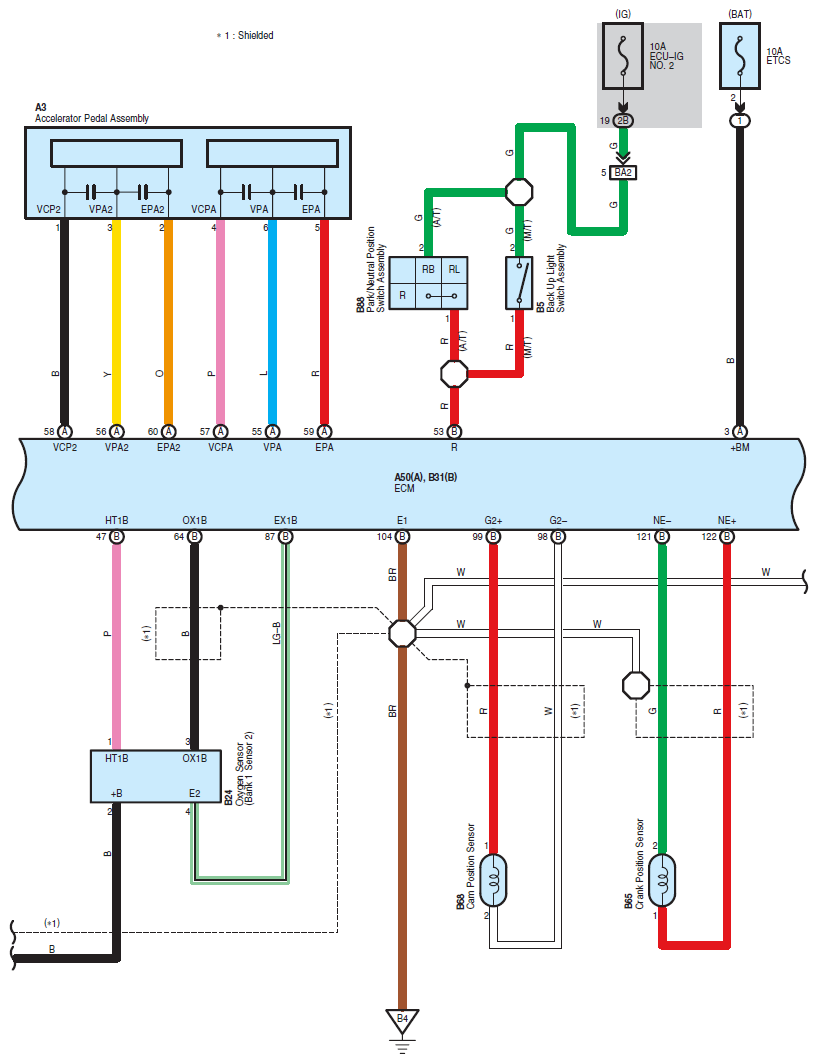

Fig 6: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (6 Of 9)

G07604907

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

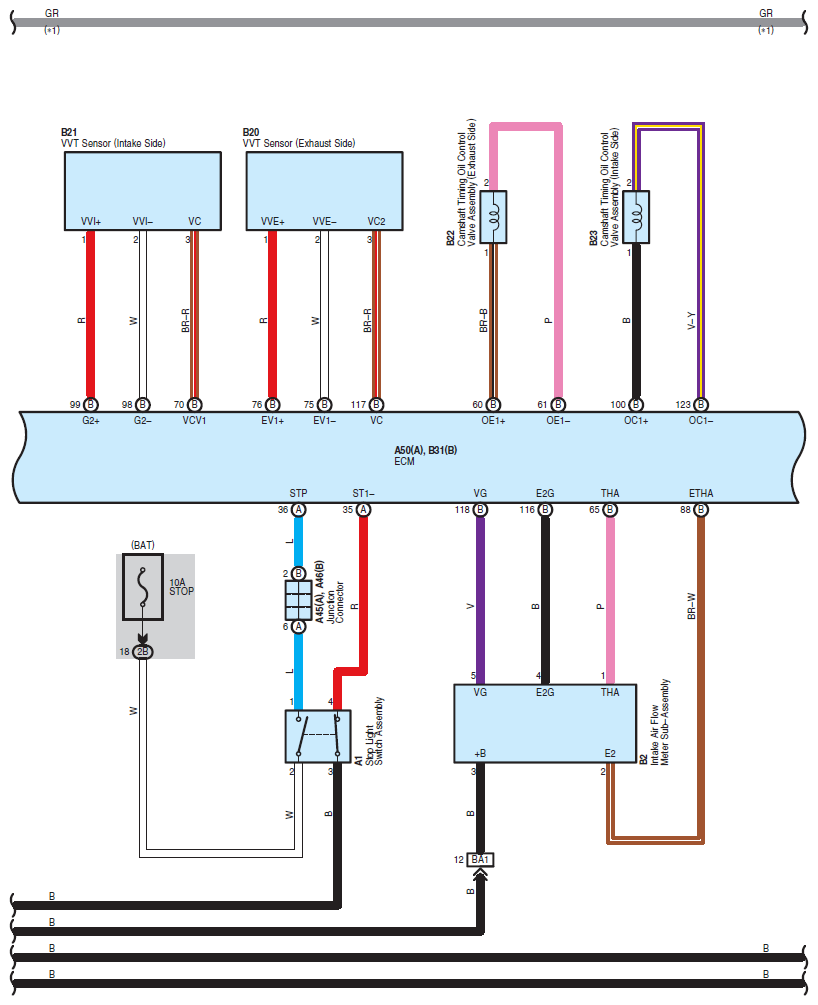

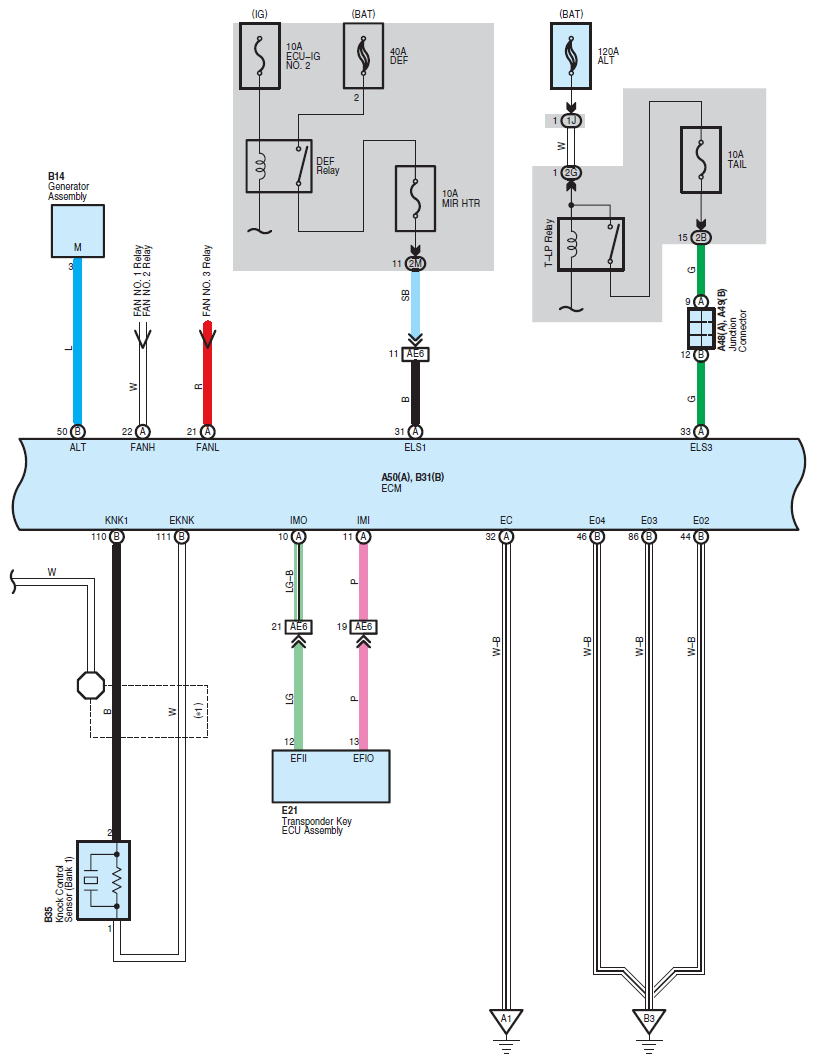

Fig 7: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (7 Of 9)

G07604908

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (8 Of 9)

G07604909

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

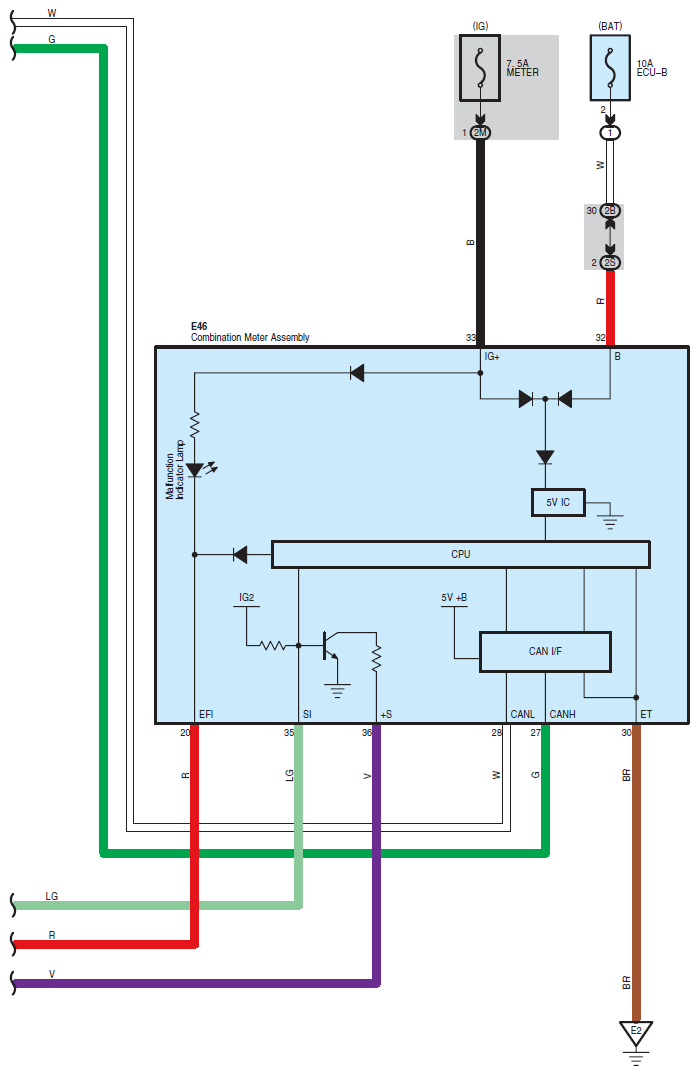

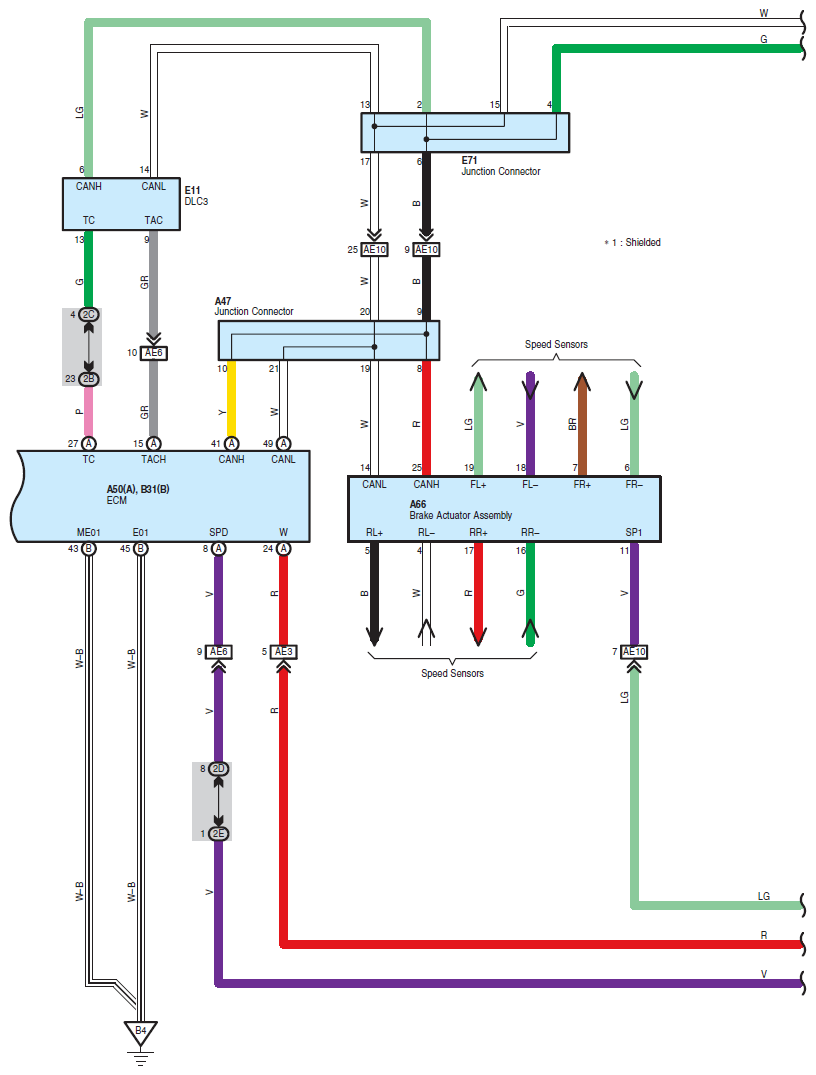

Fig 9: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (9 Of 9)

G07604910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

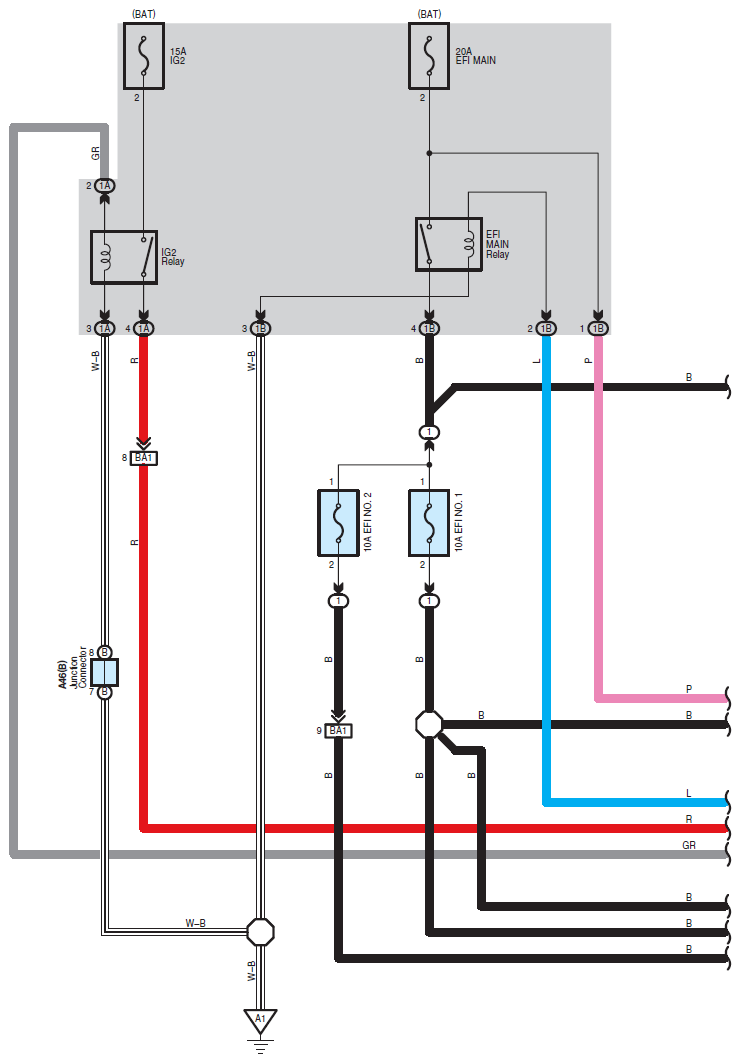

Fig 1: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (1 Of 12)

G07604911

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

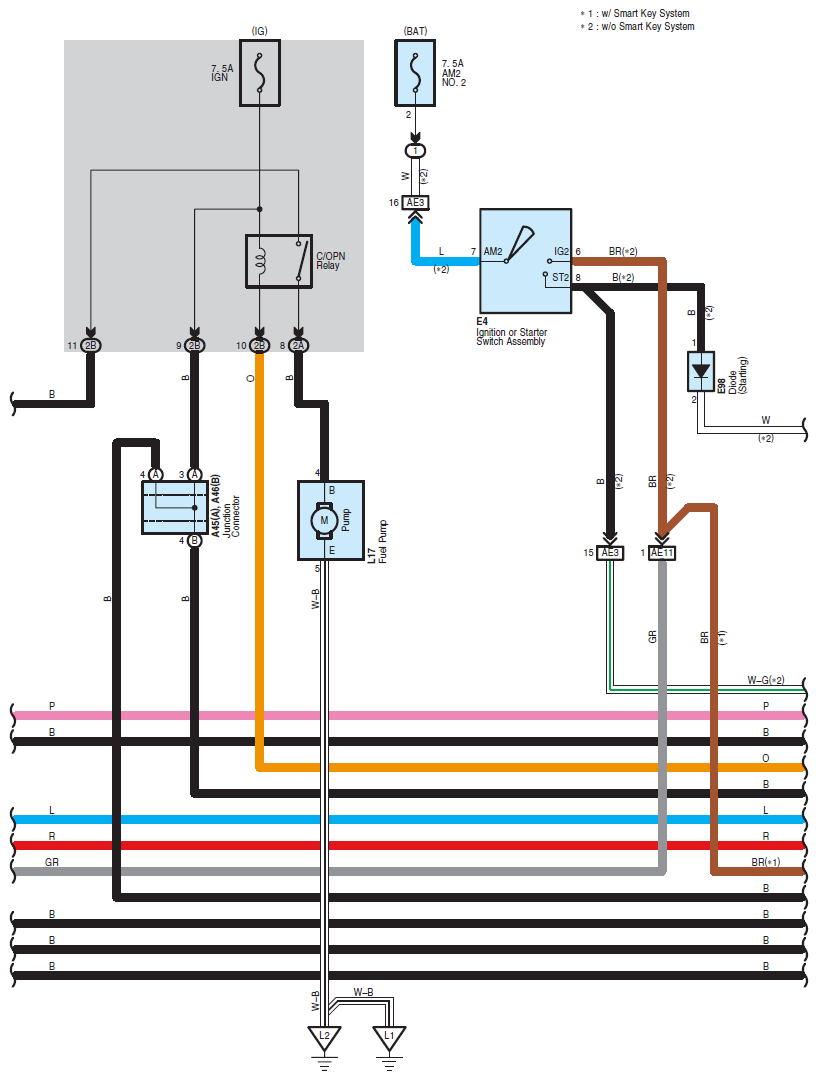

Fig 2: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (2 Of 12)

G07604912

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

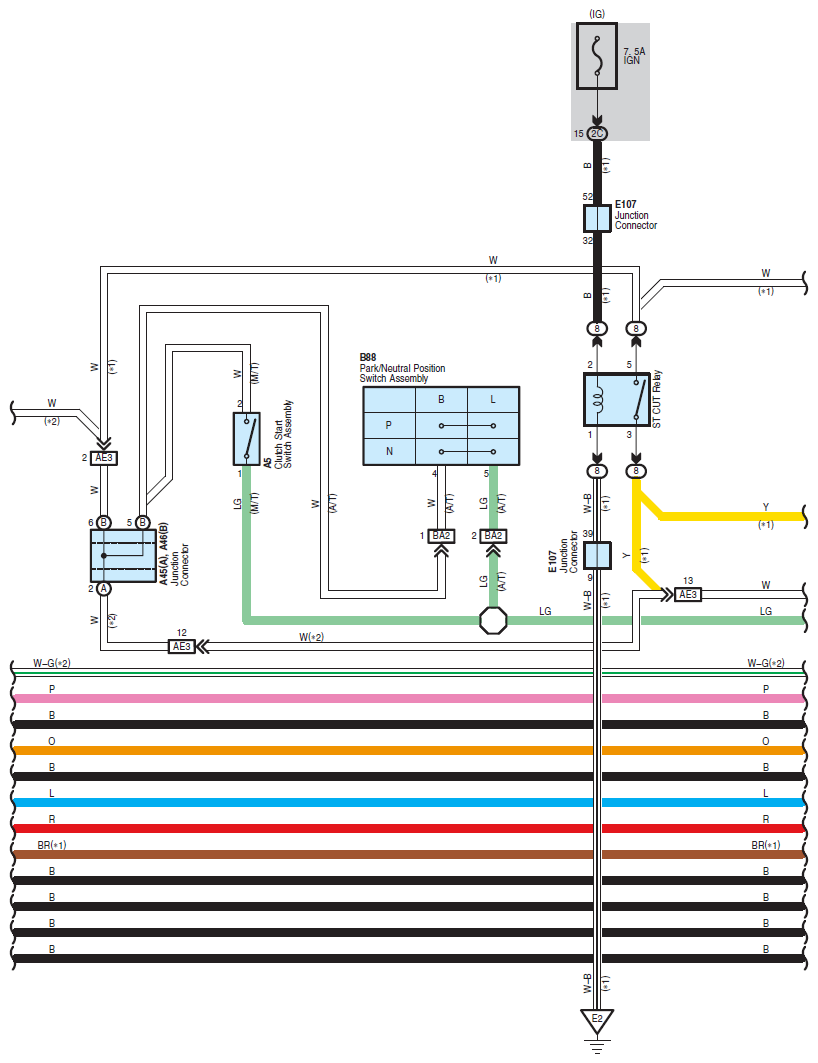

Fig 3: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (3 Of 12)

G07604913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

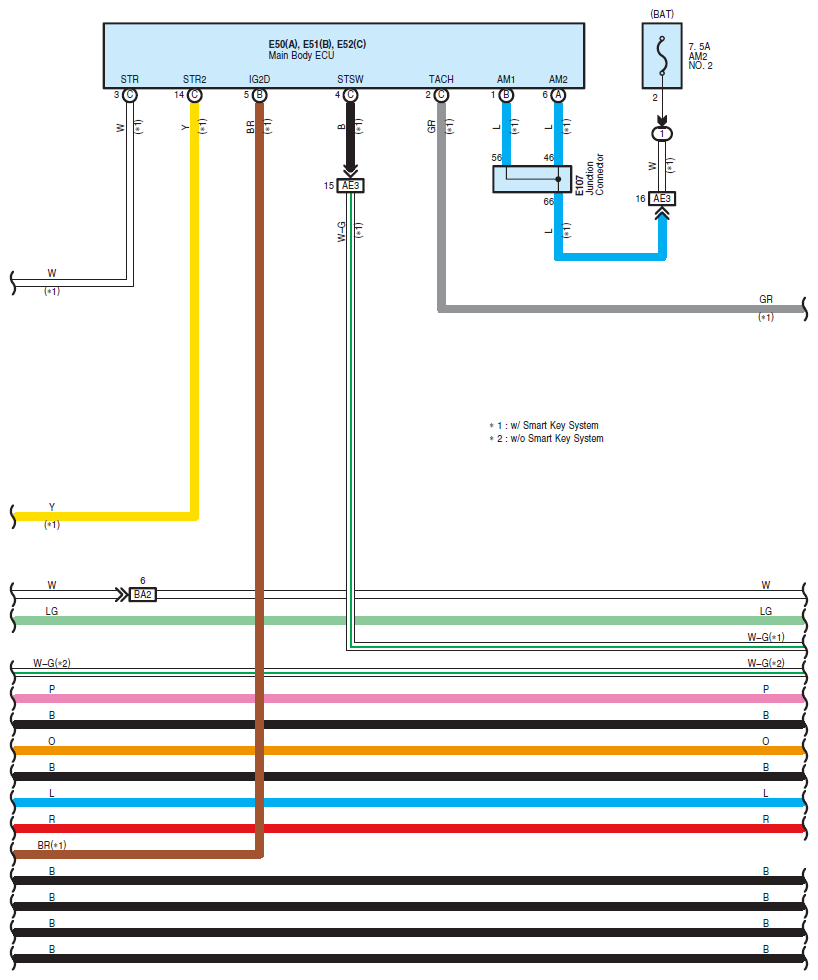

Fig 4: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (4 Of 12)

G07604914

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

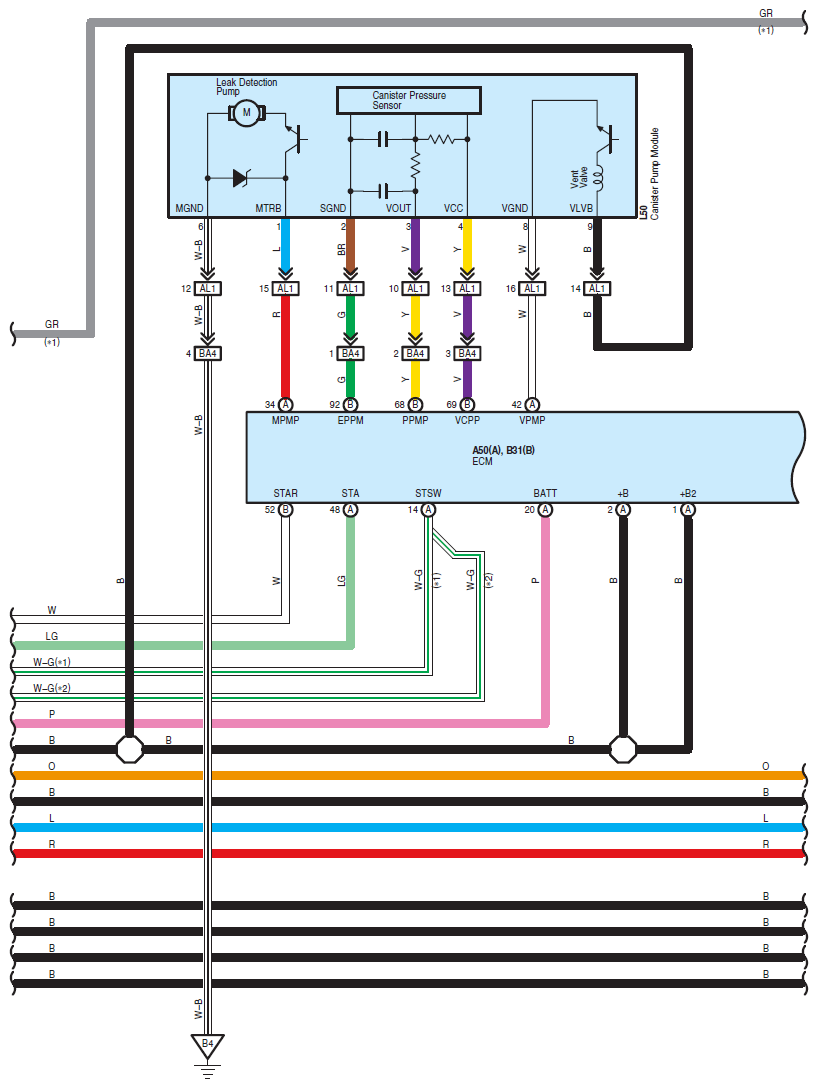

Fig 5: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (5 Of 12)

G07604915

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

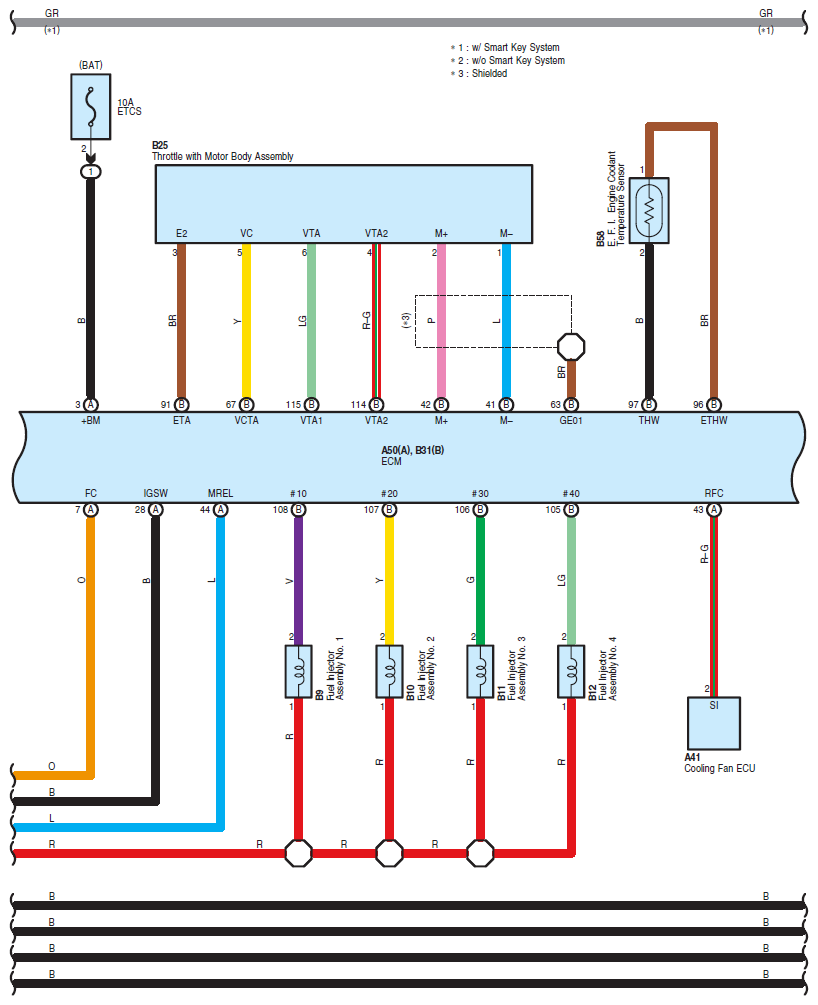

Fig 6: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (6 Of 12)

G07604916

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (7 Of 12)

G07604917

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

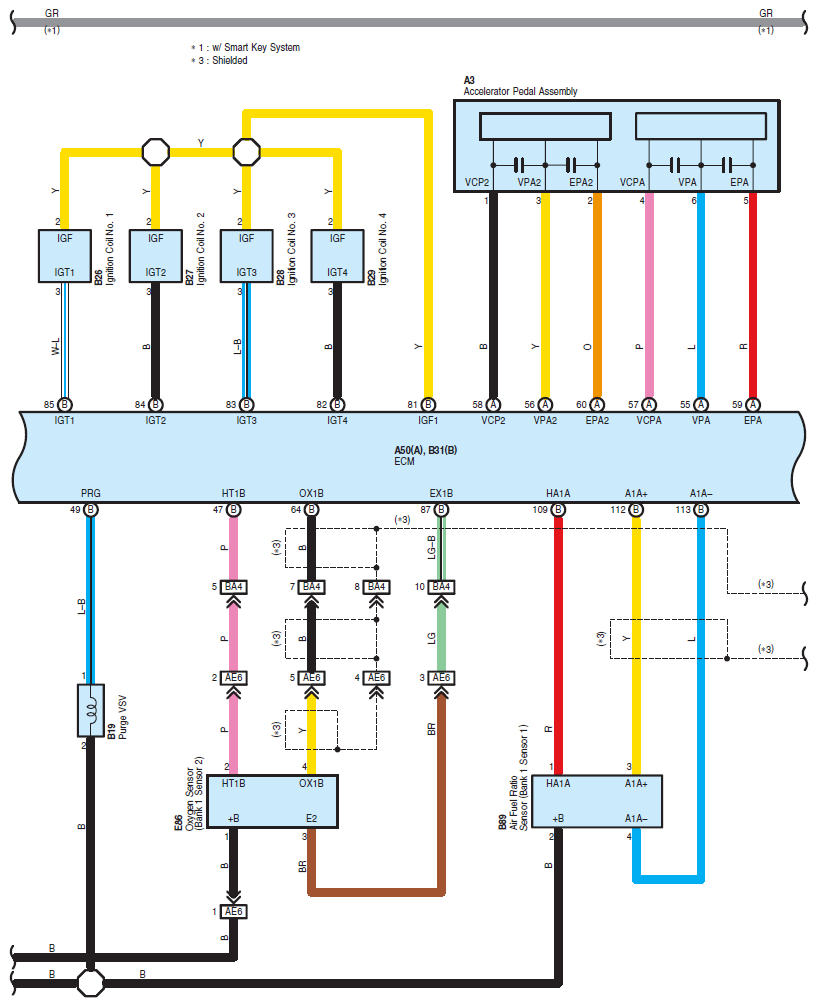

Fig 8: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (8 Of 12)

G07604918

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

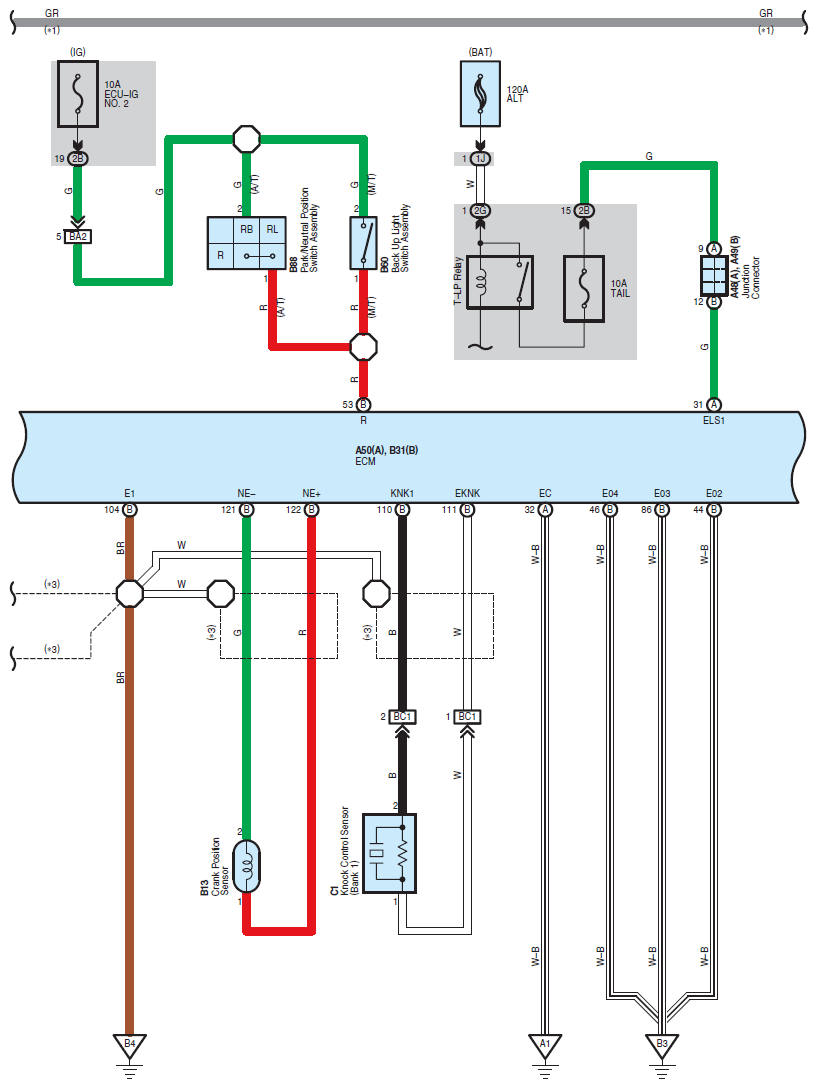

Fig 9: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (9 Of 12)

G07604919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

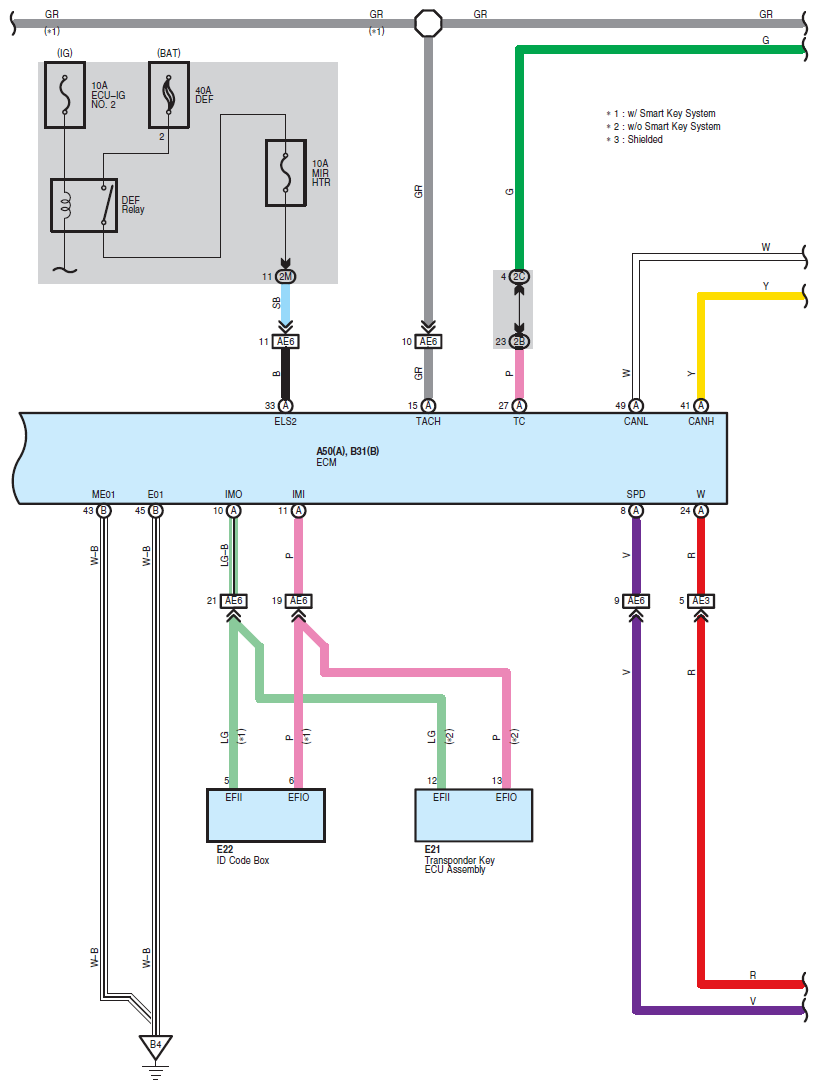

Fig 10: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (10 Of 12)

G07604920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

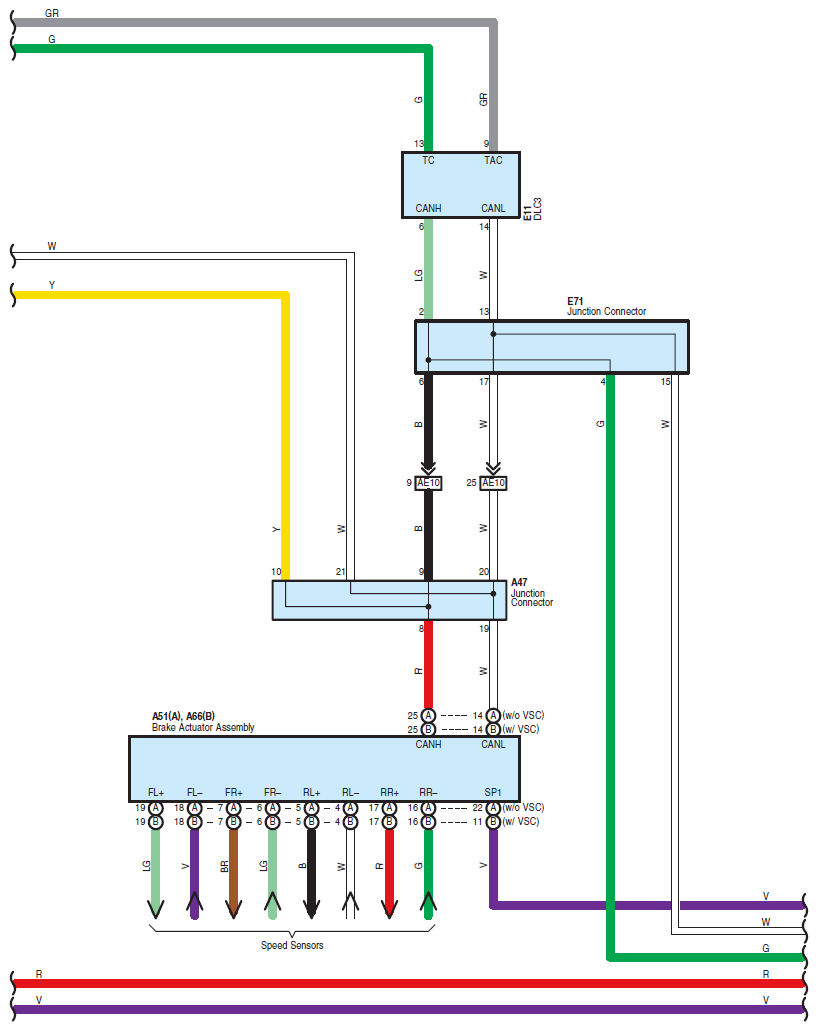

Fig 11: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (11 Of 12)

G07604921

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

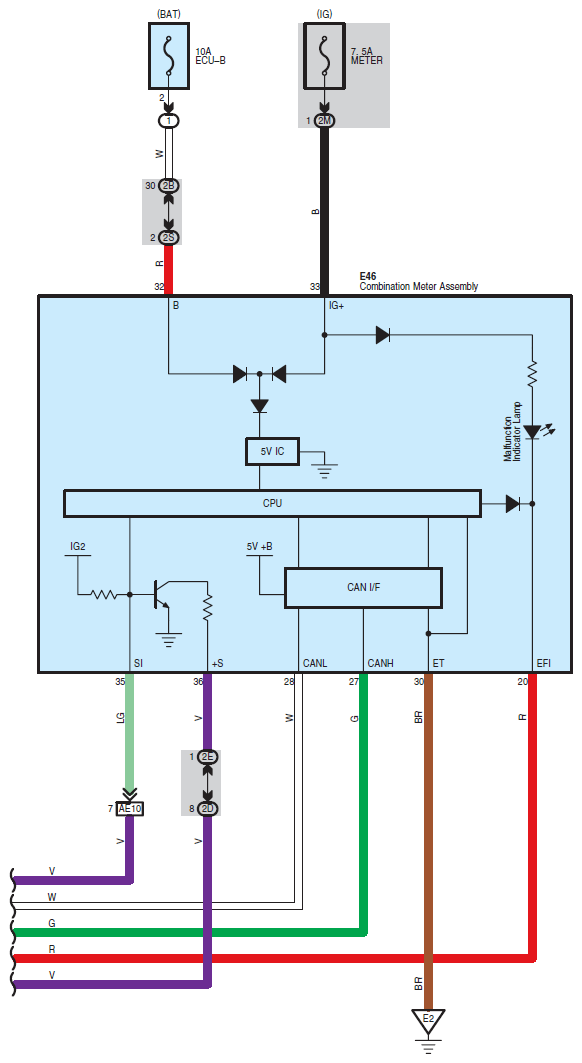

Fig 12: Engine Control For 2AZ-FE (Except TMC Made) - Circuit Diagram (12 Of 12)

G07604922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
