Air Conditioning Unit: Components

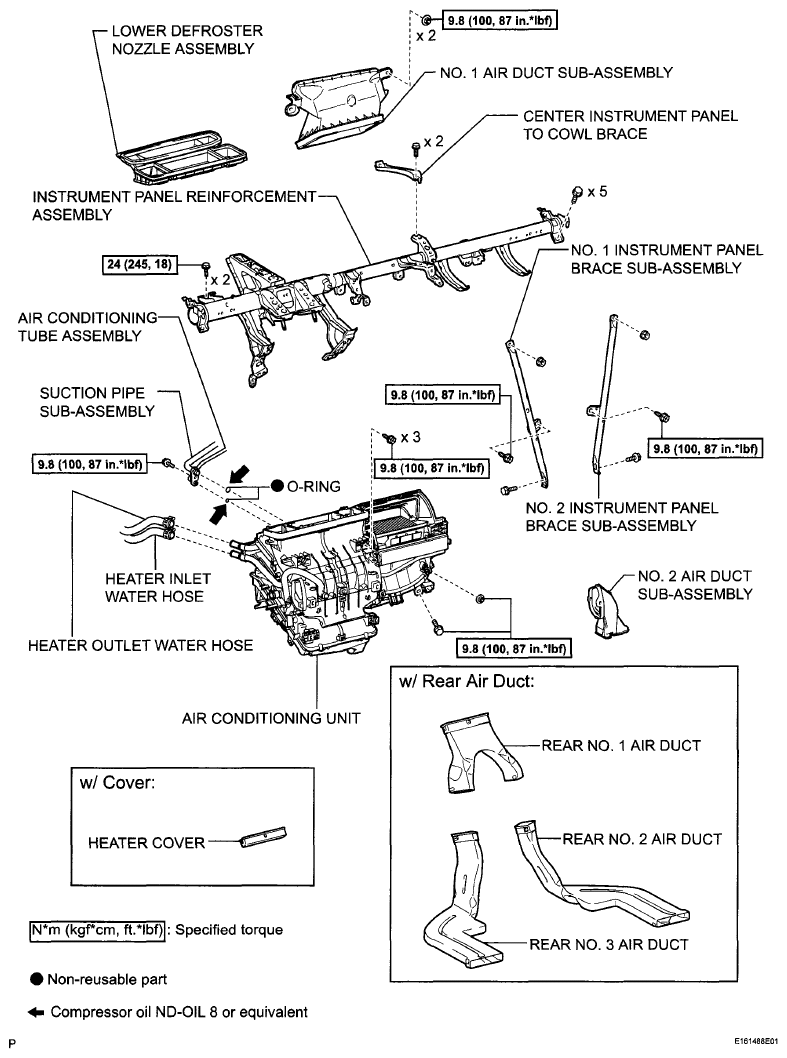

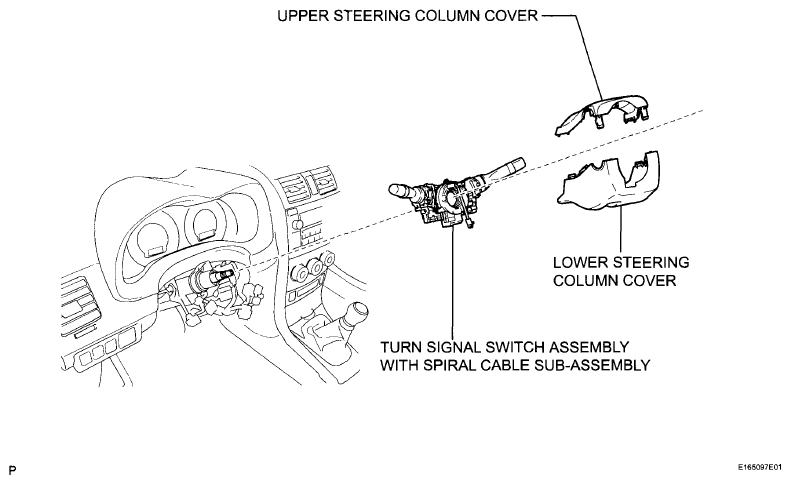

Fig 1: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

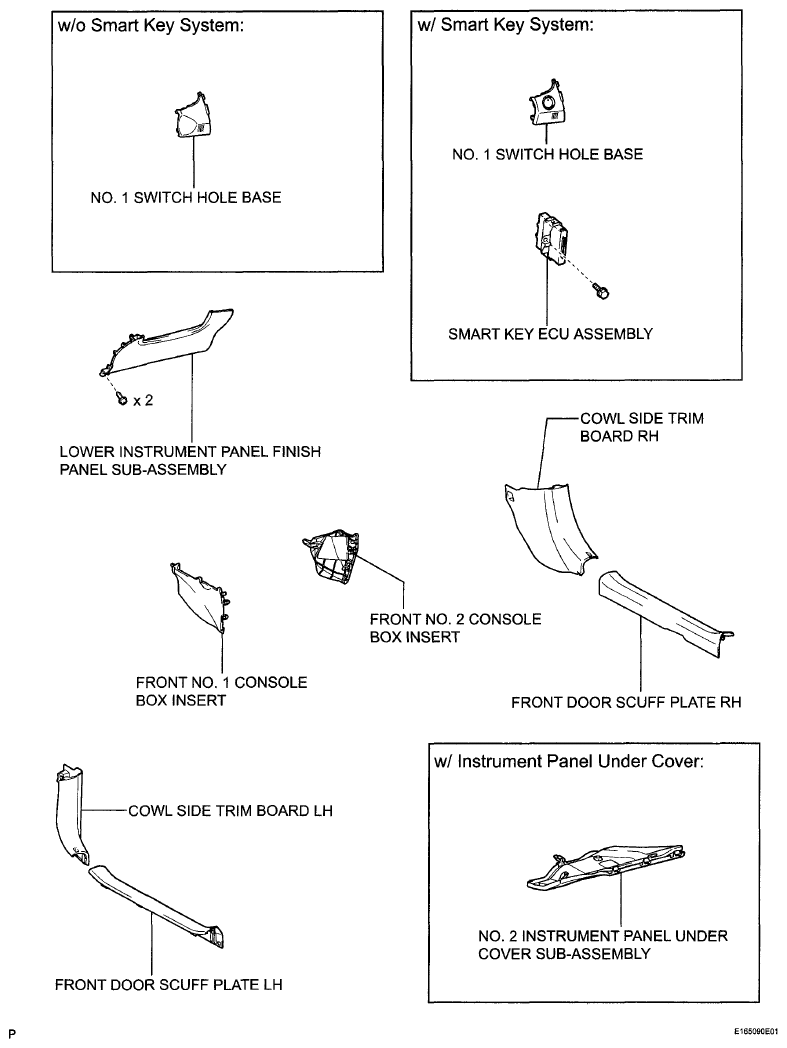

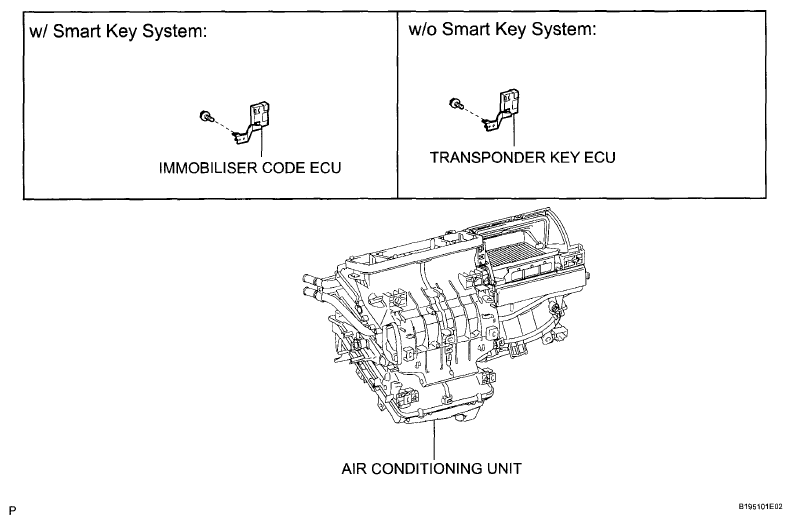

Fig 2: Solar Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

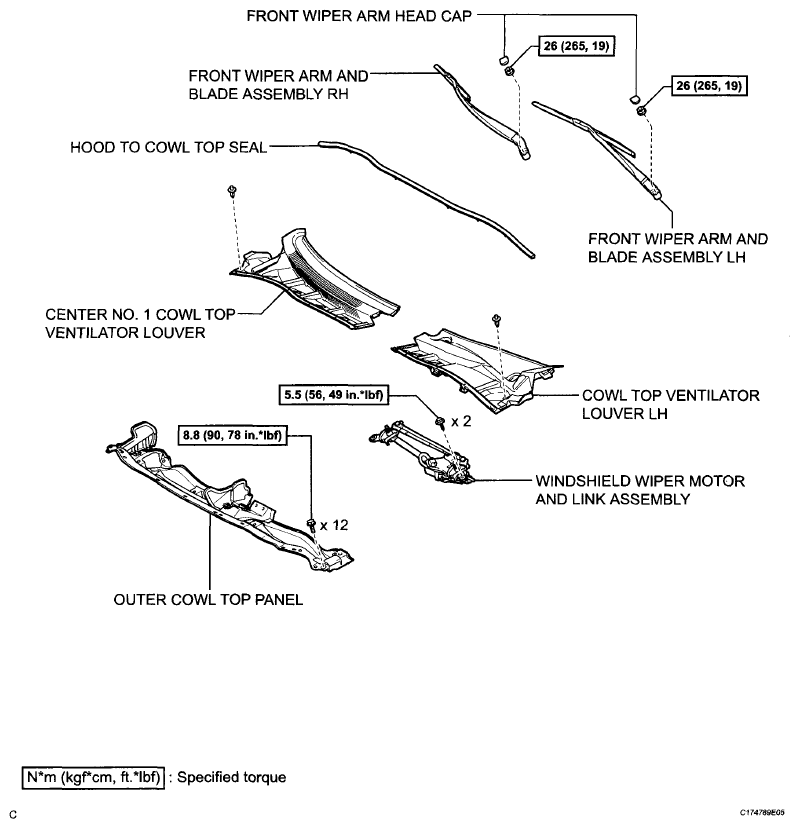

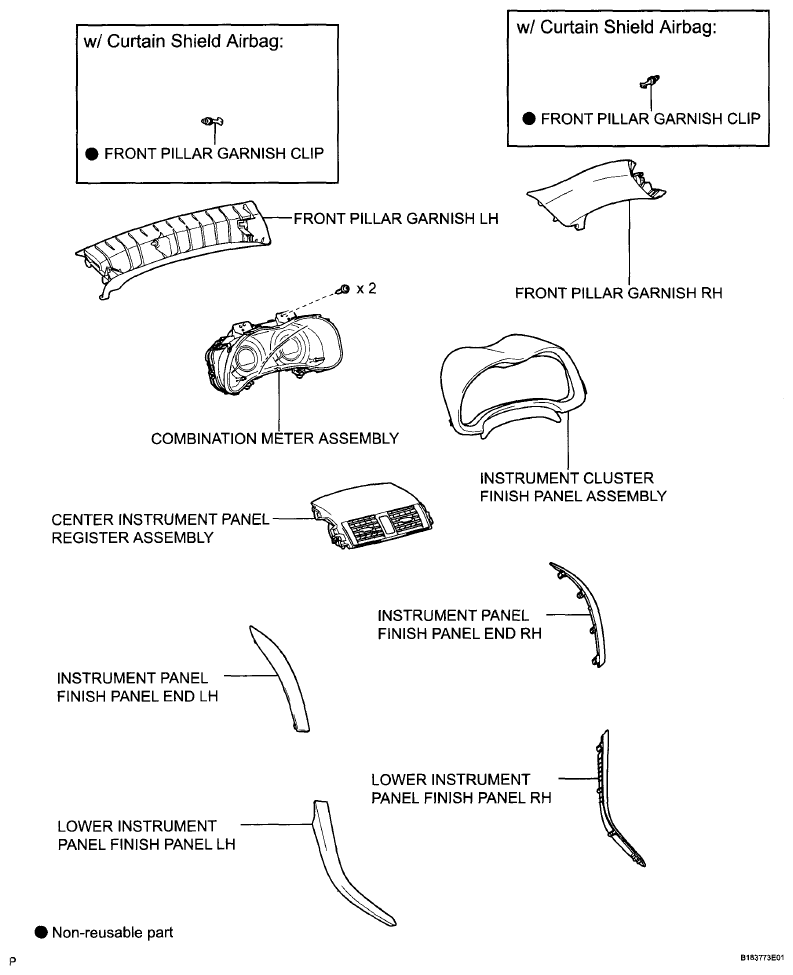

Fig 3: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

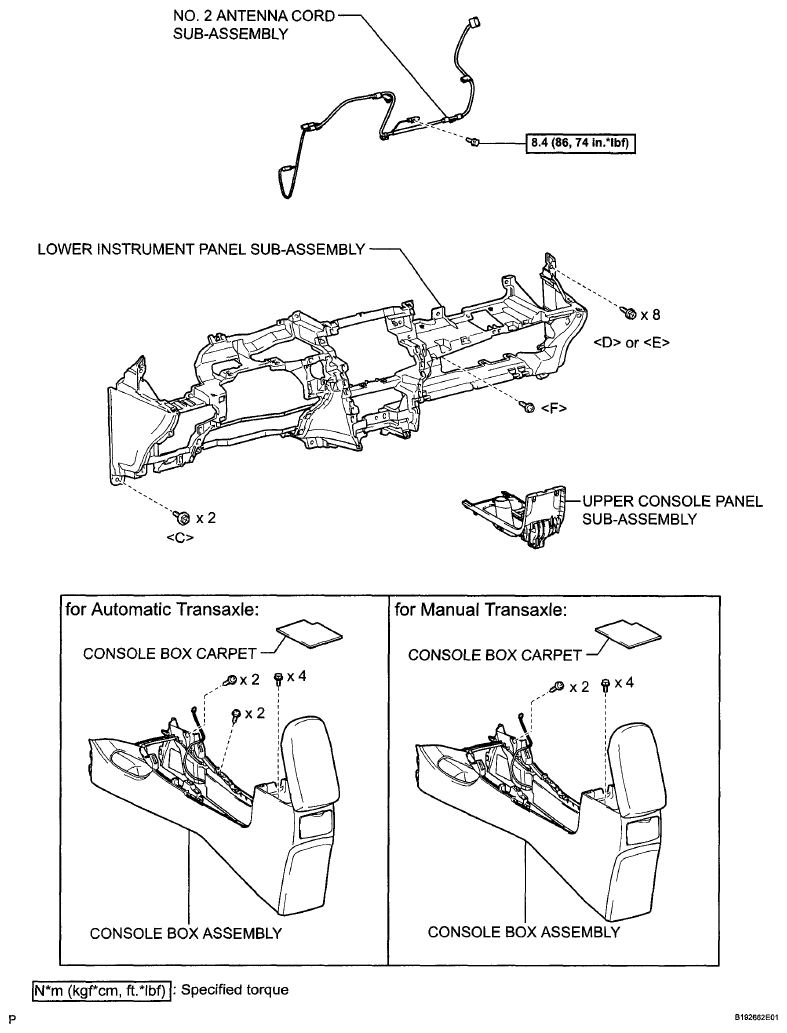

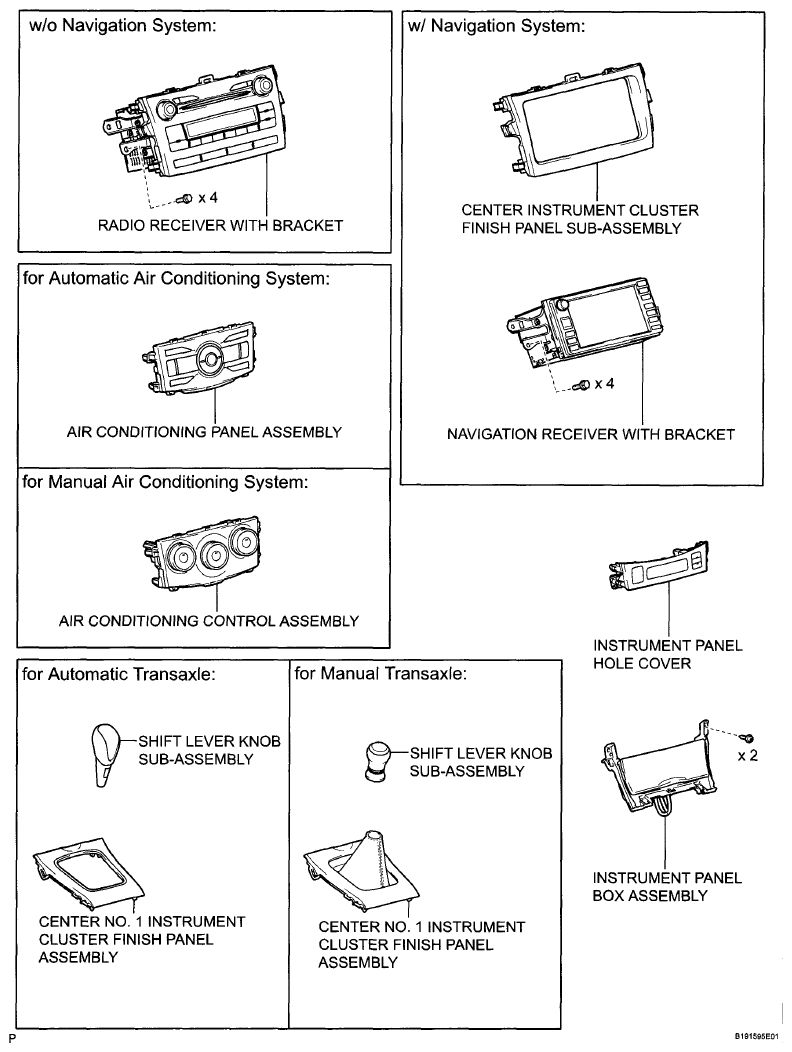

Fig 4: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

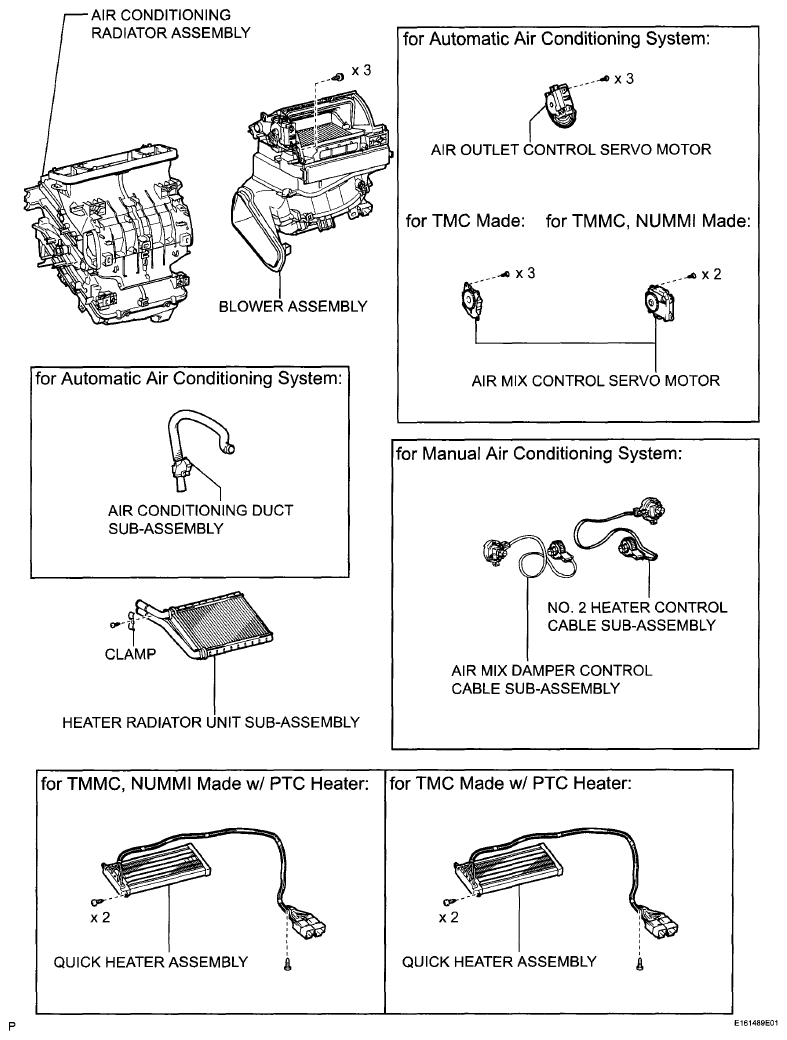

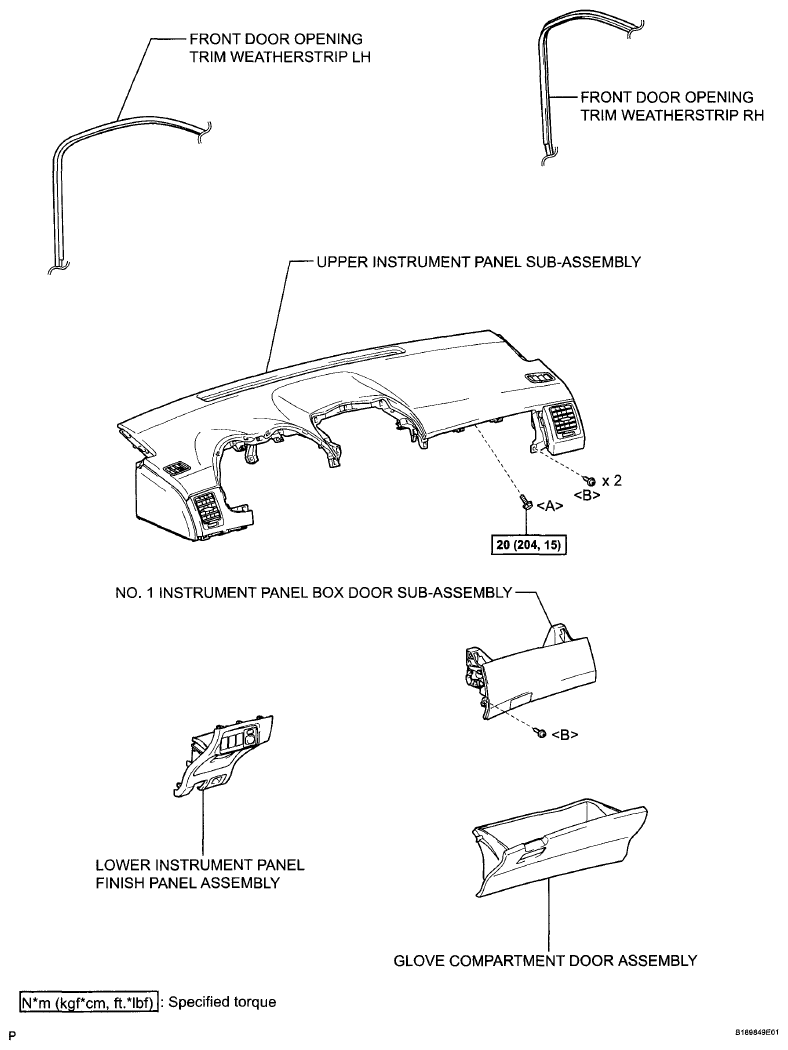

Fig 5: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

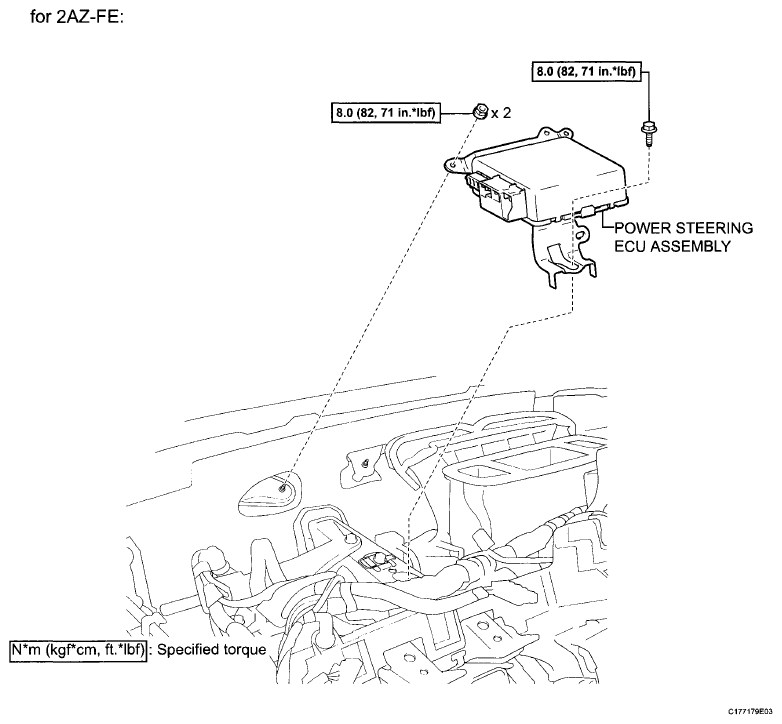

Fig 6: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

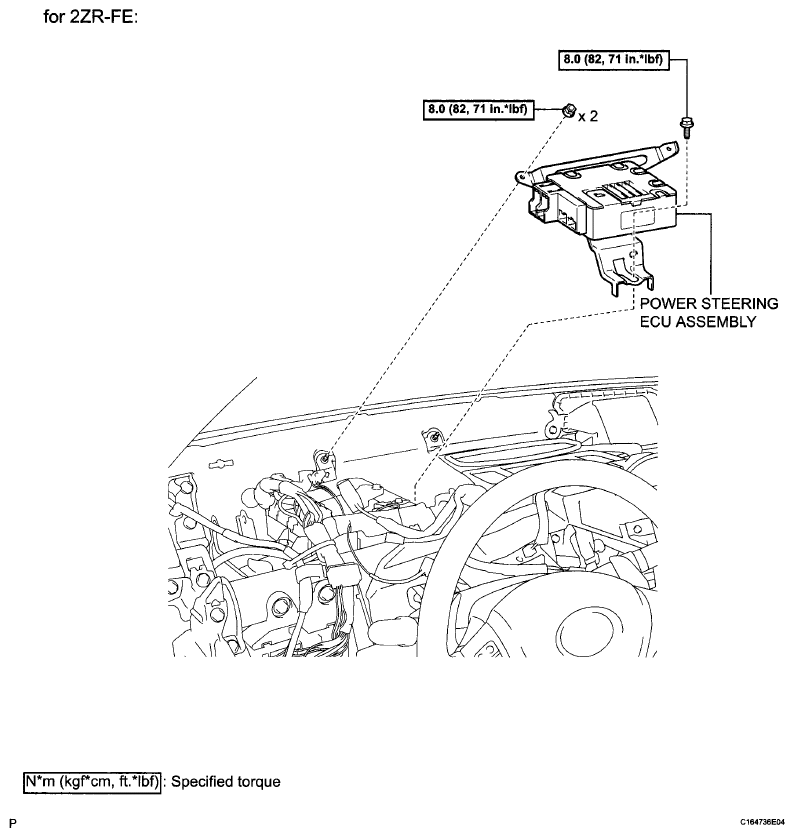

Fig 7: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

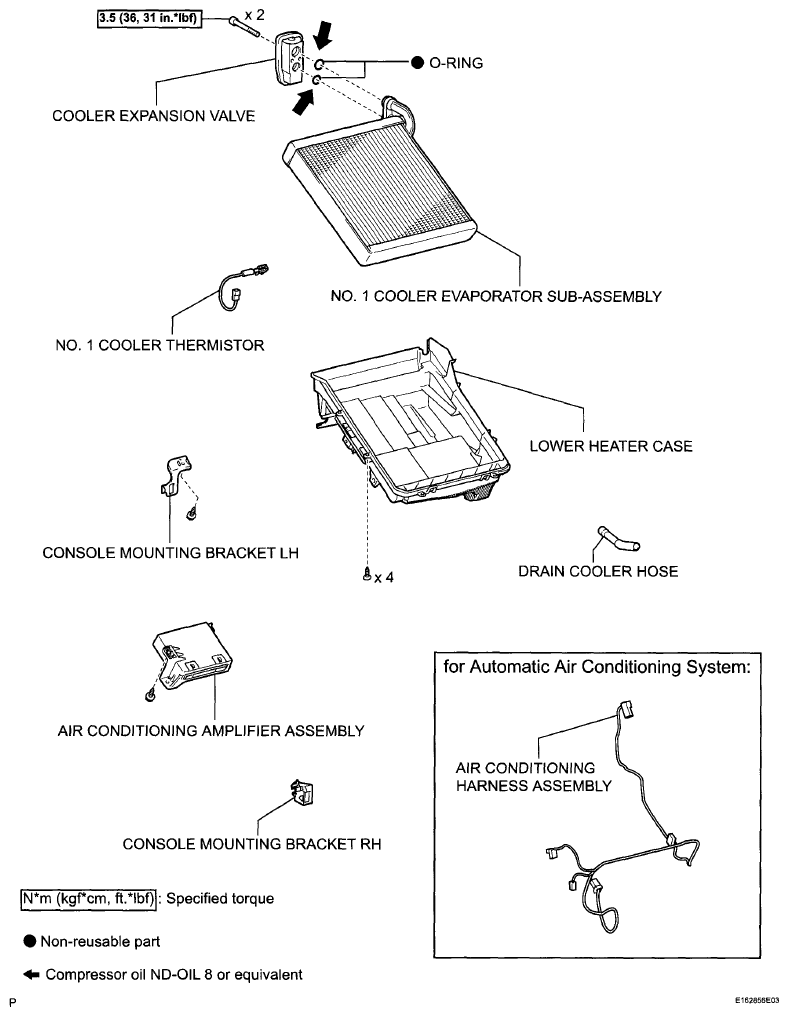

Fig 8: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (9 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (10 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (11 Of 13)

Fig 12: Air Conditioning Unit Replacement Components With Torque Specification (12 Of 15)

Fig 13: Air Conditioning Unit Replacement Components With Torque Specification (13 Of 15)

Fig 14: Air Conditioning Unit Replacement Components With Torque Specification (14 Of 15)

Fig 15: Air Conditioning Unit Replacement Components With Torque Specification (15 Of 15)
