PTC Heater Assembly: Components

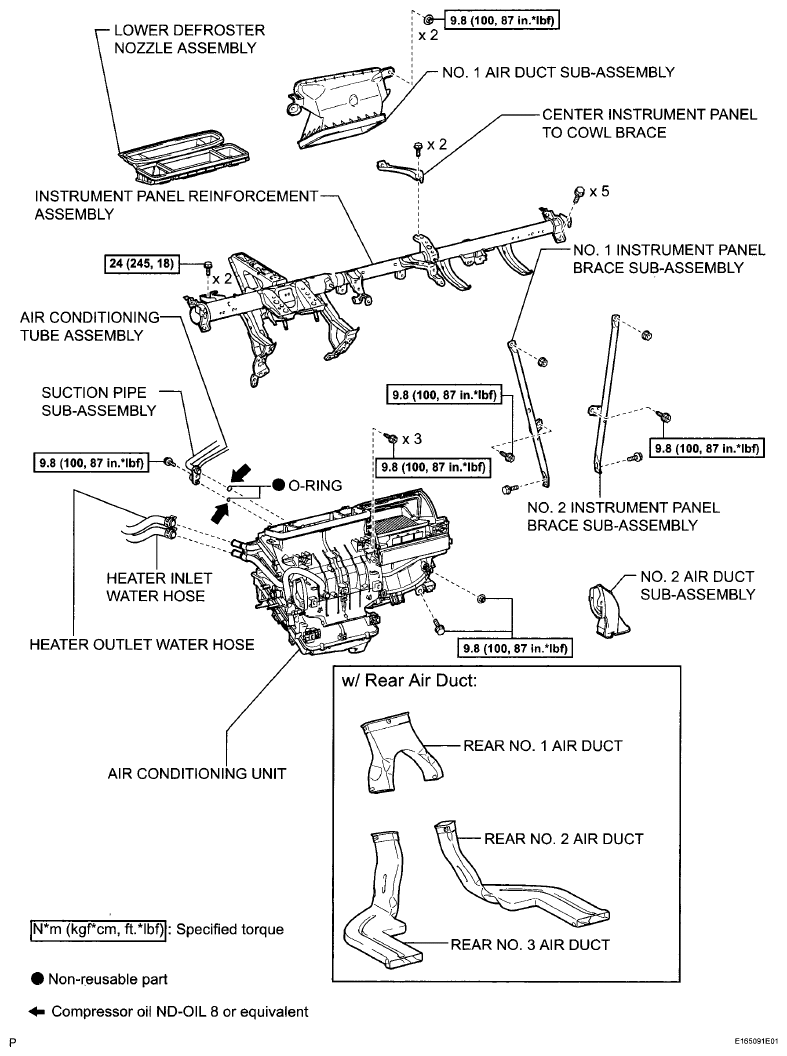

Fig 1: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

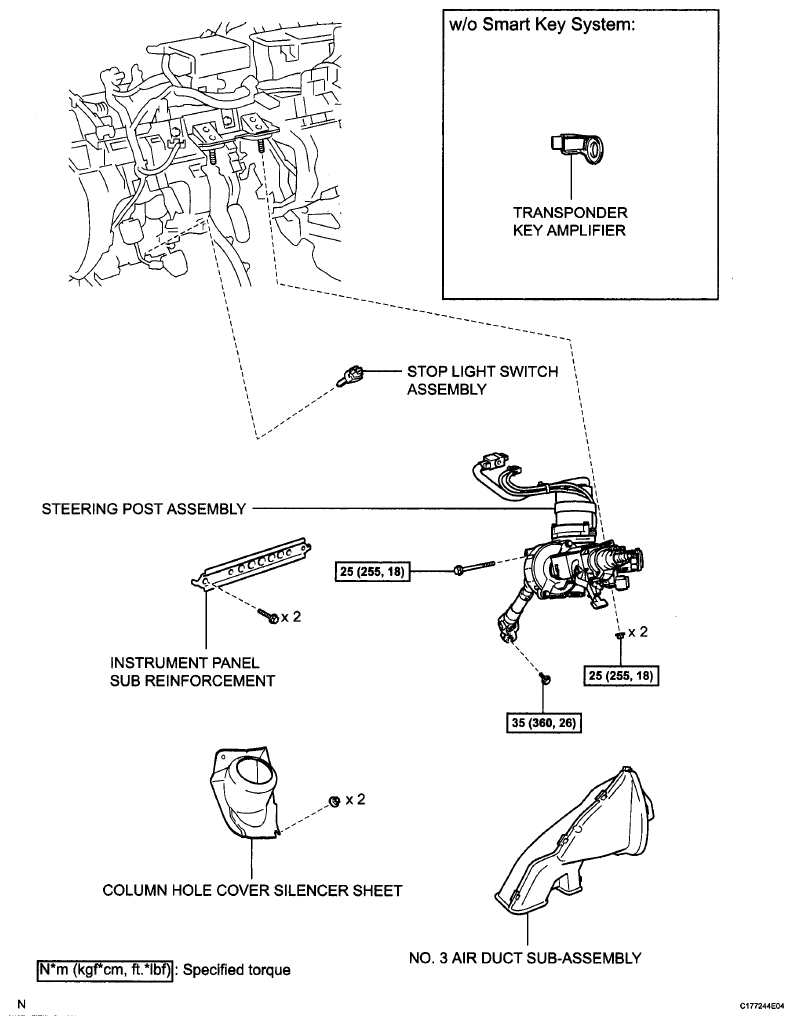

Fig 2: Solar Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

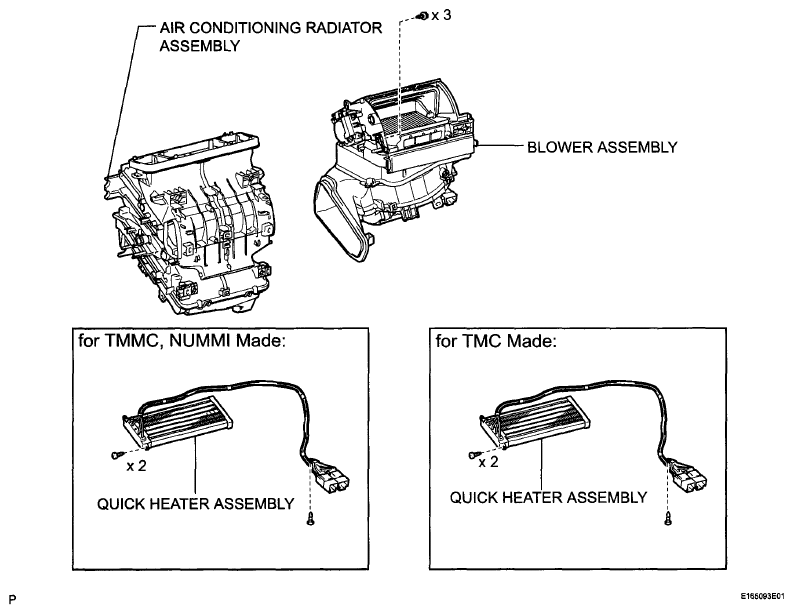

Fig 8: PTC Heater Assembly Replacement Components With Torque Specifications (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (9 Of 13)

Fig 10: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (10 Of 13)

Fig 11: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (11 Of 13)

Fig 12: PTC Heater Assembly Replacement Components With Torque Specifications (12 Of 13)

Fig 13: PTC Heater Assembly Replacement Components With Torque Specifications (13 Of 13)
