Corolla XRS, Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Remote Control Mirror (TMC Made)
›
Notes
Remote Control Mirror (TMC Made): Notes

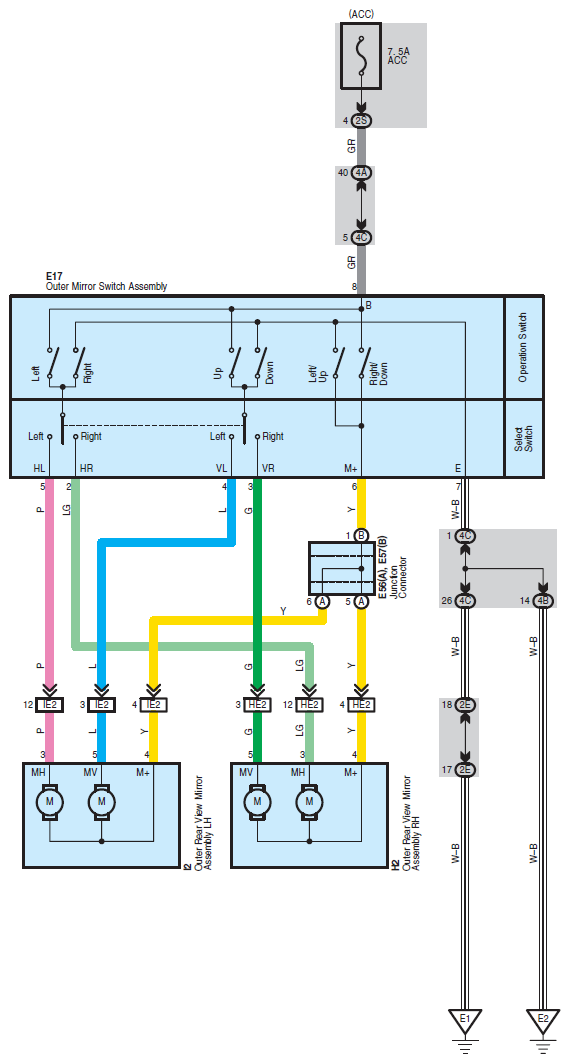

Fig 1: Remote Control Mirror (TMC Made) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
