Power Windows do not Operate at All: Wiring Diagram

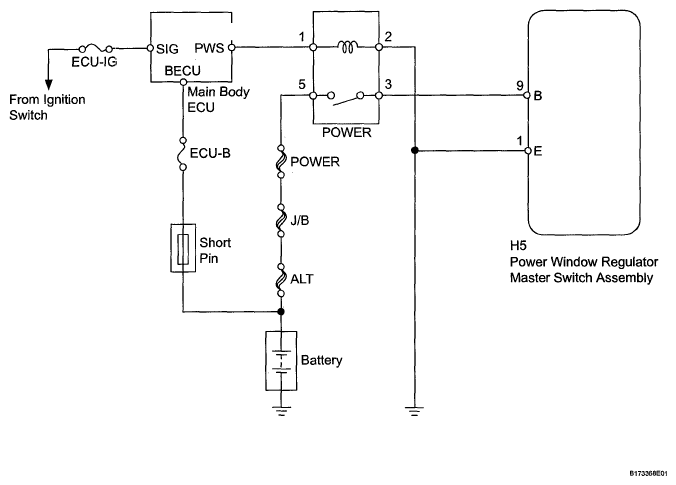

Fig 1: Power Windows Do Not Operate At All - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
