Parts Location

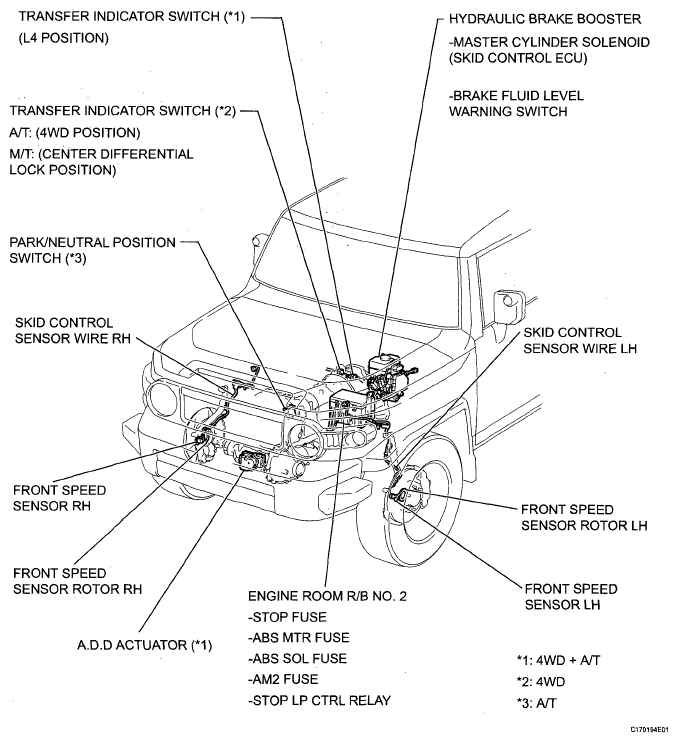

Fig 1: Identifying Vehicle Stability Control System Part Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

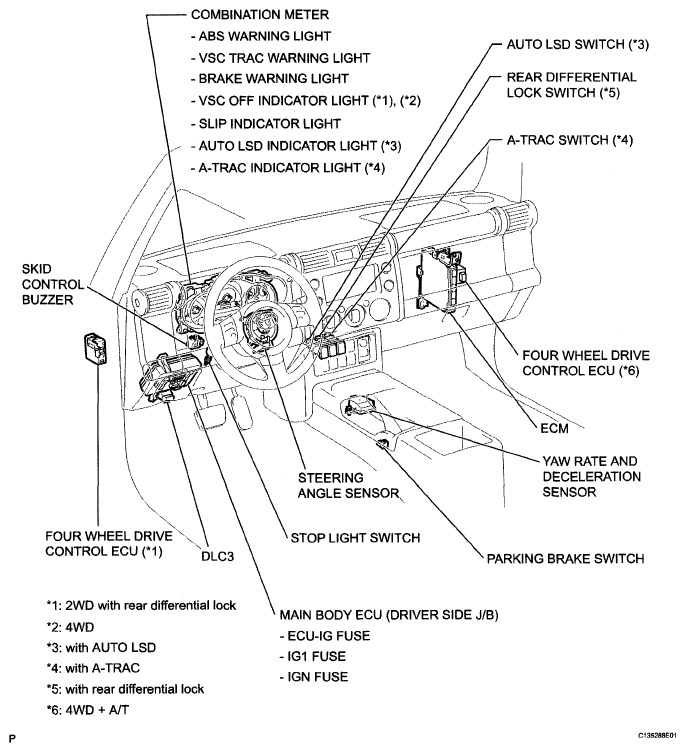

Fig 2: Identifying Vehicle Stability Control System Part Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

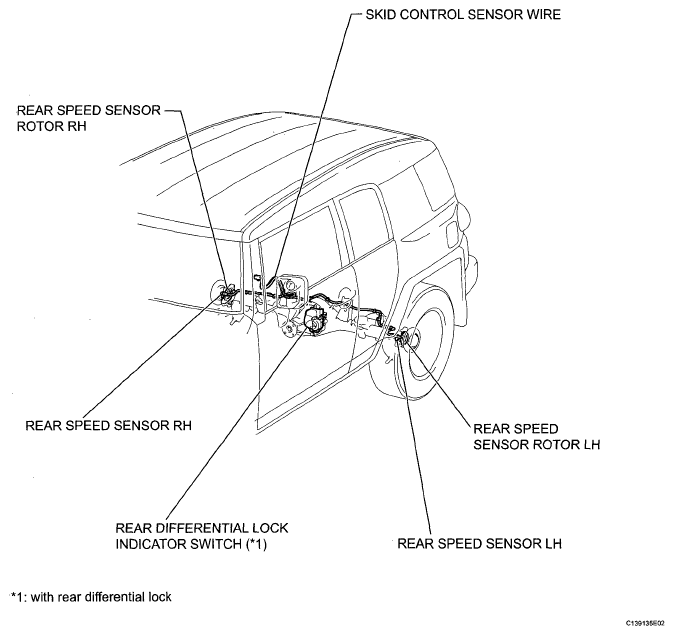

Fig 3: Identifying Vehicle Stability Control System Part Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
