Seat Belt Warning: Notes

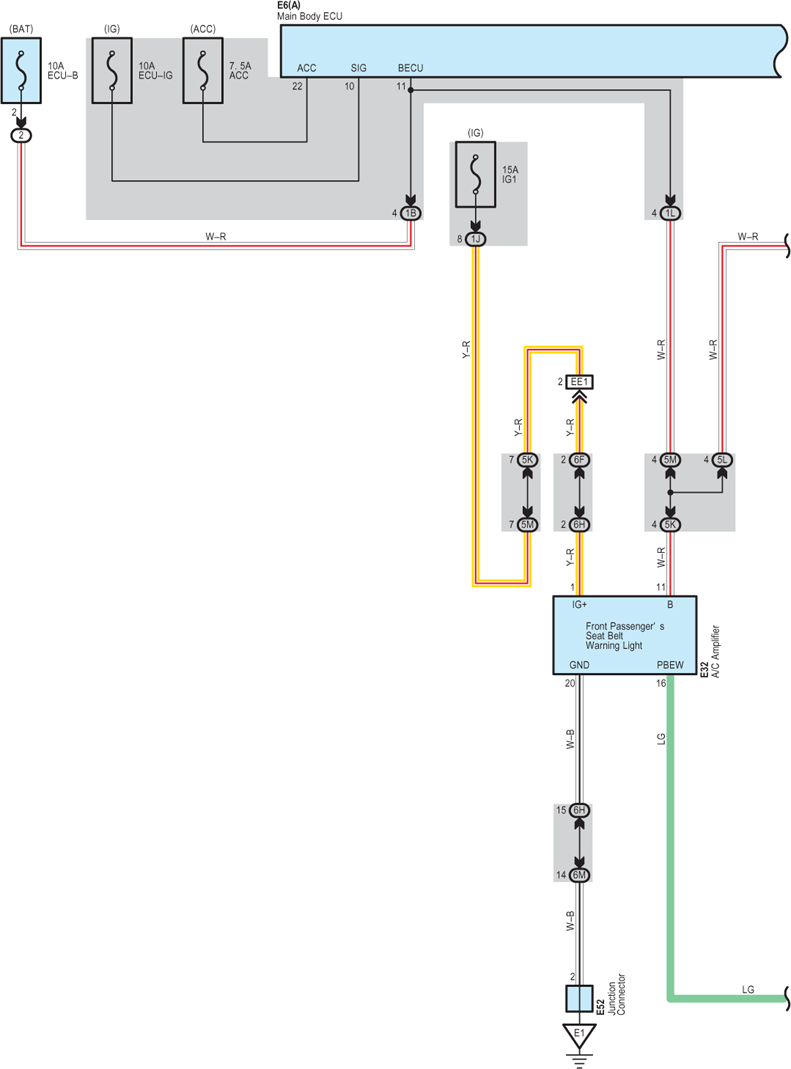

Fig 1: Seat Belt Warning - Circuit Diagram (1 Of 5)
G07606582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

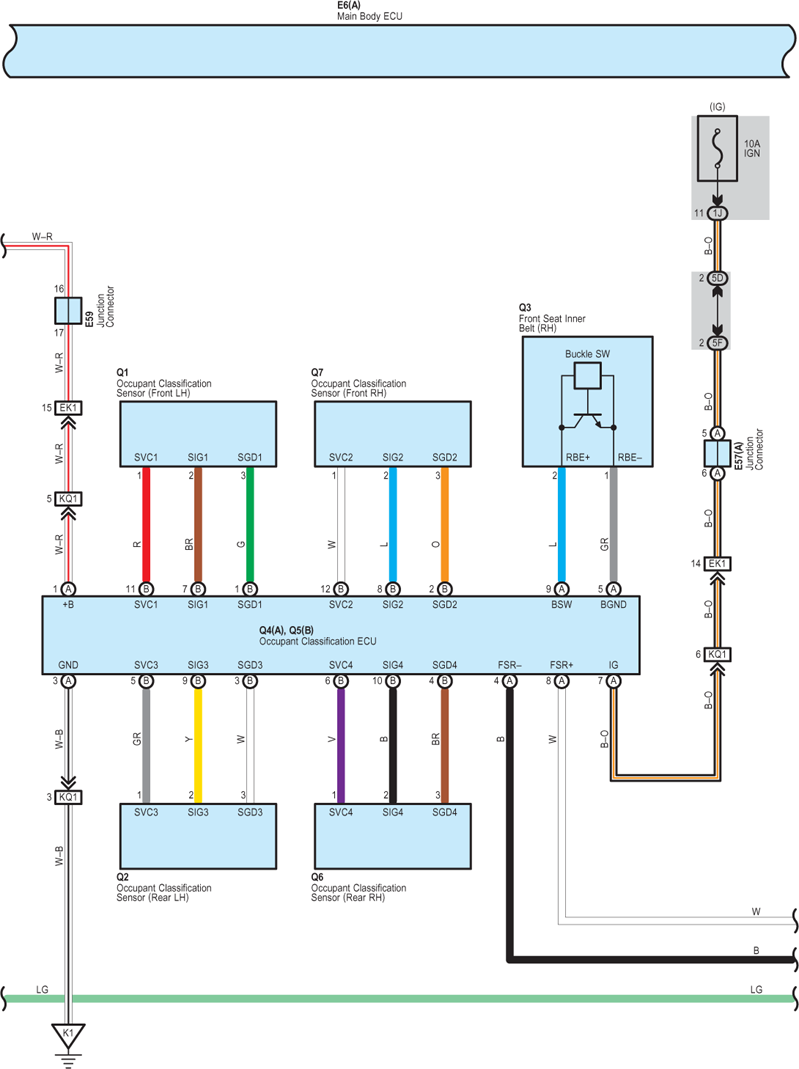

Fig 2: Seat Belt Warning - Circuit Diagram (2 Of 5)
G07606583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

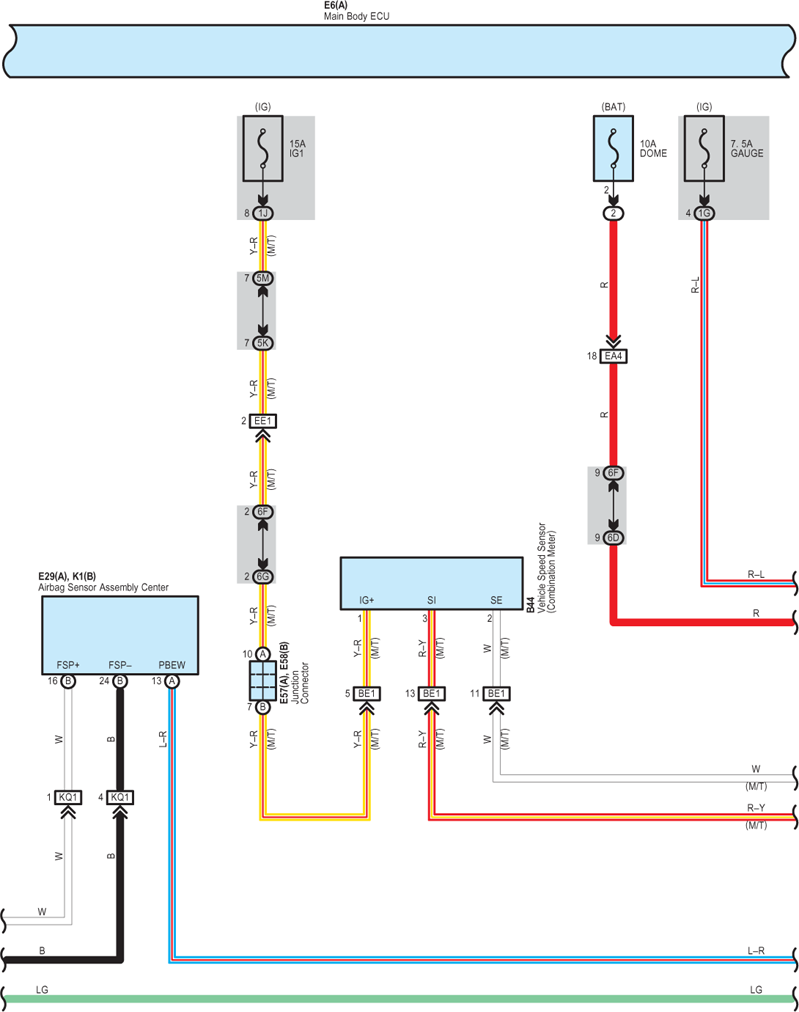

Fig 3: Seat Belt Warning - Circuit Diagram (3 Of 5)
G07606584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

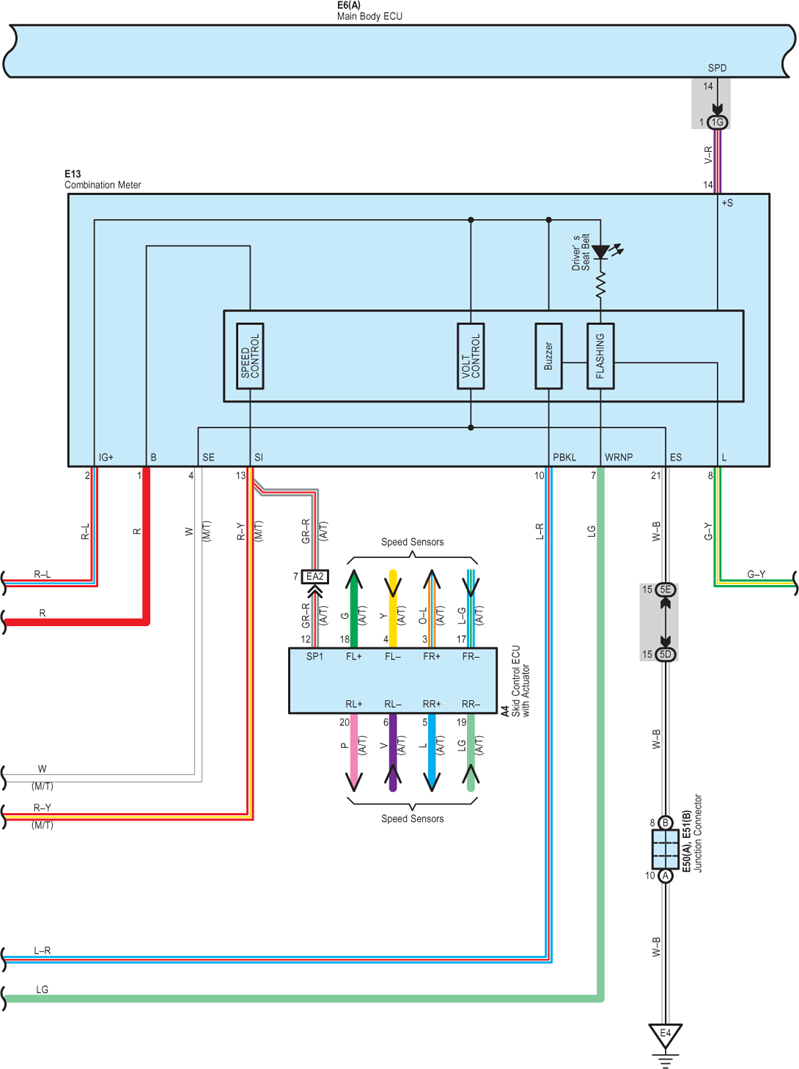

Fig 4: Seat Belt Warning - Circuit Diagram (4 Of 5)
G07606585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

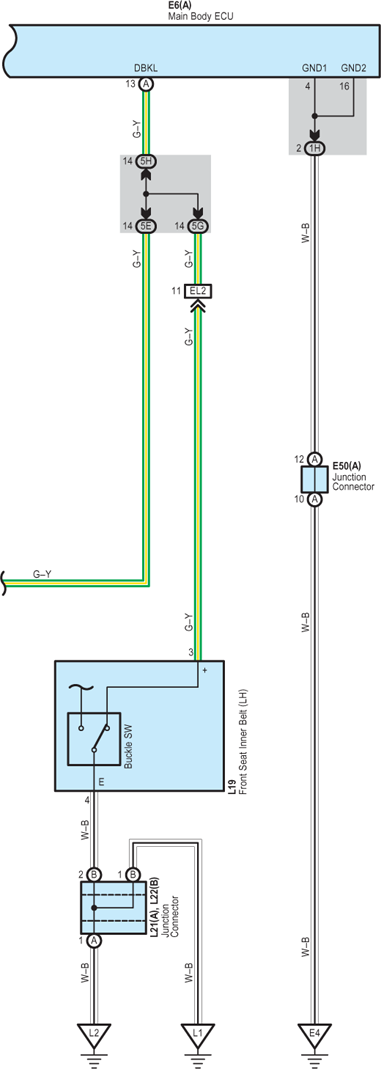

Fig 5: Seat Belt Warning - Circuit Diagram (5 Of 5)
G07606586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
