Engine Unit: Components

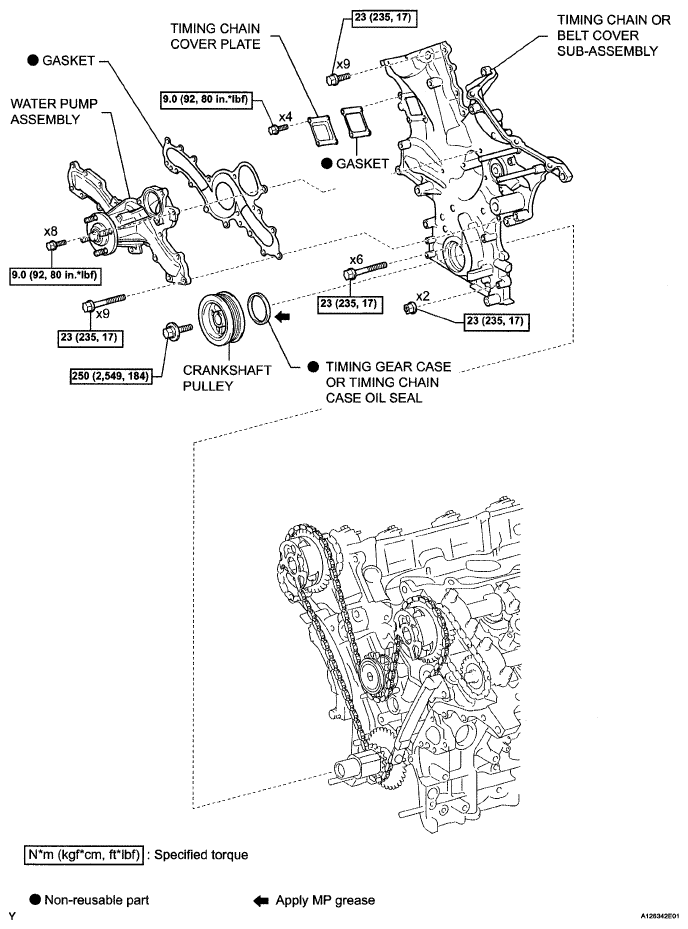

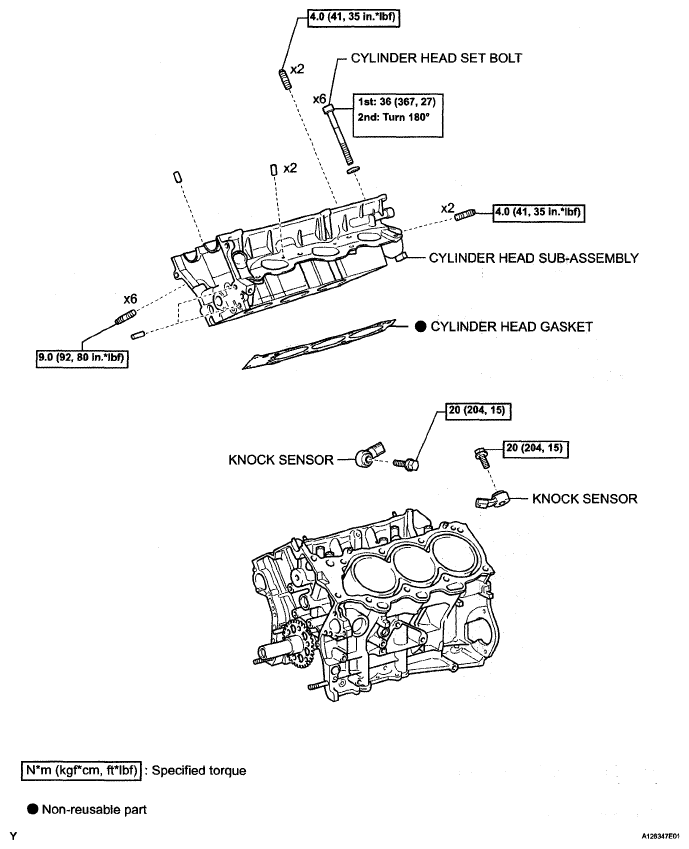

Fig 1: Engine Unit Exploded View With Torque Specifications (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

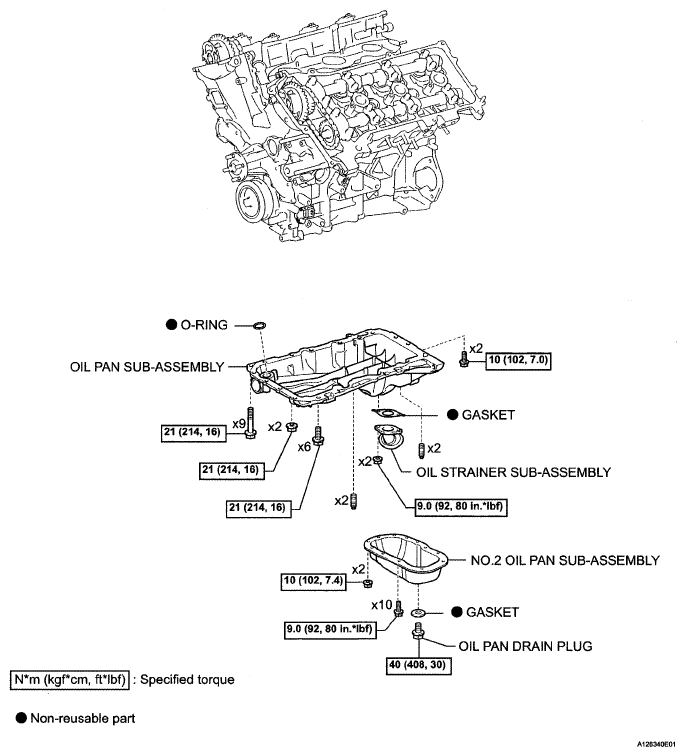

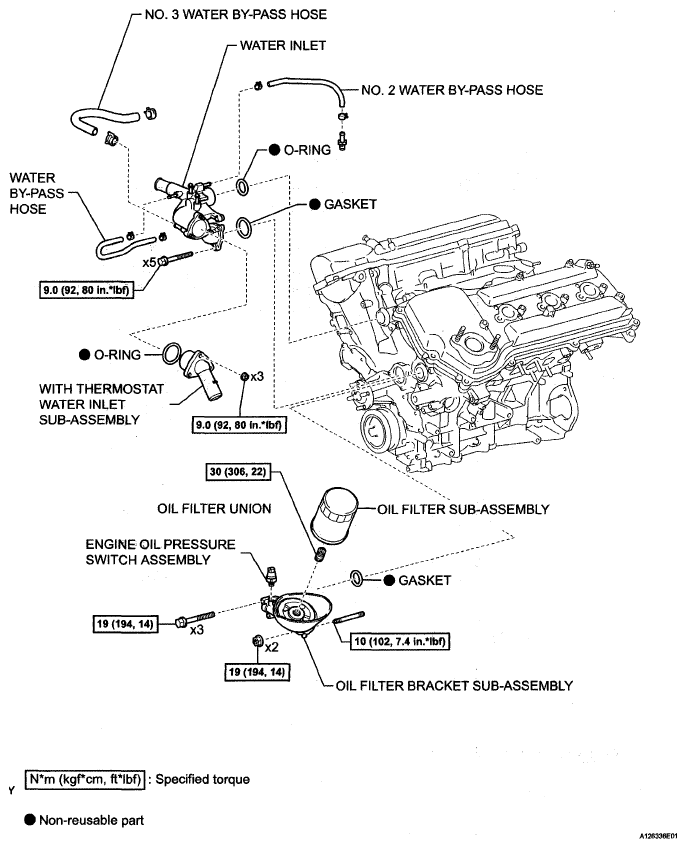

Fig 2: Engine Unit Exploded View With Torque Specifications (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

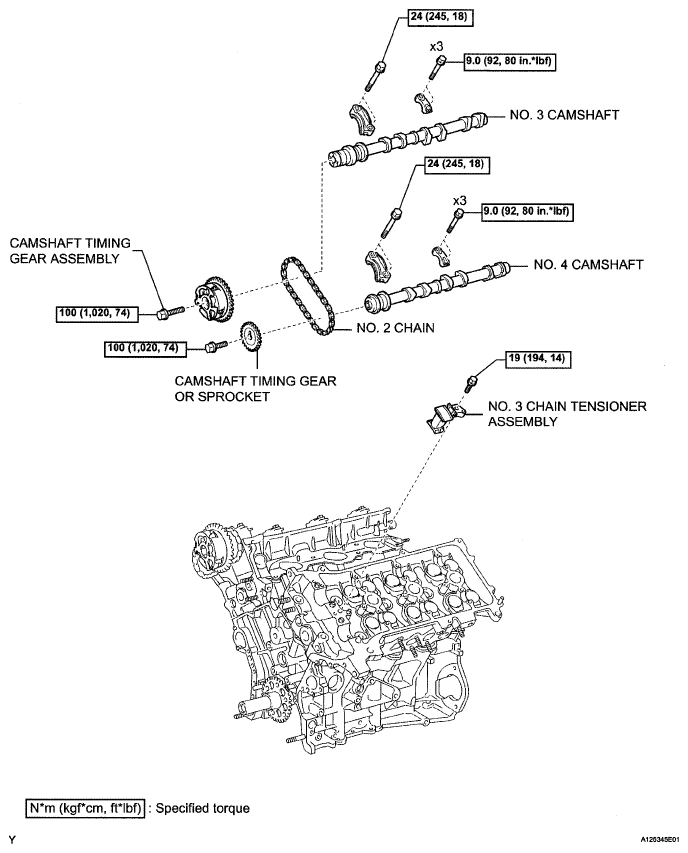

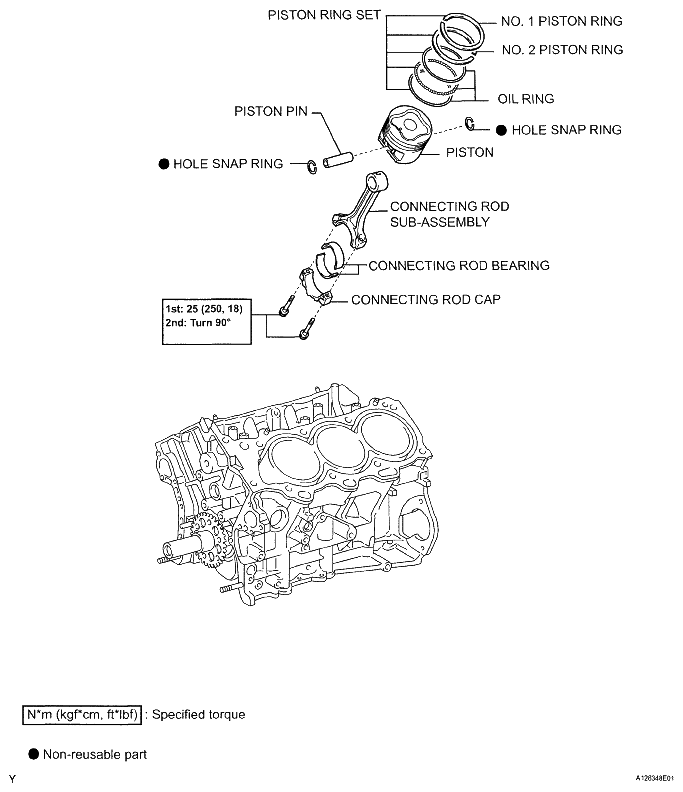

Fig 3: Engine Unit Exploded View With Torque Specifications (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

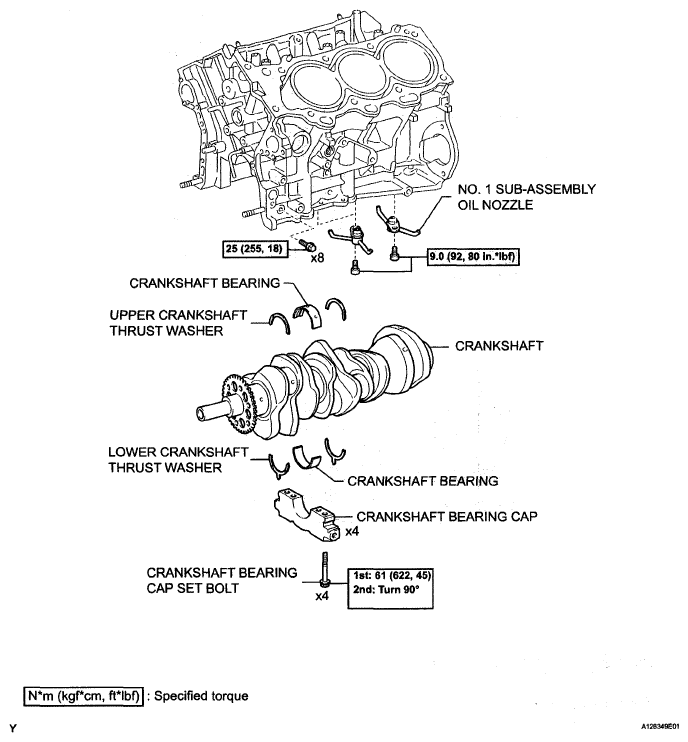

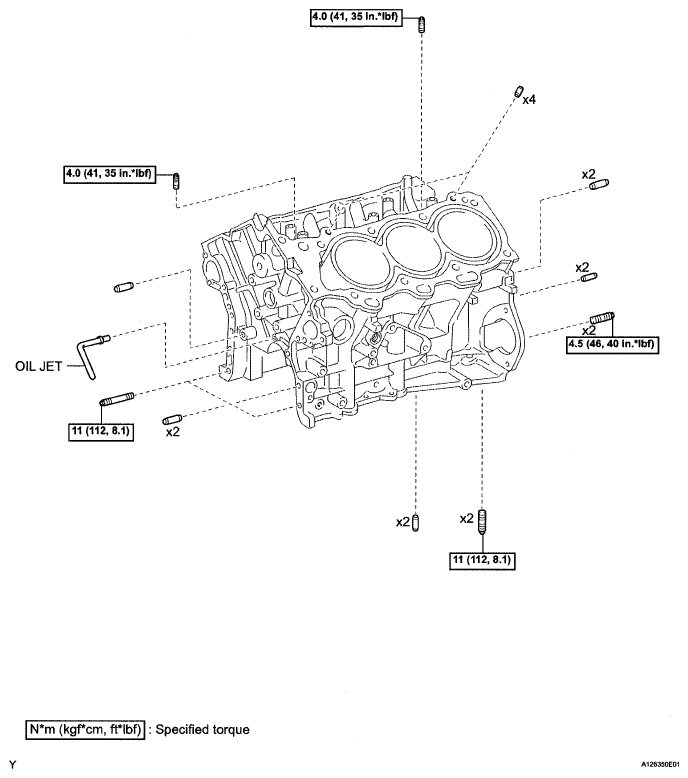

Fig 4: Engine Unit Exploded View With Torque Specifications (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

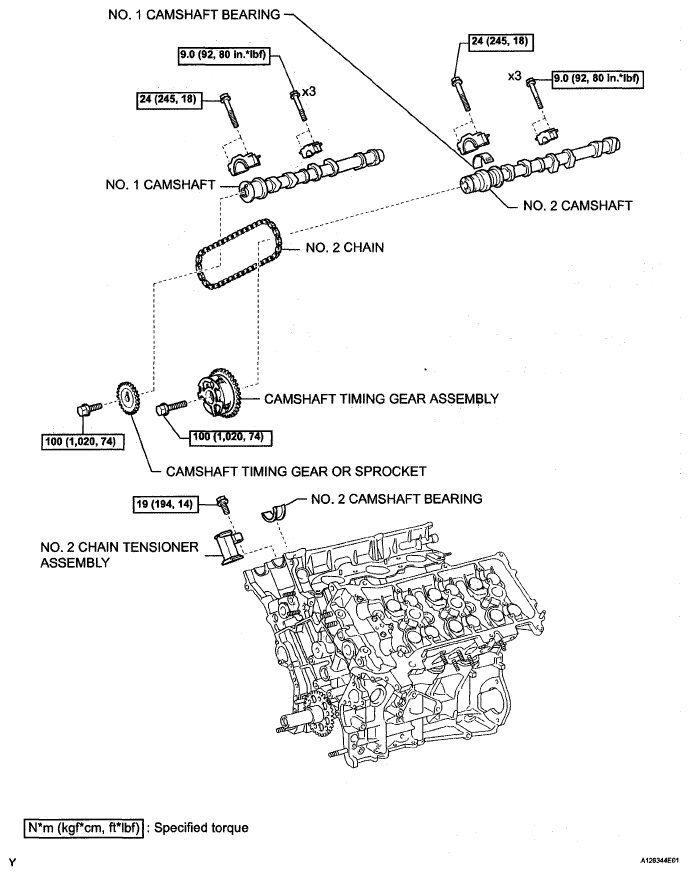

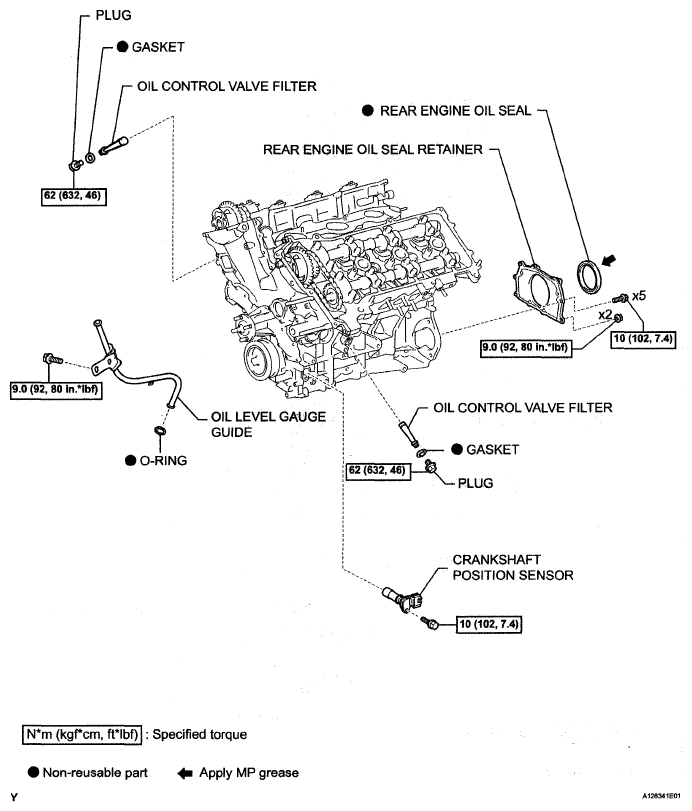

Fig 5: Engine Unit Exploded View With Torque Specifications (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

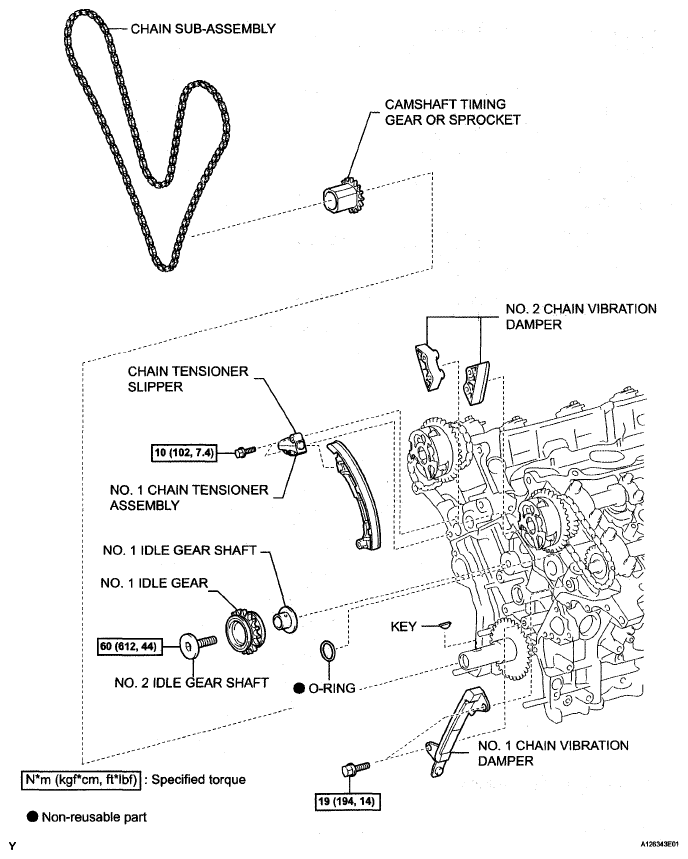

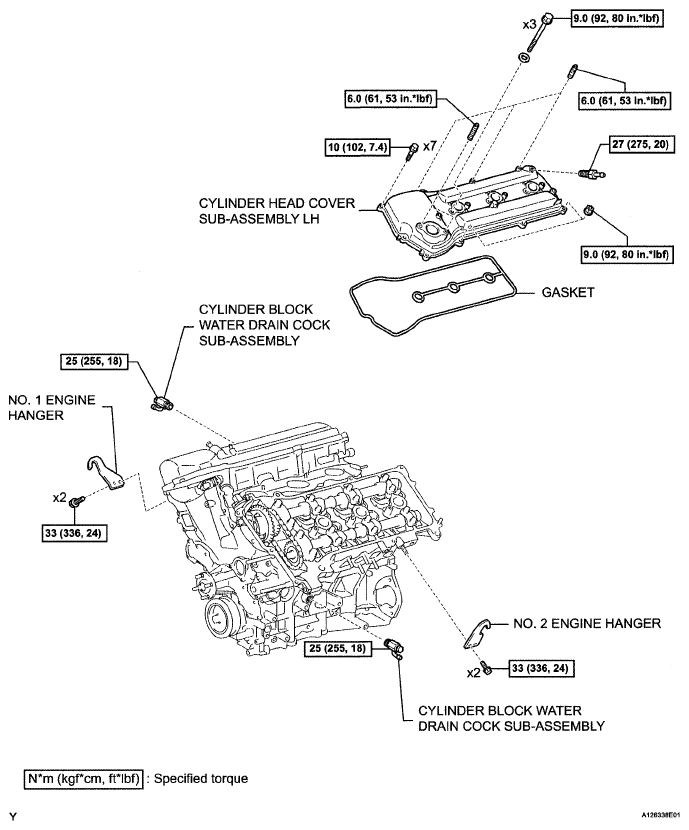

Fig 6: Engine Unit Exploded View With Torque Specifications (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

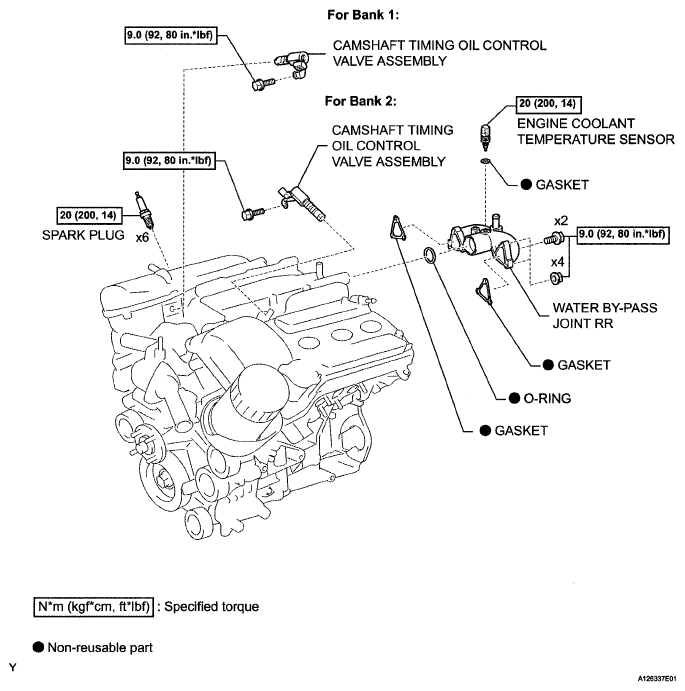

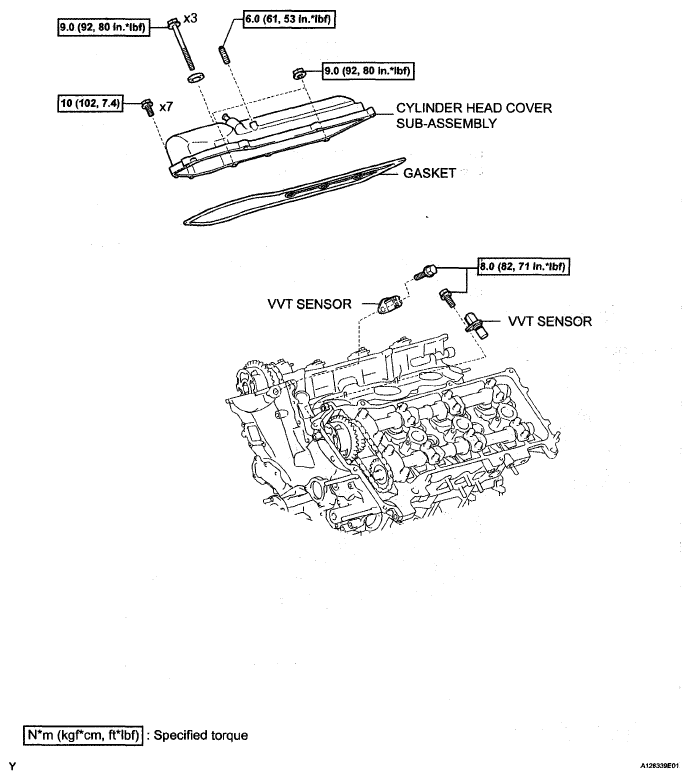

Fig 7: Engine Unit Exploded View With Torque Specifications (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

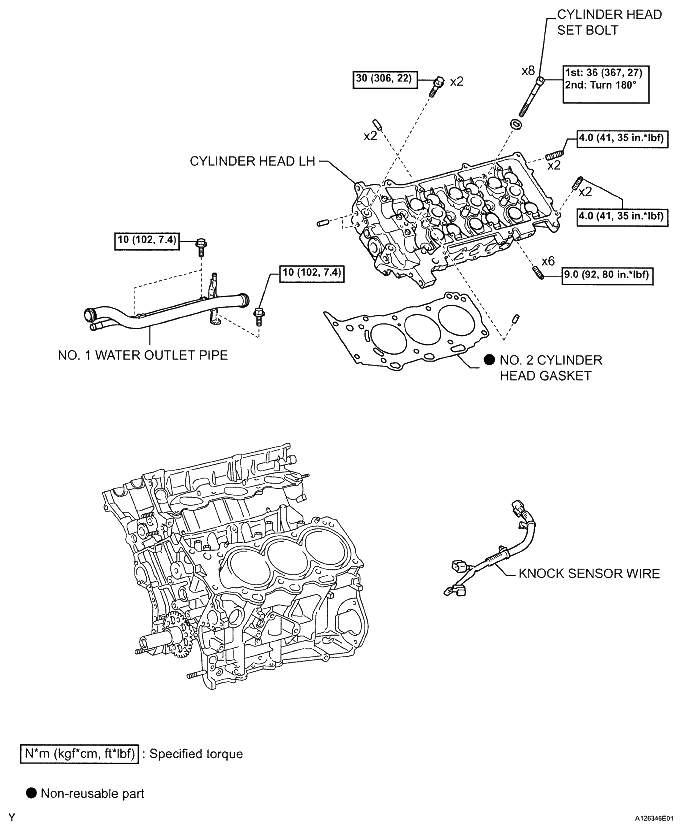

Fig 8: Engine Unit Exploded View With Torque Specifications (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Unit Exploded View With Torque Specifications (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Unit Exploded View With Torque Specifications (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Unit Exploded View With Torque Specifications (11 Of 15)

Fig 12: Engine Unit Exploded View With Torque Specifications (12 Of 15)

Fig 13: Engine Unit Exploded View With Torque Specifications (13 Of 15)

Fig 14: Engine Unit Exploded View With Torque Specifications (14 Of 15)

Fig 15: Engine Unit Exploded View With Torque Specifications (15 Of 15)
