VSC Off Switch: Installation

INSTALL VSC OFF SWITCH
1. Engage the 2 claws and install the VSC off switch.
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System) (See INSTALLATION )
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for Automatic Air Conditioning System) (See INSTALLATION )
INSTALL COWL SIDE TRIM SUB-ASSEMBLY (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

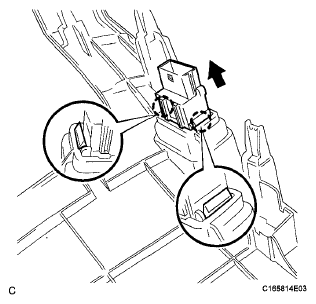

Fig 1: Installing VSC OFF Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected. (See INITIALIZATION )
CHECK FOR WARNING LIGHT AND INDICATOR LIGHT
HINT:

(See TEST MODE PROCEDURE ).
