Diagnosis System

When troubleshooting a vehicle with the diagnosis system, the only difference from the usual troubleshooting procedure is connecting Techstream to the vehicle and reading various data output from the vehicle's skid control ECU.

The skid control ECU records DTCs when the computer detects a malfunction in the computer itself or in its circuits.

To check the DTCs, connect Techstream to the DLC3 on the vehicle. Techstream enables you to erase the DTCs, activate the various actuators, and check the Freeze Frame Data and Data List.

1. Check the battery voltage.

   Standard voltage:

   11 to 14 V

   If the voltage is below 11 V, recharge the battery before proceeding to the next step.

2. Check the DLC3 (See HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS ).

1. If the skid control ECU detects a malfunction, the ABS warning, brake warning, slip indicator, and downhill assist control indicator (for 4WD) lights will come on in order to warn the driver. For vehicles with the multi-information display, the master caution indicator light will come on and a warning message will be displayed on the multi-information display if any of the EBD system, BA system, or TRAC system is malfunctioning or if the ABS control or VSC cannot be performed.

   The table below indicates which lights will come on when there is a malfunction in a particular function.

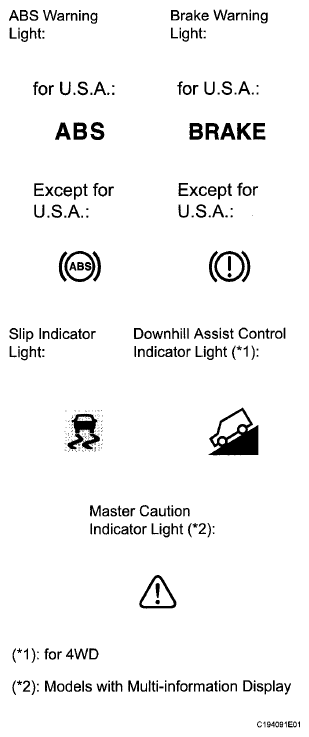

   Fig 1: Identifying ABS Warning, Brake Warning, Slip Indicator And Downhill Assist Control Indicator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TROUBLESHOOTING CHART



   Item/Trouble Area	ABS	EBD	BA	TRAC	VSC	Downhill assist control ((1))	Hill-start assist control	Skid control ECU
   ABS warning light	◦	◦	◦	-	-	-	-	◦
   Brake warning light	-	◦	-	-	-	-	-	◦
   Slip indicator light	◦	◦	◦	◦	◦	◦	◦	◦
   Downhill assist control indicator light C1)	•(Downhill assist control switch ON)	•(Downhill assist control switch ON)	•(Downhill assist control switch ON)	•(Downhill assist control switch ON)	•(Downhill assist control switch ON)	•(Downhill assist control switch ON)	•(Downhill assist control switch ON)	•(Downhill assist control switch ON)
   Master caution indicator light ((2))	◦	◦	◦	◦	◦	◦	◦	◦
   Multi-information display ((2))	◦	◦	◦	-	-	◦	◦	◦
   (1) for 4WD (2) Models with multi-information display ◦: Light or display ON •: Light ON (Blinking) -: Light or display OFF

   HINT:

   • The DTCs are simultaneously stored in the memory.

     The DTCs can be read by connecting SST between terminals TC and CG of the DLC3 and observing the blinking pattern of the ABS warning and slip indicator lights, or by connecting Techstream (See DTC CHECK/CLEAR ).

   • This system has a Test Mode (signal check) function.

     The DTCs can be read by connecting SST between terminals TS and CG of the DLC3 and observing the blinking pattern of the ABS warning and slip indicator lights, or by connecting Techstream (See TEST MODE PROCEDURE ).

1. Release the parking brake.
   NOTE: When releasing the parking brake, move the shift lever to the P position for safety.

   HINT:

   When the parking brake is applied or the level of the brake fluid is low, the brake warning light comes on.

2. When the ignition switch is turned on (IG), check that the ABS warning, brake warning, TRAC OFF indicator, VSC OFF indicator, slip indicator and downhill assist control indicator (for 4WD) lights come on for approximately 3 seconds.

   HINT:

   If the warning light and indicator light check result is not normal, proceed to troubleshooting for the ABS warning, brake warning, TRAC OFF indicator, VSC OFF indicator, slip indicator and downhill assist control indicator (for 4WD) light circuits. If the indicator remains on or does not come on, proceed to troubleshooting for the light circuits listed below.

   TROUBLESHOOTING CHART



   Trouble Area	See procedure
   ABS warning light circuit (Remains on)	ABS WARNING LIGHT REMAINS ON
   ABS warning light circuit (Does not come on)	ABS WARNING LIGHT DOES NOT COME ON
   Brake warning light circuit (Remains on)	BRAKE WARNING LIGHT REMAINS ON
   Brake warning light circuit (Does not come on)	BRAKE WARNING LIGHT DOES NOT COME ON
   TRAC OFF indicator light circuit (Remains on)	TRAC OFF INDICATOR LIGHT REMAINS ON
   TRAC OFF indicator light circuit (Does not come on)	TRAC OFF INDICATOR LIGHT DOES NOT COME ON
   VSC OFF indicator light circuit (Remains on)	VSC OFF INDICATOR LIGHT REMAINS ON
   VSC OFF indicator light circuit (Does not come on)	VSC OFF INDICATOR LIGHT DOES NOT COME ON
   Slip indicator light circuit (Remains on)	SLIP INDICATOR LIGHT REMAINS ON
   Slip indicator light circuit (Does not come on)	SLIP INDICATOR LIGHT DOES NOT COME ON
   Downhill assist control indicator light circuit (Remains on)	DOWNHILL ASSIST CONTROL INDICATOR LIGHT REMAINS ON
   Downhill assist control indicator light circuit (Does not come on)	DOWNHILL ASSIST CONTROL INDICATOR LIGHT DOES NOT COME ON

Fig 2: Identifying ABS Warning, Brake Warning, TRAC OFF Indicator, VSC OFF Indicator And Slip Indicator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The most difficult case in troubleshooting is when no symptoms occur. In such cases, a thorough customer problem analysis must be carried out. Then the same or similar conditions and environment in which the problem occurred in the customer's vehicle should be reproduced. No matter how experienced or skilled a technician may be, if he/she proceeds to troubleshooting without confirming the problem symptoms, he/she will likely overlook something important and make a wrong guess at some points in the repair operation. This leads to a standstill in troubleshooting.

1. Vibration method: When vibration seems to be the major cause.

   HINT:

   Perform the simulation method only during the primary check period (for approximately 6 seconds after the ignition switch is turned on (IG)).

   1. Slightly vibrate the part of the sensor considered to be the problem cause with your fingers and check whether the malfunction occurs.
   2. Slightly shake the connector vertically and horizontally.

      HINT:

      Shaking the relays too strongly may result in open relays.

   3. Slightly shake the wire harness vertically and horizontally. The connector joint and fulcrum of the vibration are the major areas to be checked thoroughly.
