Charging System (1AR-FE): Generator: Installation

INSTALL GENERATOR ASSEMBLY
1. Install the generator with the 2 bolts.
  Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

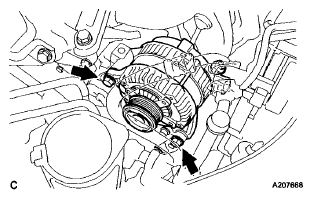

  Fig 1: Locating Generator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the wire harness clamp bracket with the bolt.
  Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)
3. Connect the generator wire with the nut.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
4. Install the terminal cap.
5. Connect the generator connector.
INSTALL V-RIBBED BELT
1. Install the belt (See INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).

Fig 2: Locating Wire Harness Clamp Bracket Bolt And Generator Wire Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
