Throttle Body: Components — 2009 Toyota Highlander Base, 2.7 A Service Manual ~ FixVault

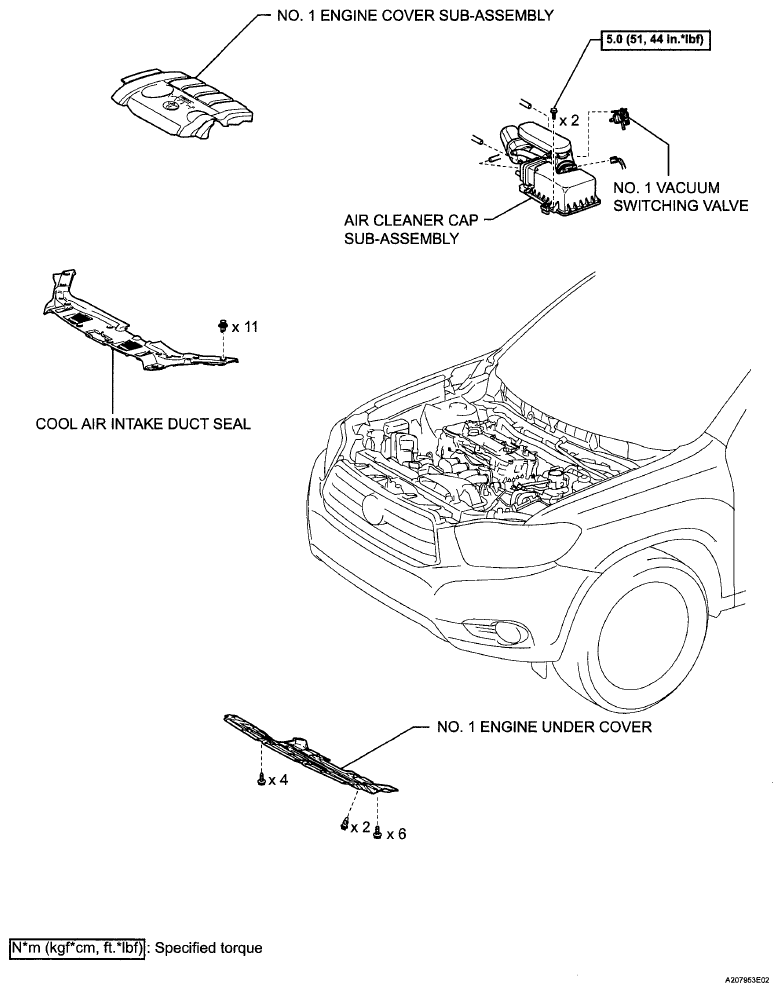

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

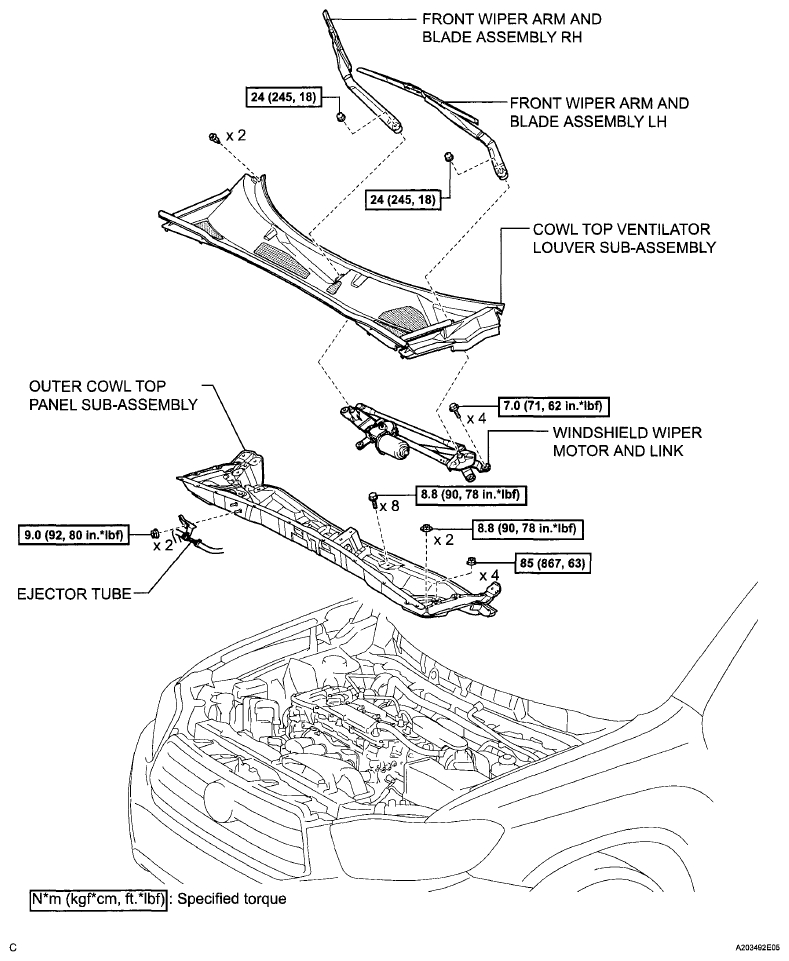

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

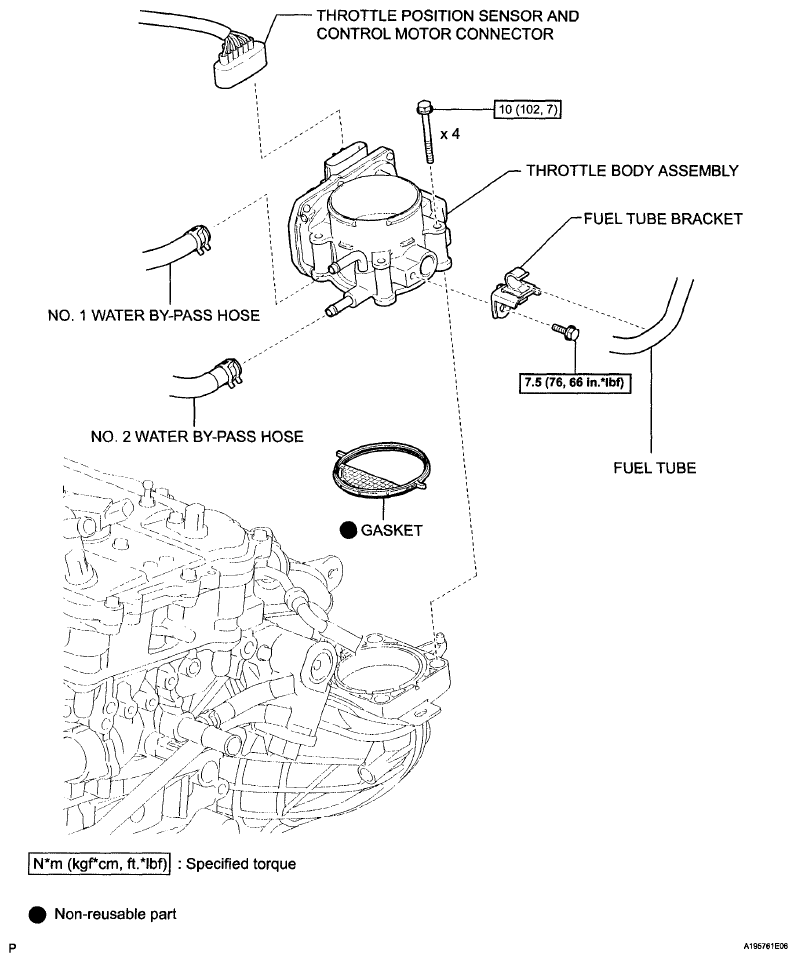

Fig 3: Throttle Body Replacement Components With Torque Specifications (3 Of 3)
