Active Control Engine Mount: Components

Fig 1: Identifying Active Control Engine Mount Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Active Control Engine Mount Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Active Control Engine Mount Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

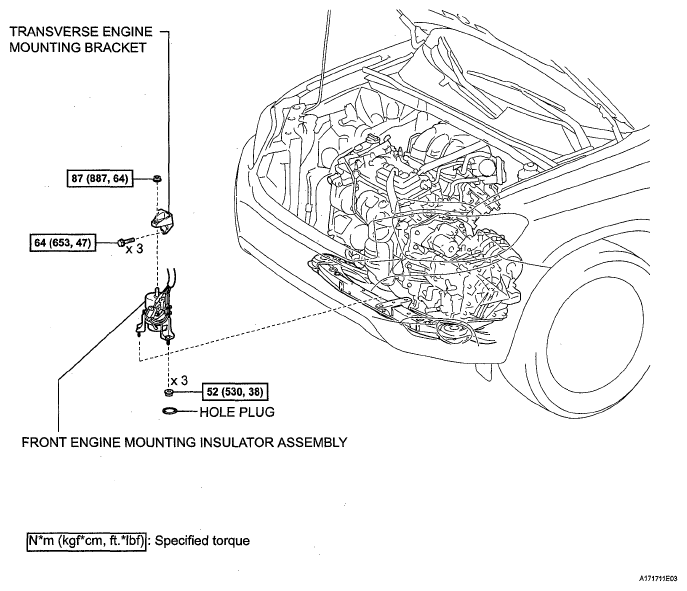

Fig 4: Identifying Active Control Engine Mount Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Active Control Engine Mount Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
