Air Fuel Ratio Sensor: Components

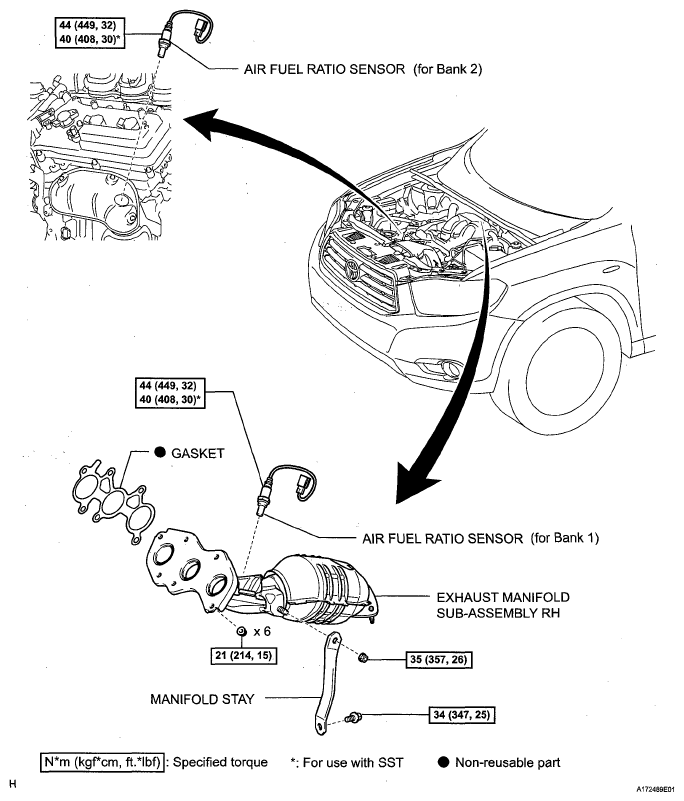

Fig 1: Identifying Air Fuel Ratio Sensor Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Air Fuel Ratio Sensor Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Air Fuel Ratio Sensor Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
