ECM Power Source Circuit
›
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram

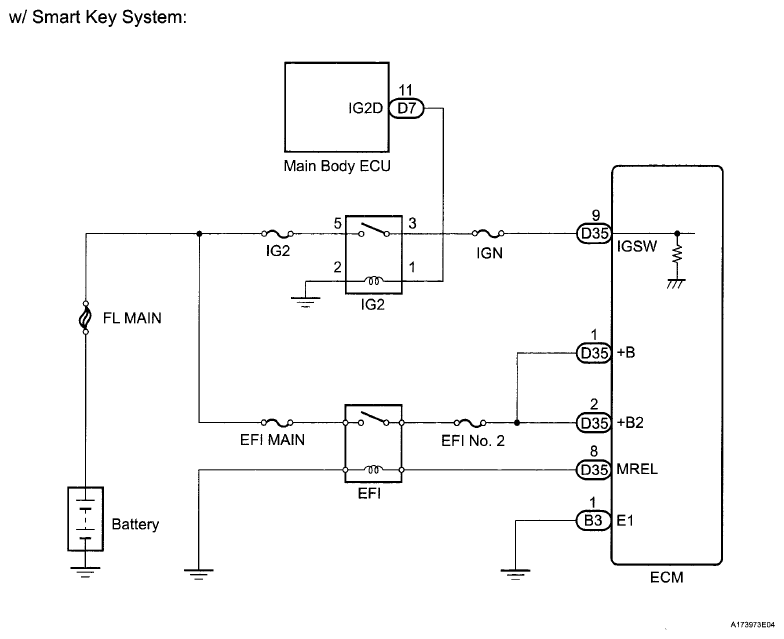

Fig 1: ECM Power Source - Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

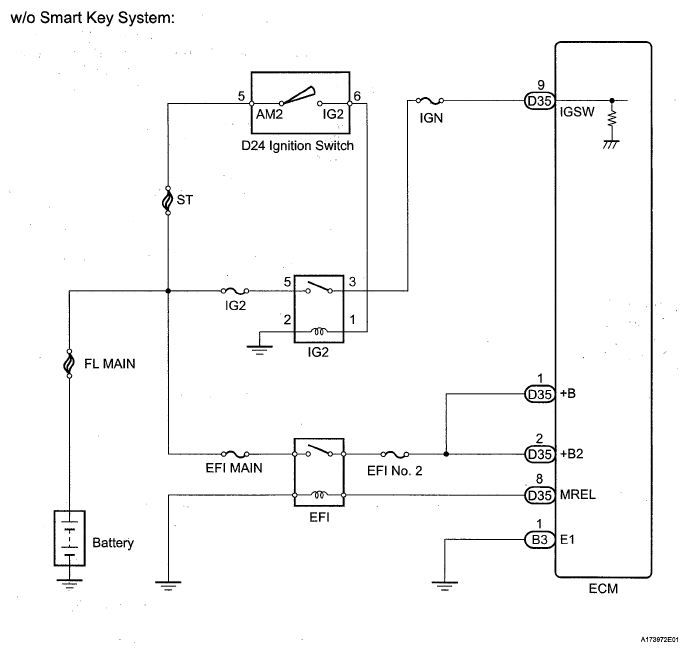

Fig 2: ECM Power Source - Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
