Engine Control System (2GR-FE) - System And Component Testing, Removal, Inspection And Installation
›
ECM
›
Components
Engine Control System (2GR-FE) - System And Component Testing, Removal, Inspection And Installation: ECM: Components

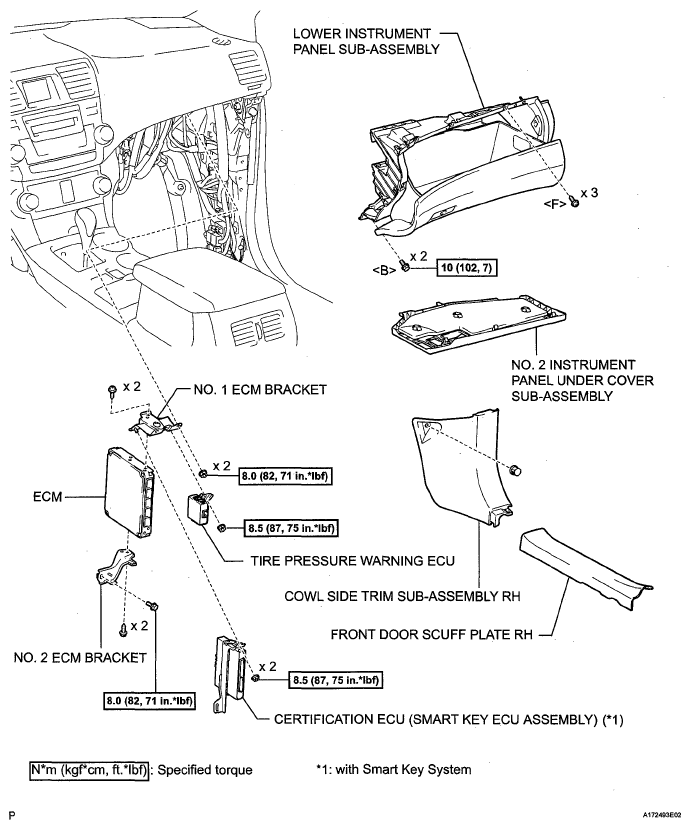

Fig 1: Identifying ECM Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
