Engine Control System (2GR-FE) - System And Component Testing, Removal, Inspection And Installation
›
Engine Coolant Temperature Sensor
›
Components
Engine Coolant Temperature Sensor: Components

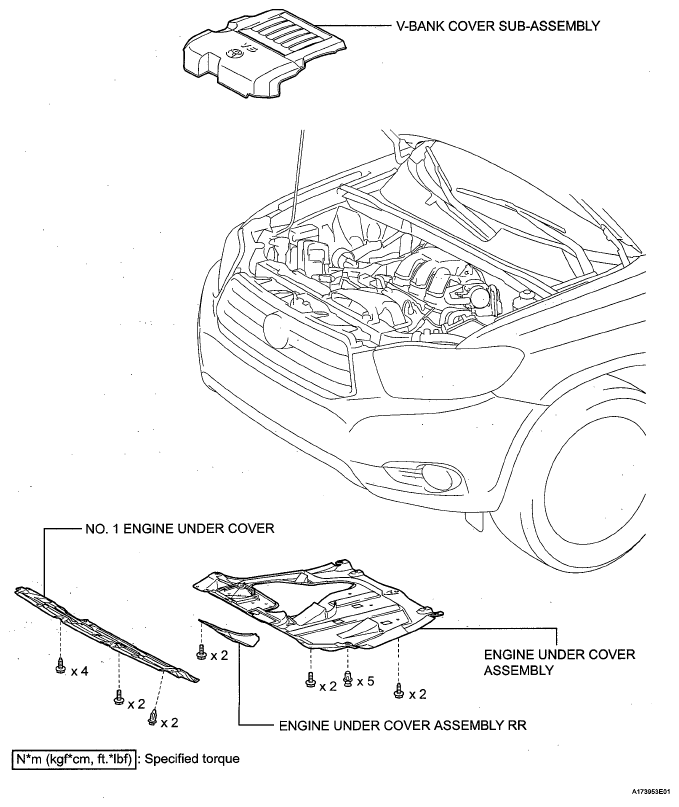

Fig 1: Identifying Engine Coolant Temperature Sensor Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

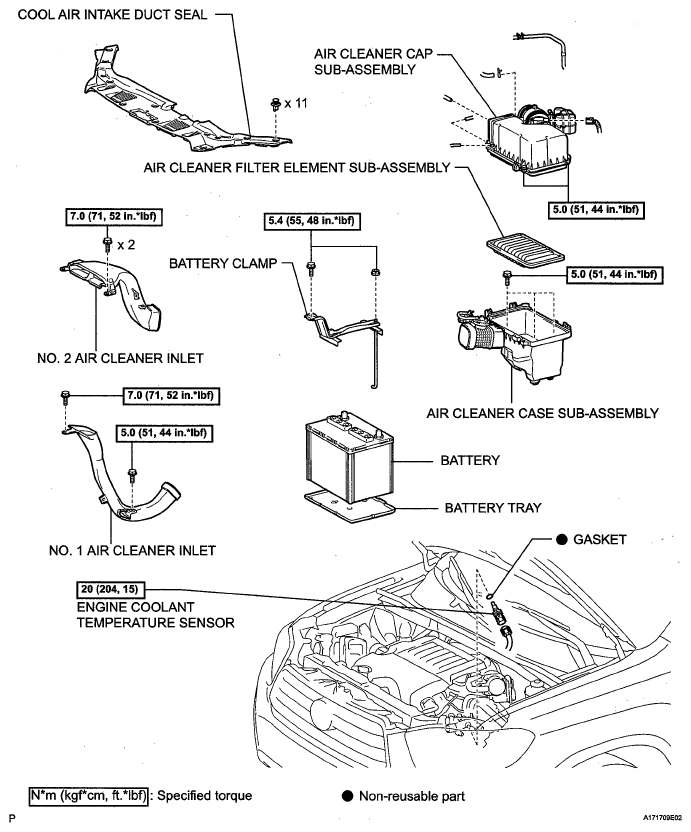

Fig 2: Identifying Engine Coolant Temperature Sensor Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
