Parts Location — 2009 Toyota Highlander Limited, AWD Service Manual ~ FixVault

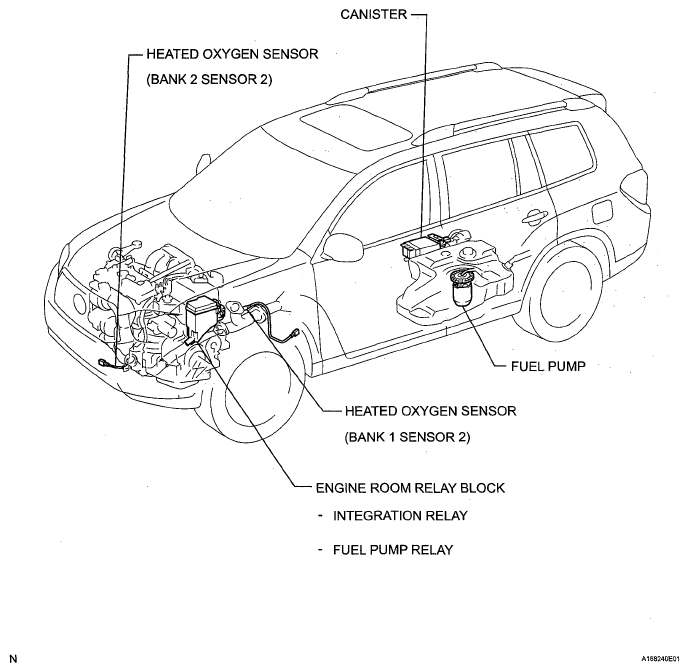

Fig 1: Identifying SFI System Parts Location (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

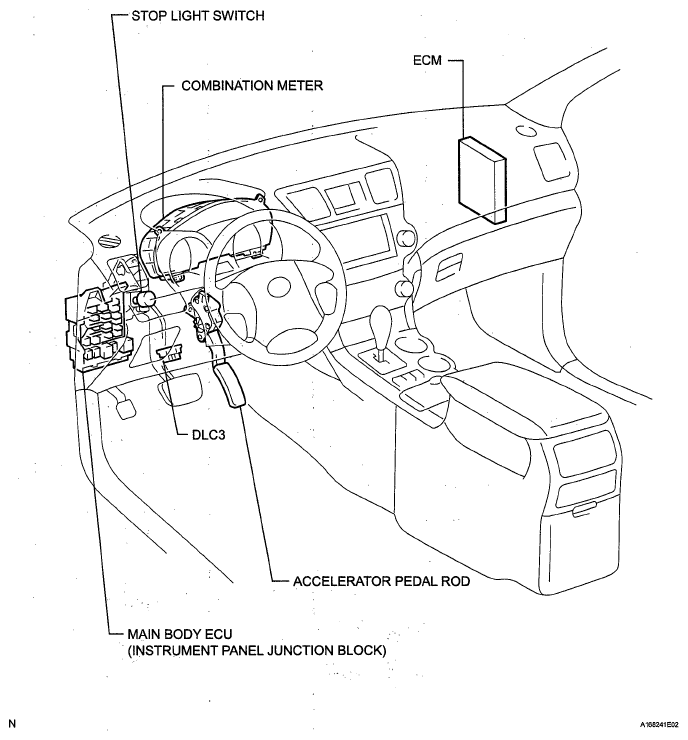

Fig 2: Identifying SFI System Parts Location (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

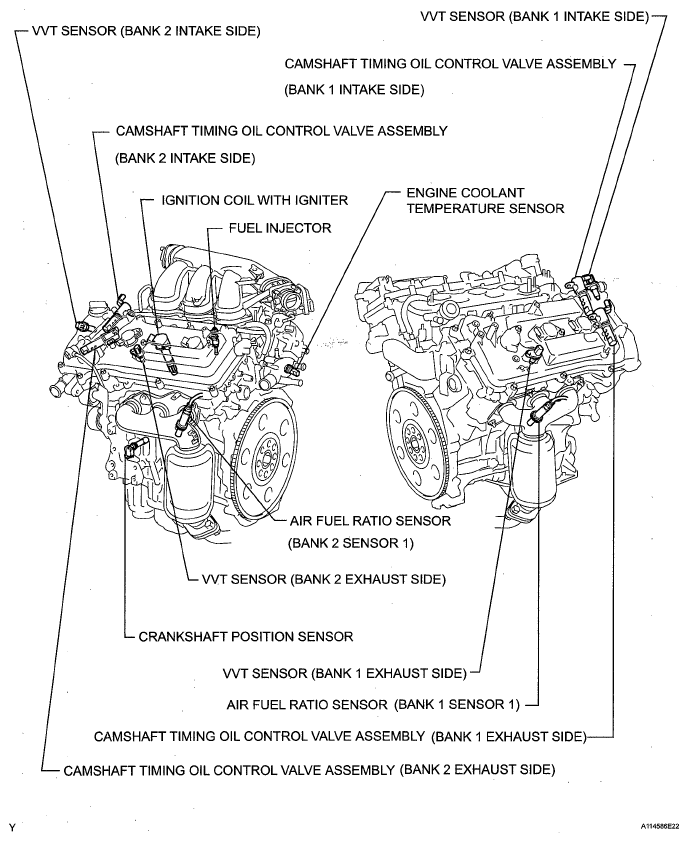

Fig 3: Identifying SFI System Parts Location (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

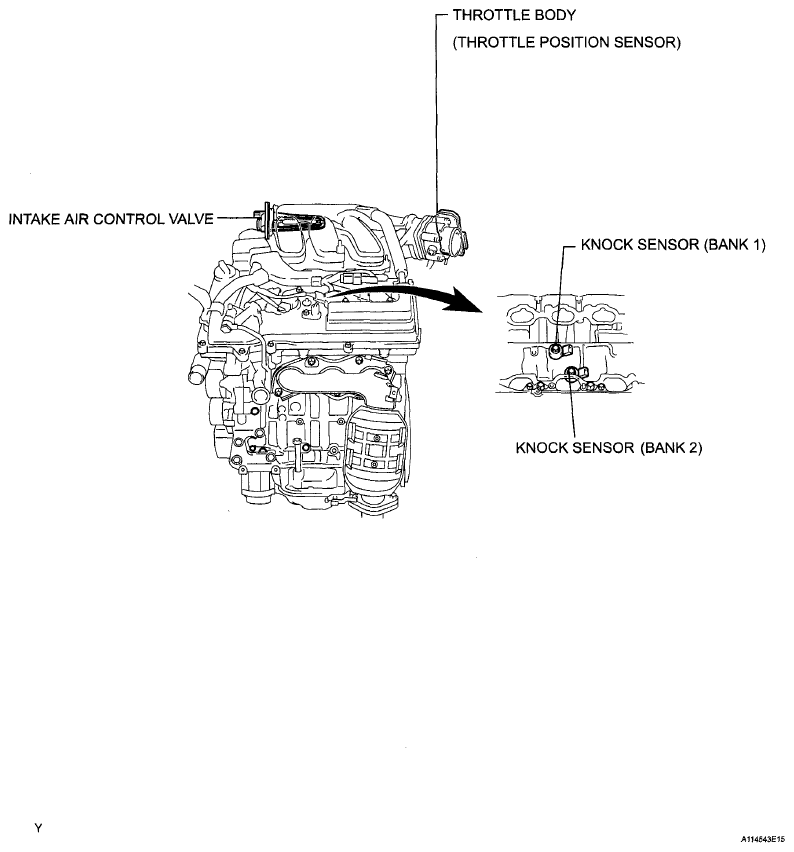

Fig 4: Identifying SFI System Parts Location (4 Of 5)

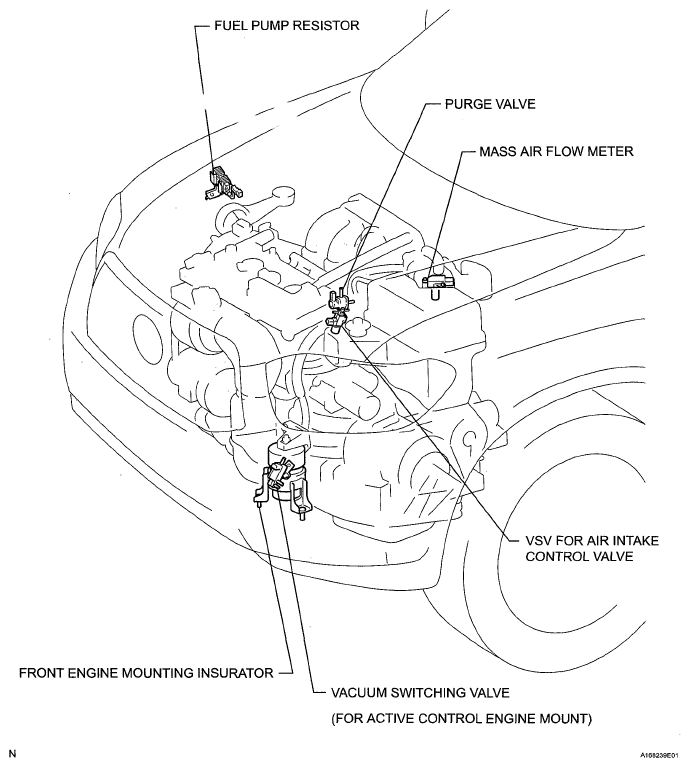

Fig 5: Identifying SFI System Parts Location (5 Of 5)
