System Diagram

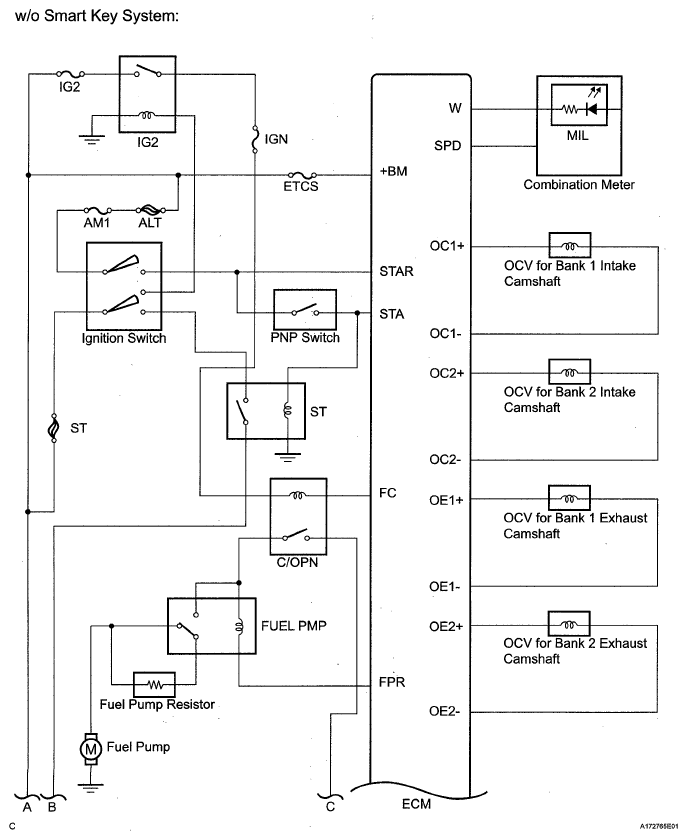

Fig 1: SFI System Diagram (1 Of 5)
G05413574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

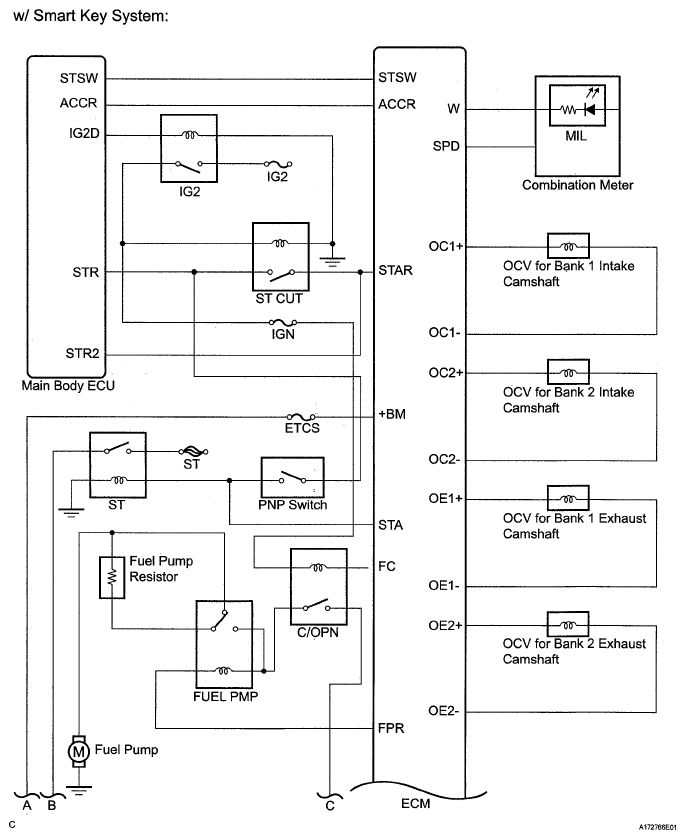

Fig 2: SFI System Diagram (2 Of 5)
G05413575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

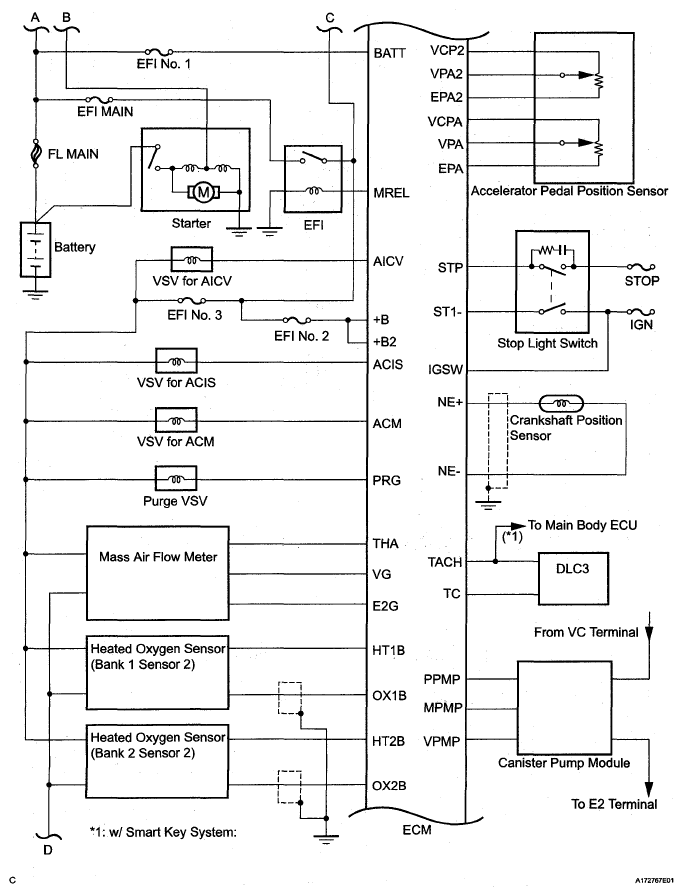

Fig 3: SFI System Diagram (3 Of 5)
G05413576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

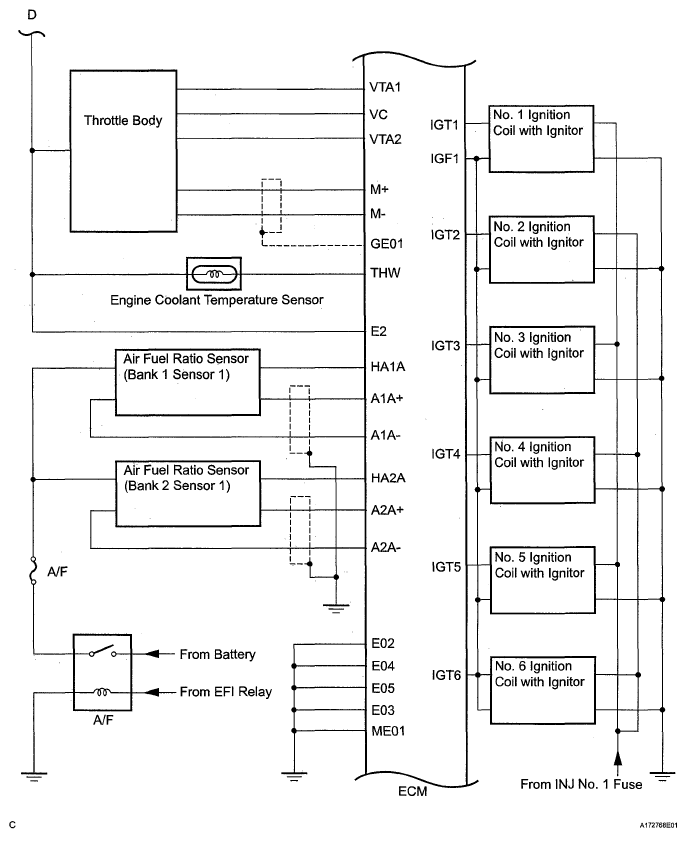

Fig 4: SFI System Diagram (4 Of 5)
G05413577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

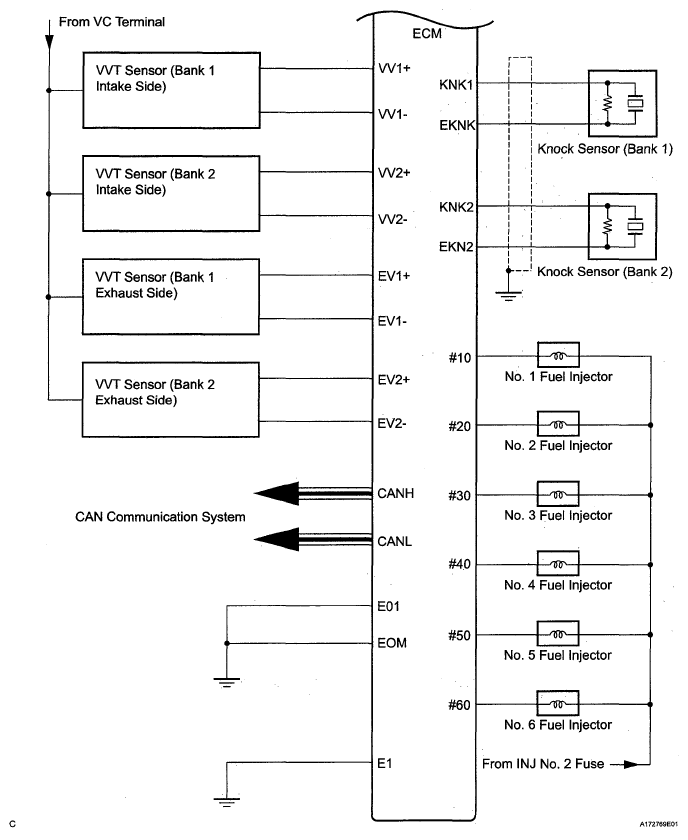

Fig 5: SFI System Diagram (5 Of 5)
G05413578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
