MULTI-DISPLAY (w/Navigation System)
›
Components
MULTI-DISPLAY (w/Navigation System): Components

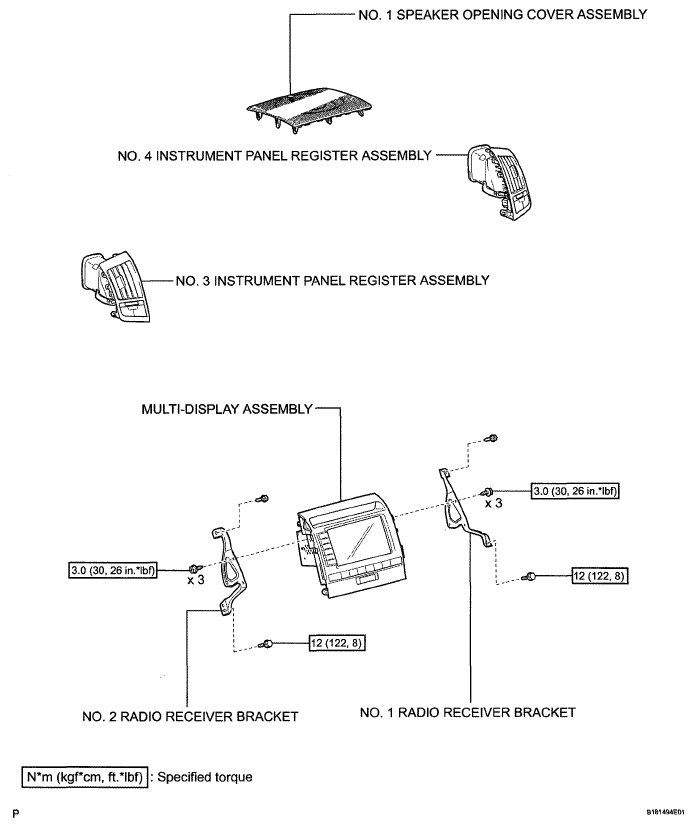

Fig 1: Multi-Display (w/Navigation System) Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
