Toyota
›
2009
›
Land Cruiser
›
Repair and Diagnosis
›
Accessories & Equipment
›
Infotainment
›
Navigation/Multi Info Display
›
Navigation System
›
Navigation ECU Communication Error
›
Wiring Diagram
Navigation ECU Communication Error: Wiring Diagram

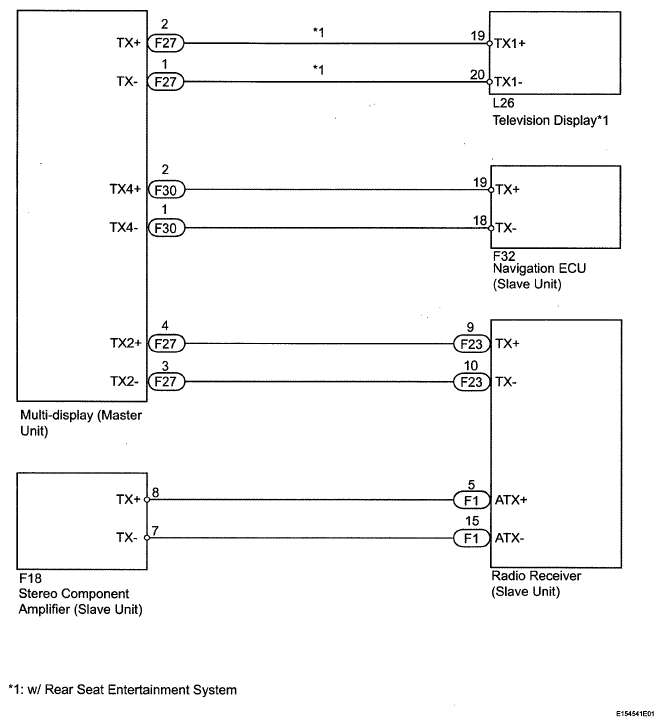

Fig 1: Stereo Component Amplifier & Radio Receiver - Wiring Diagram
