Ground Point: Notes

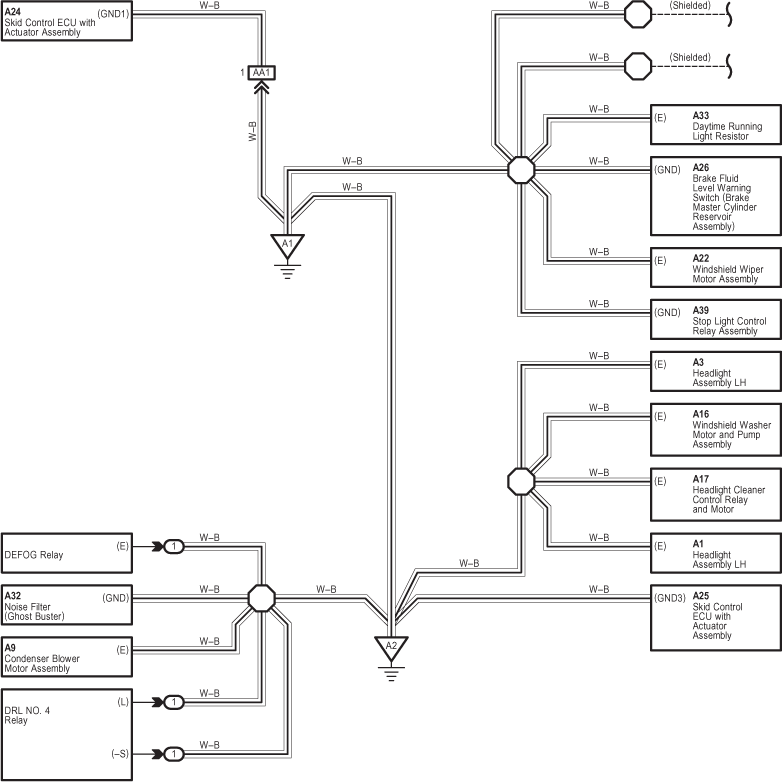

Fig 1: Ground Point - Wiring Diagram (1 Of 9)

G07623918

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

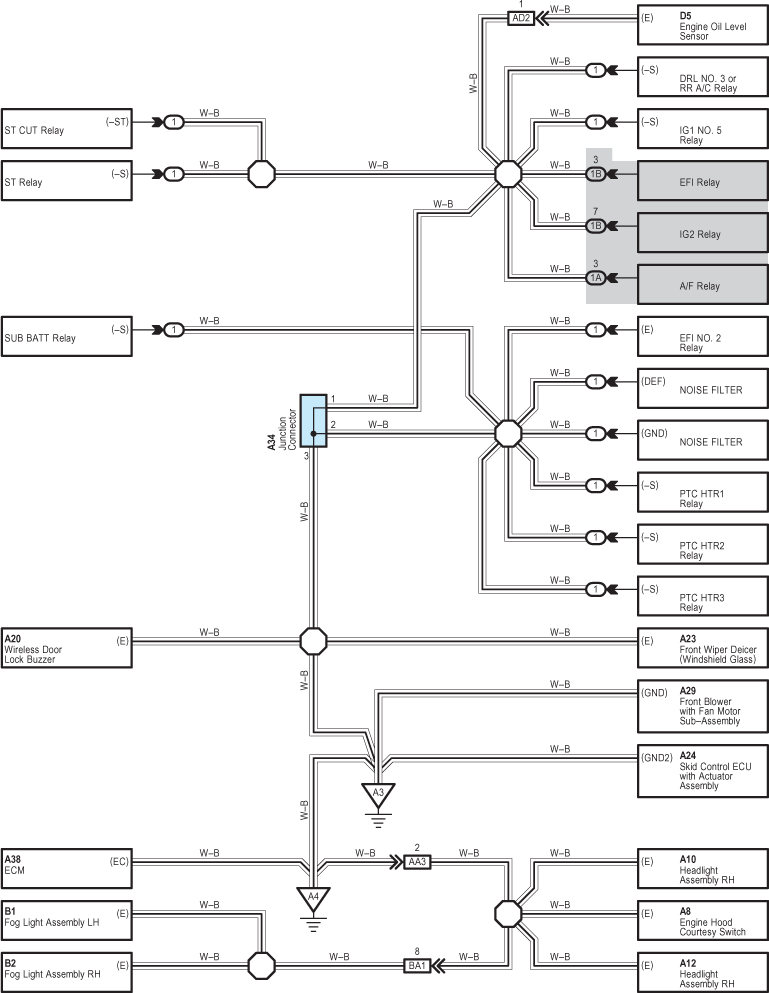

Fig 2: Ground Point - Wiring Diagram (2 Of 9)

G07623919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

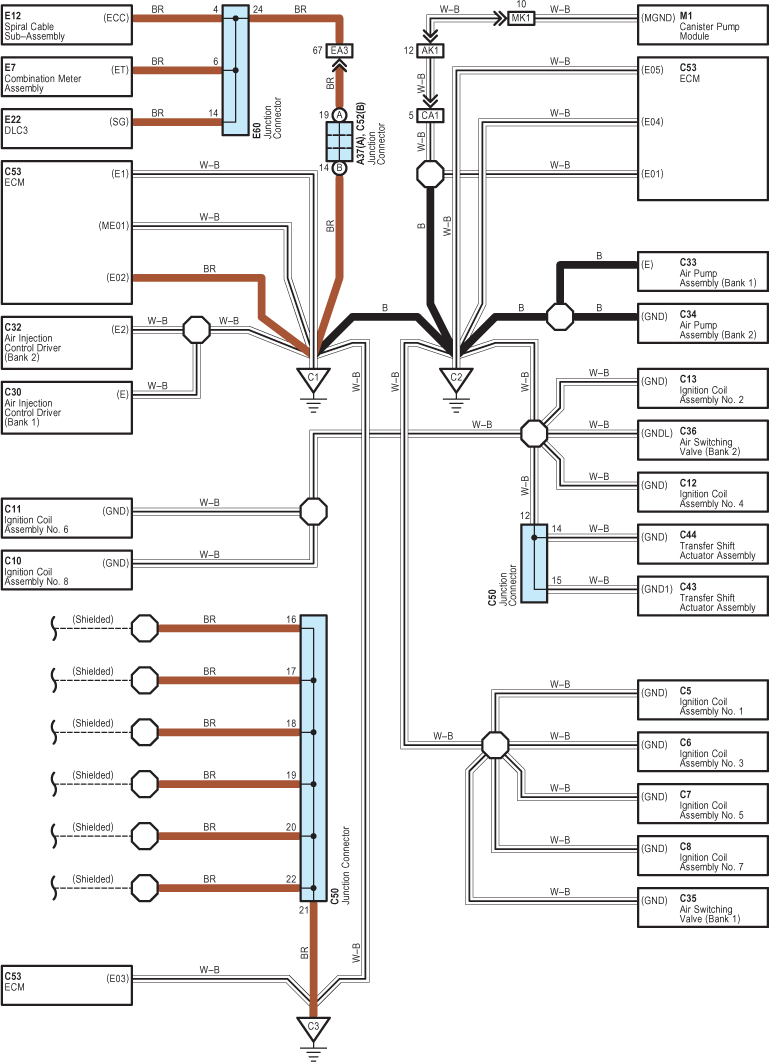

Fig 3: Ground Point - Wiring Diagram (3 Of 9)

G07623920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

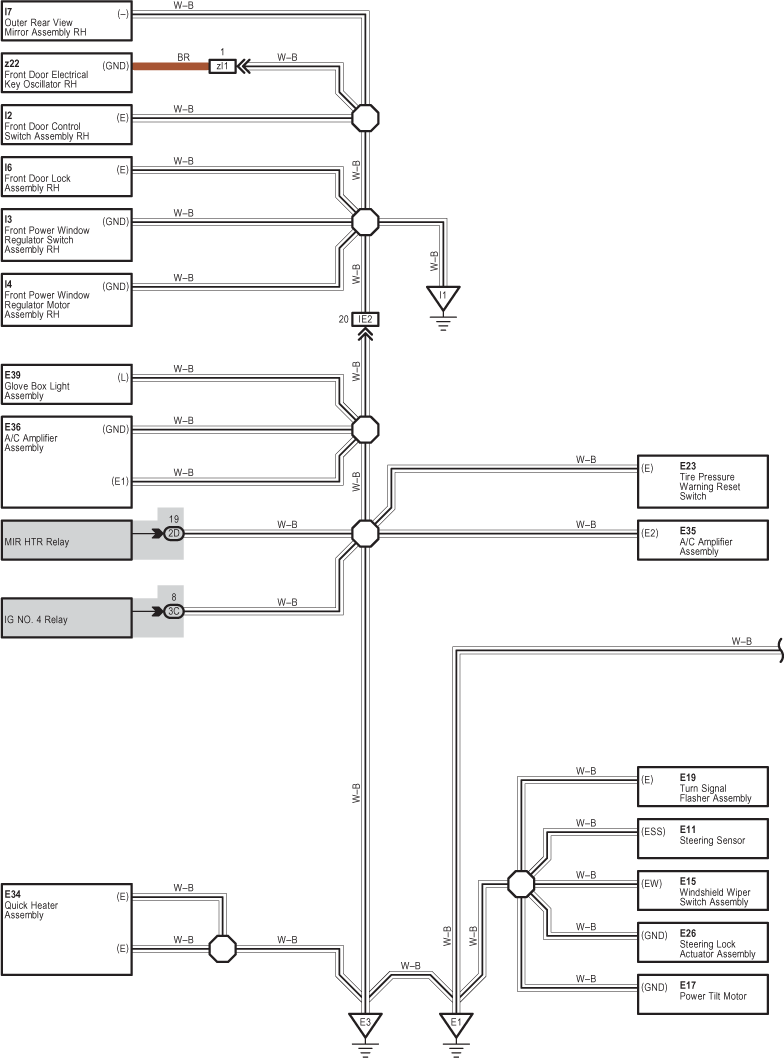

Fig 4: Ground Point - Wiring Diagram (4 Of 9)

G07623921

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

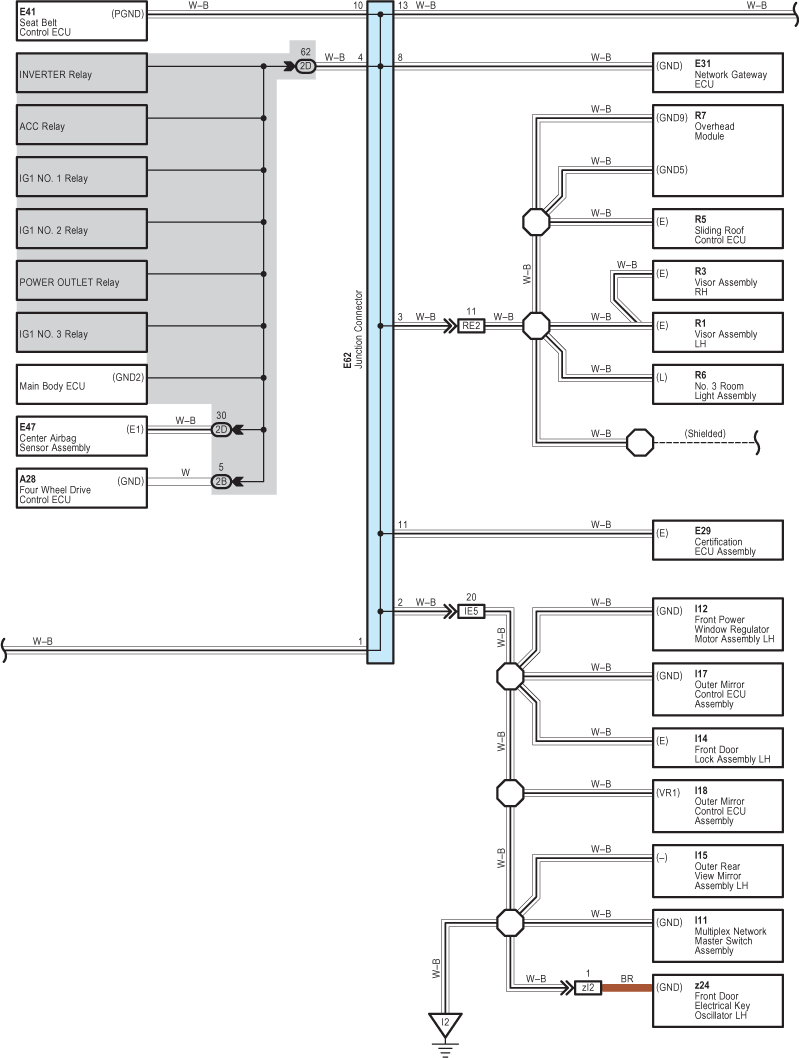

Fig 5: Ground Point - Wiring Diagram (5 Of 9)

G07623922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

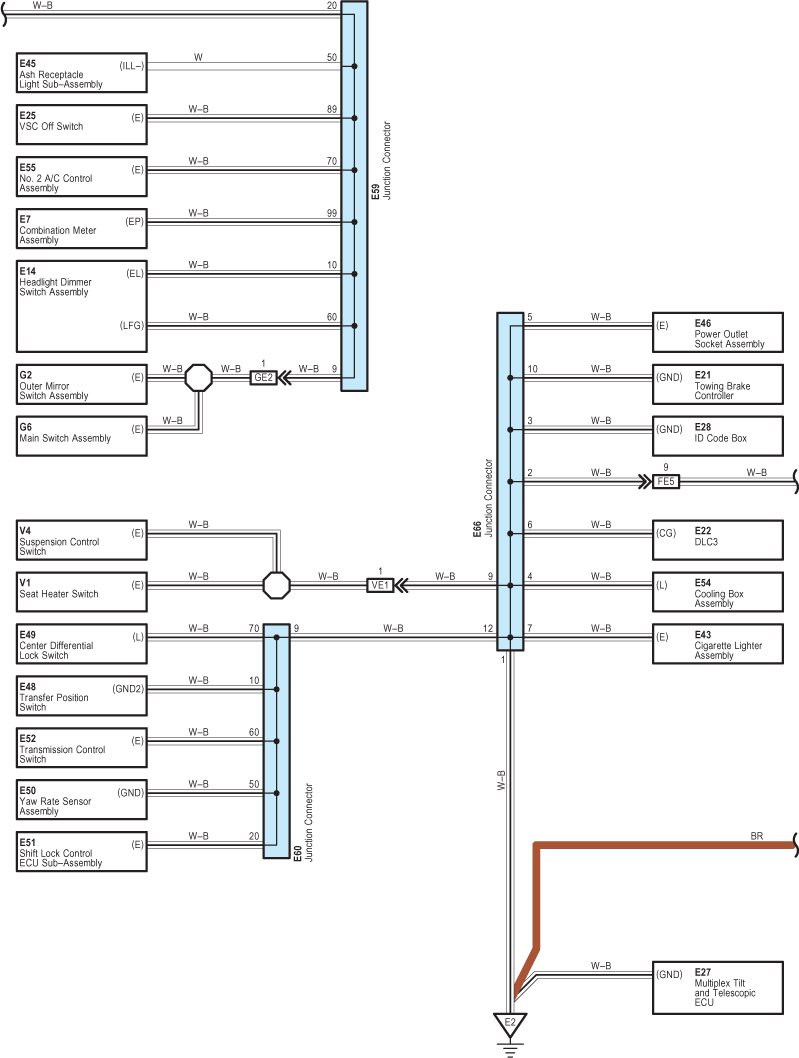

Fig 6: Ground Point - Wiring Diagram (6 Of 9)

G07623923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

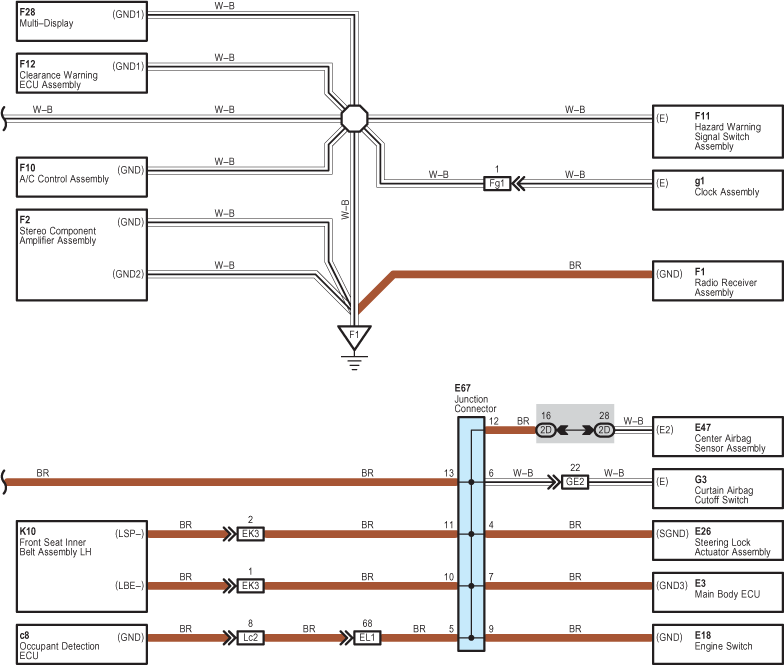

Fig 7: Ground Point - Wiring Diagram (7 Of 9)

G07623924

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

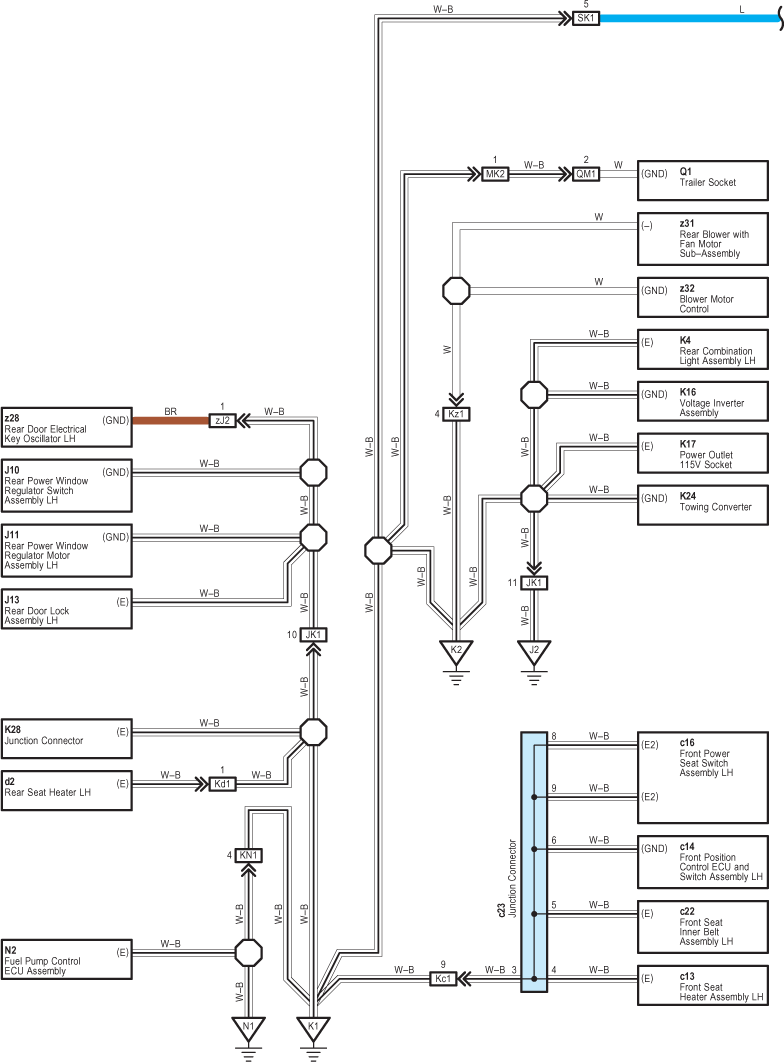

Fig 8: Ground Point - Wiring Diagram (8 Of 9)

G07623925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

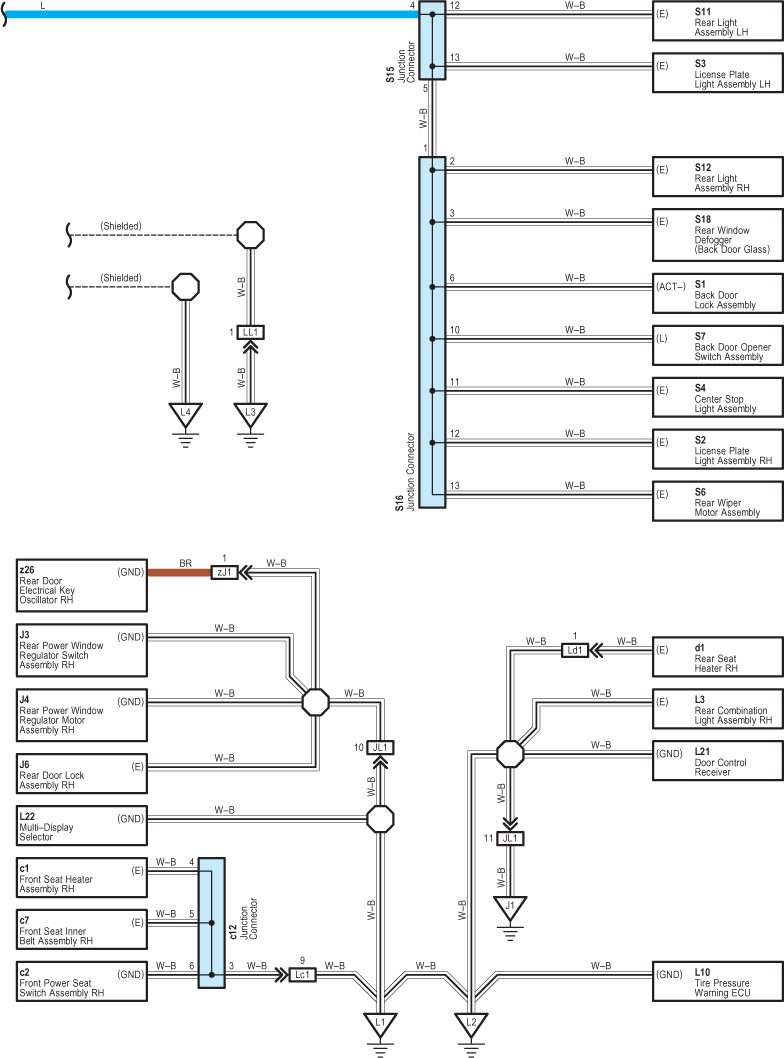

Fig 9: Ground Point - Wiring Diagram (9 Of 9)

G07623926

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
