Clock (w/o Multi-Display)
›
Notes
Clock (w/o Multi-Display): Notes

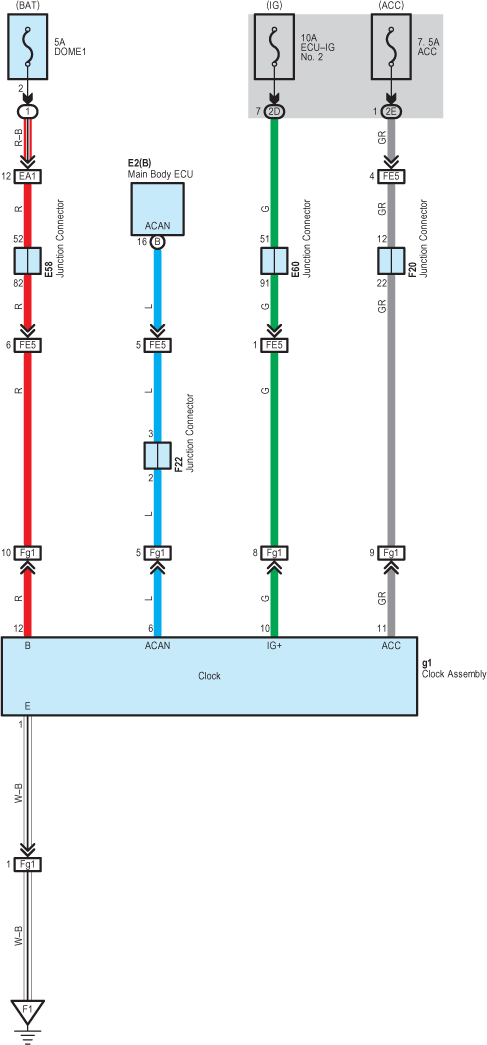

Fig 1: Clock (W/O Multi-Display) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
