Towing Converter Relay
›
Components
Towing Converter Relay: Components

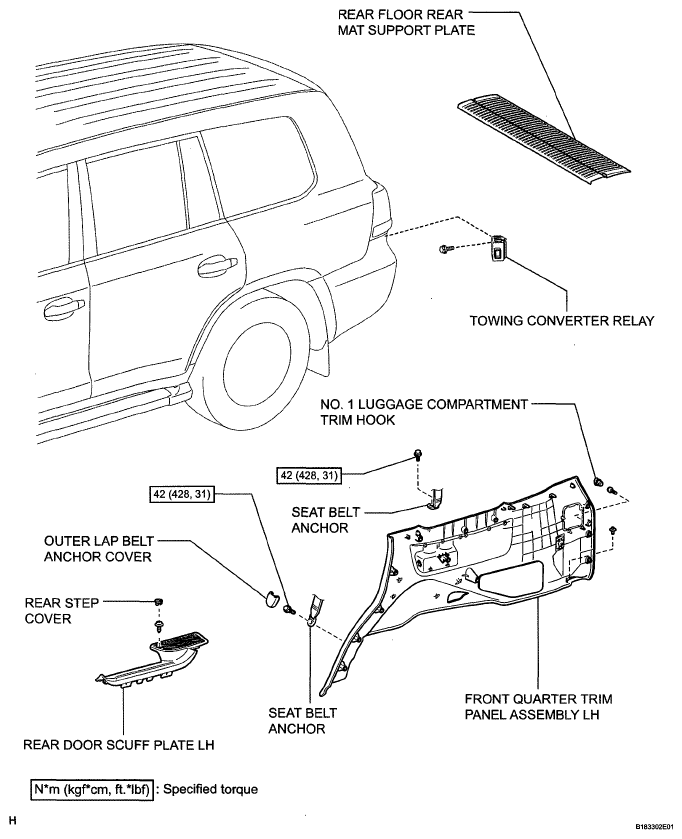

Fig 1: Towing Converter Relay With Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
