Air Fuel Ratio Sensor: Components

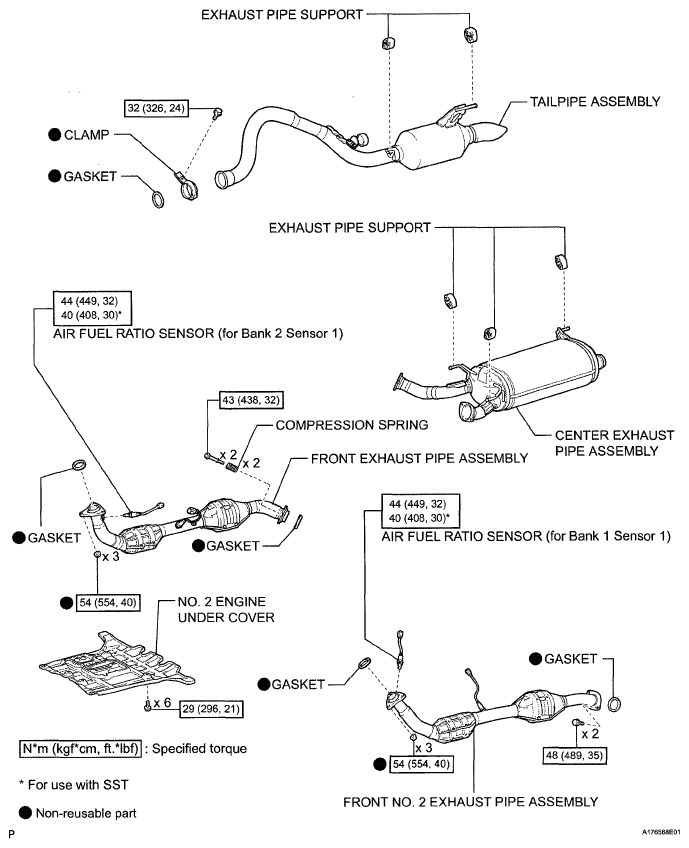

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications
G05628278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
