Engine Control System - Circuit Tests And Service Information
›
EVAP System
›
Wiring Diagram

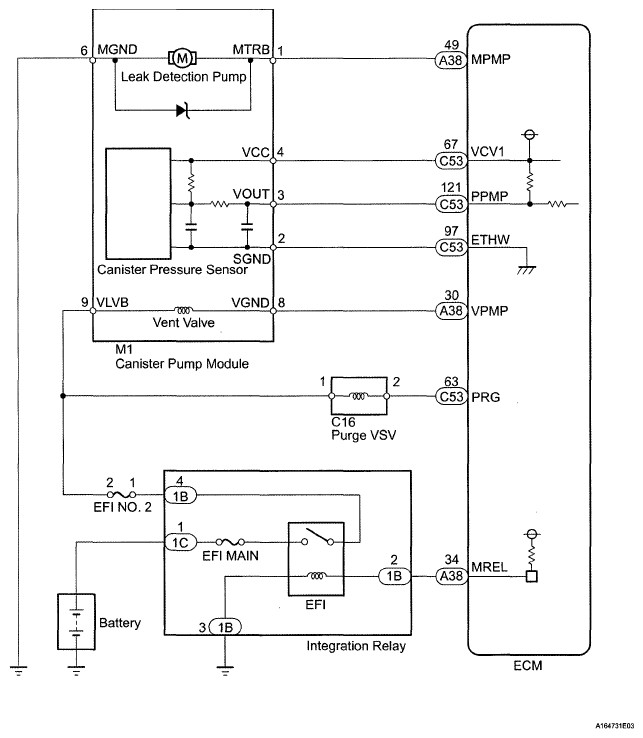

EVAP System: Wiring Diagram
Fig 1: A/F Sensor - Wiring Diagram
