Engine Control System - Circuit Tests And Service Information
›
Fuel Injector Circuit
›
Wiring Diagram
Fuel Injector Circuit: Wiring Diagram

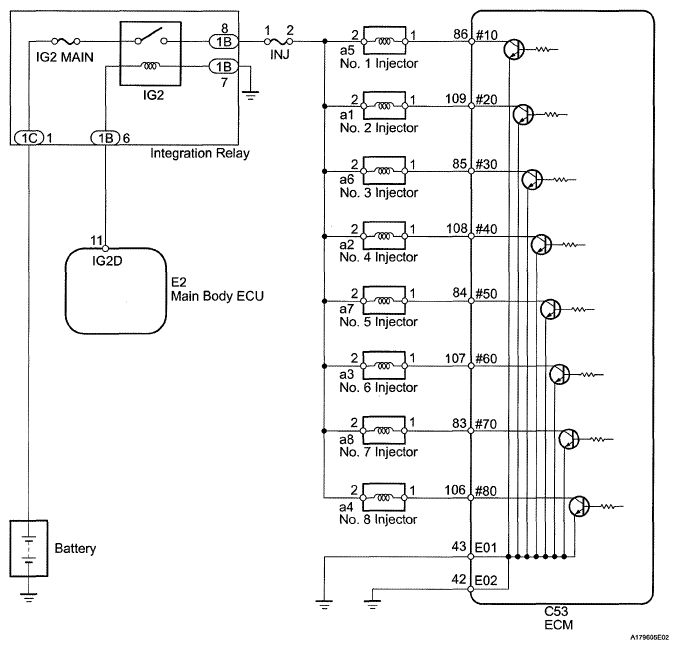

Fig 1: Fuel Injector - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
