Engine Control System - Circuit Tests And Service Information
›
Ignition System
›
Parts Location
Parts Location

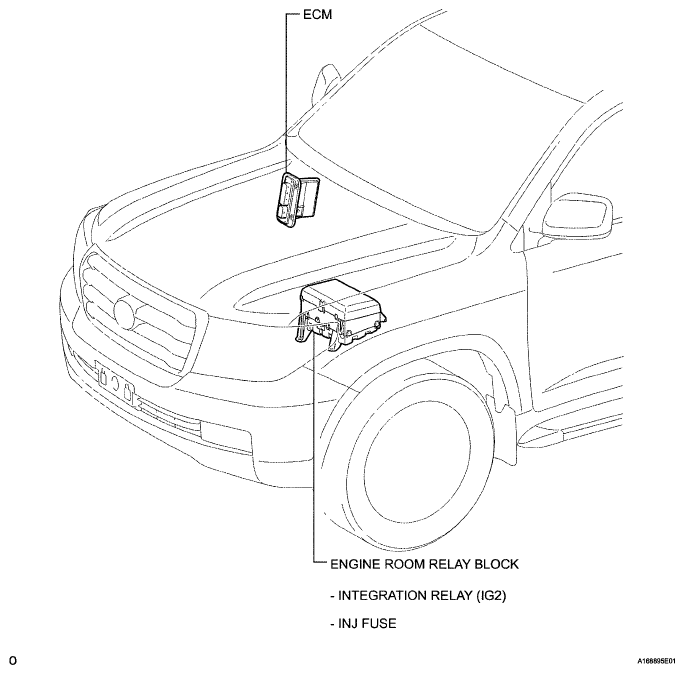

Fig 1: Identifying Ignition System Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

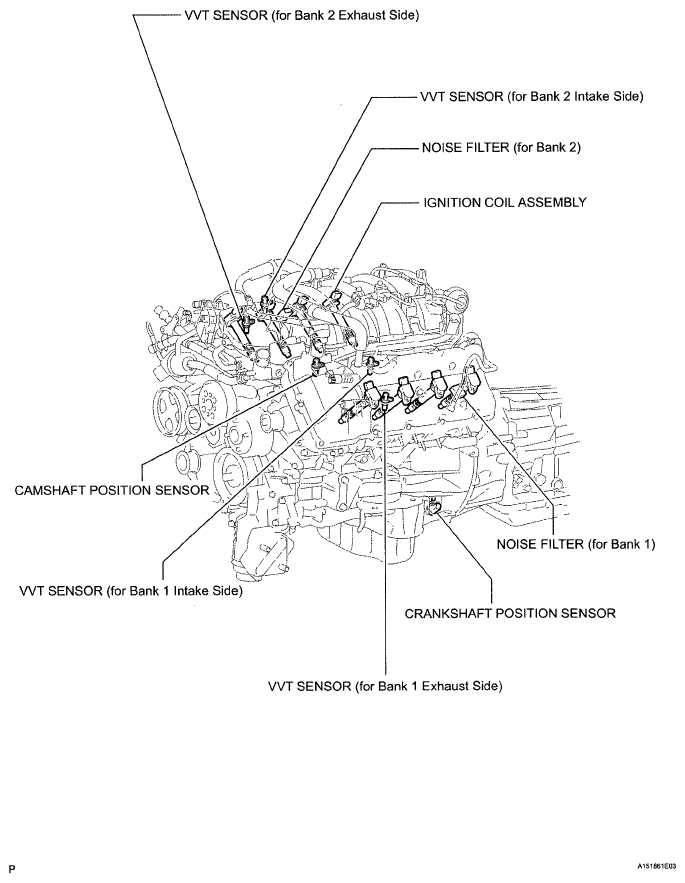

Fig 2: Identifying Ignition System Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
