Engine Control System - Circuit Tests And Service Information
›
MIL Circuit
›
Wiring Diagram
MIL Circuit: Wiring Diagram

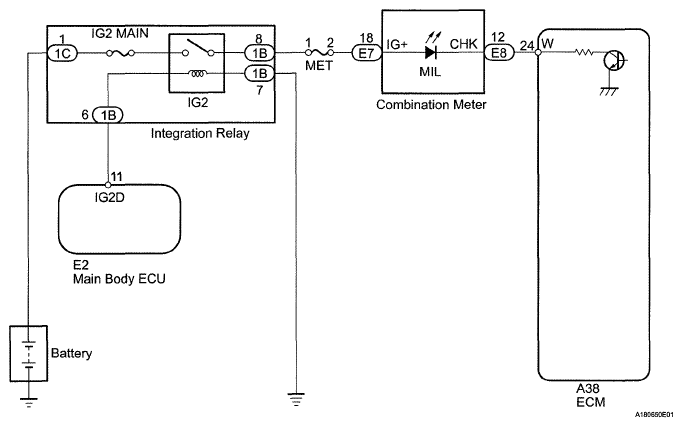

Fig 1: MIL - Wiring Diagram
