Mass Air Flow Meter
›
Components
Mass Air Flow Meter: Components

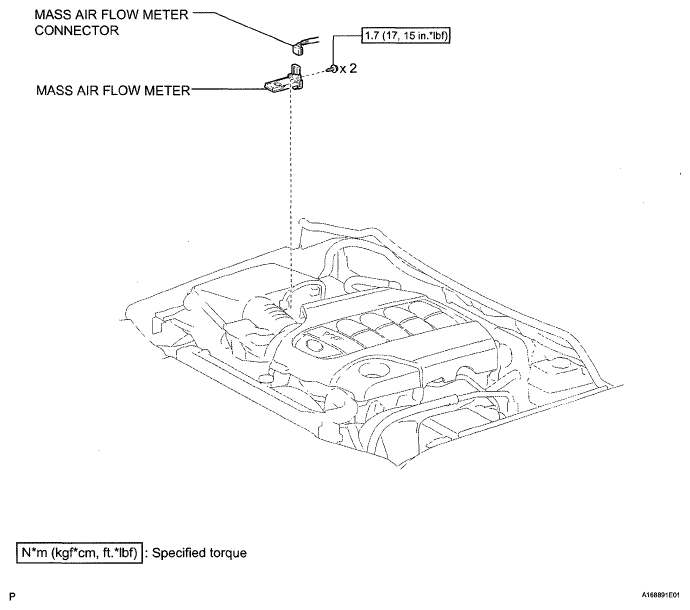

Fig 1: Mass Air Flow Meter Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
