Power Steering Oil Pressure Switch: Components

Fig 1: Identifying Power Steering Oil Pressure Switch Replacement Components With Torque Specifications (1 Of 2)
G05628294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

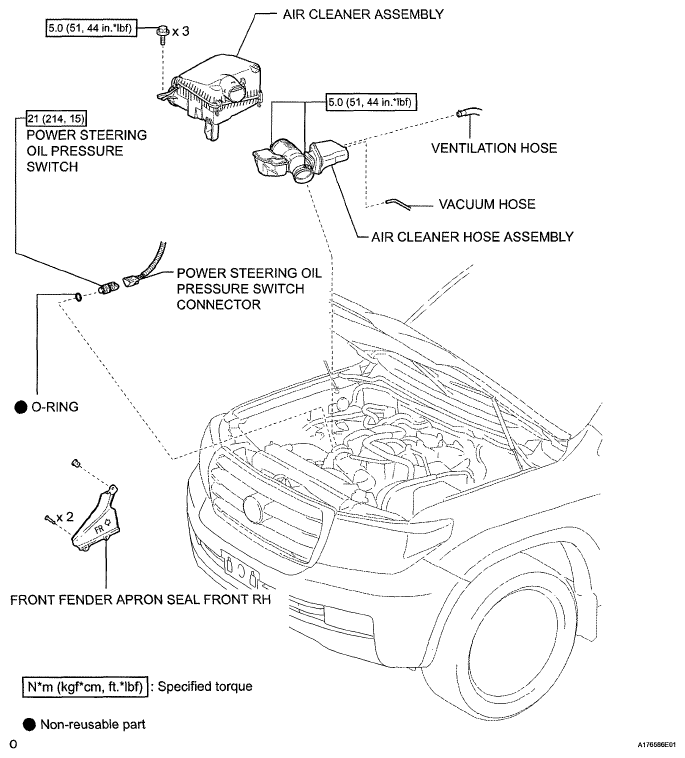

Fig 2: Identifying Power Steering Oil Pressure Switch Replacement Components With Torque Specifications (2 Of 2)
G05628295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
