Integration Relay: Installation

  1. INSTALL INTEGRATION RELAY
    1. Connect the 3 connectors.
      Fig 1: Locating Connectors
      G06007688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Push the integration relay into the engine room relay block.
    3. Install the No. 1 relay block cover.
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

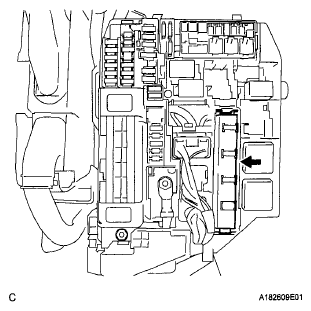

    Fig 2: Locating No. 1 Relay Block Cover
    G06007694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
