Rear Door Speaker: Components

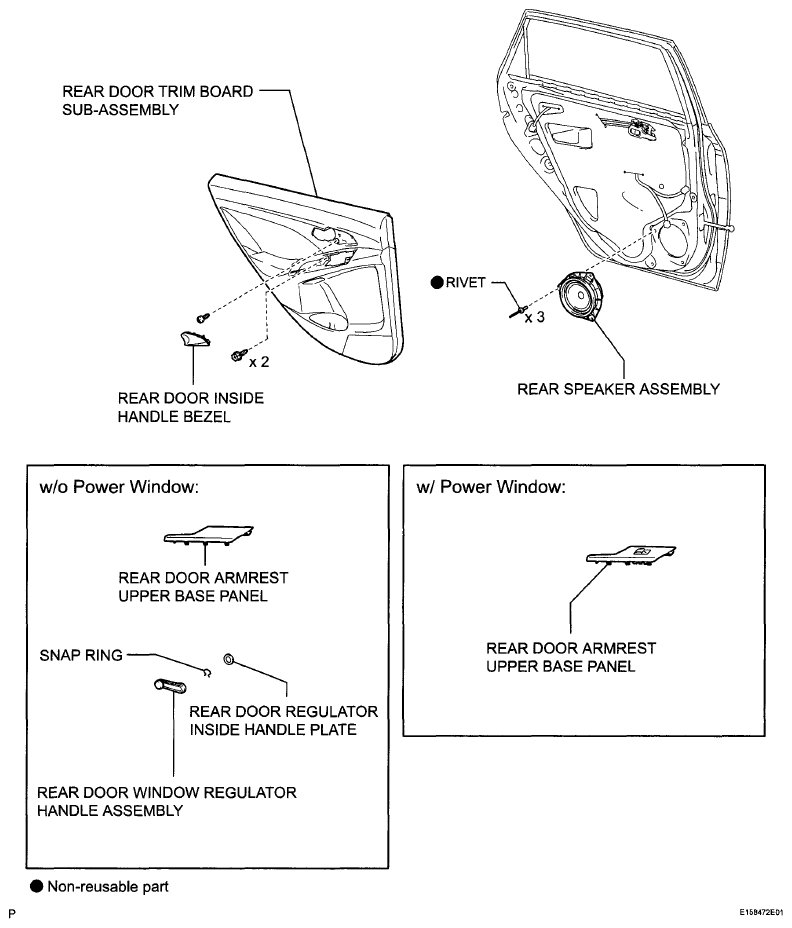

Fig 1: Identifying Rear Door Speaker Components
G06035781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
