BRAKE ACTUATOR (w/o VSC): Components

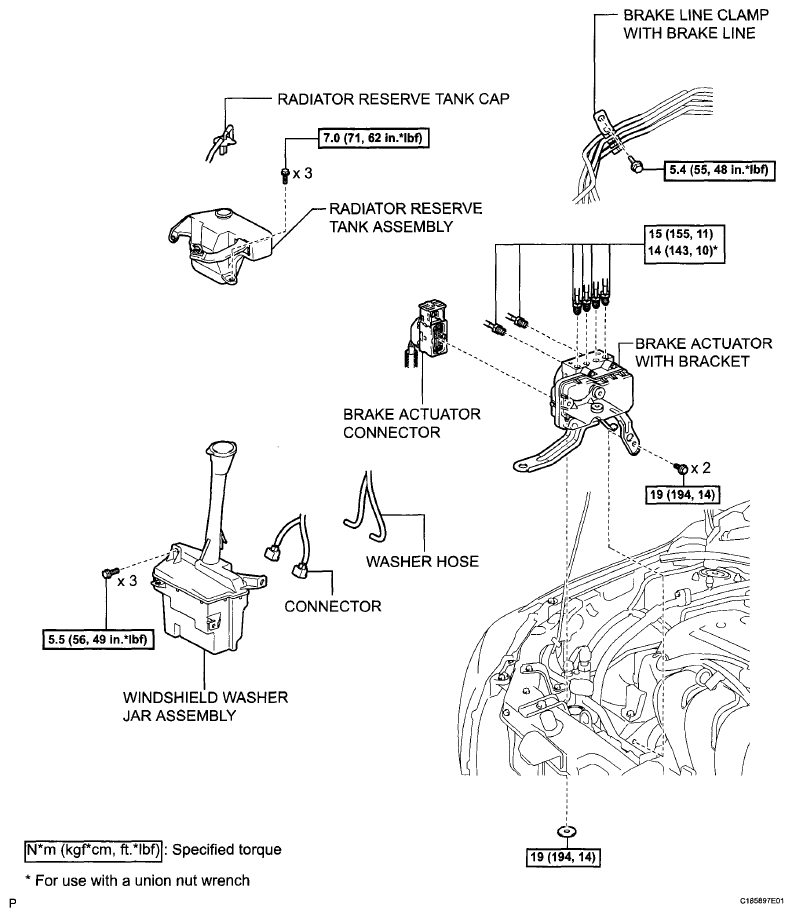

Fig 1: Brake Actuator Related Replacement Components With Torque Specifications
G06035084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

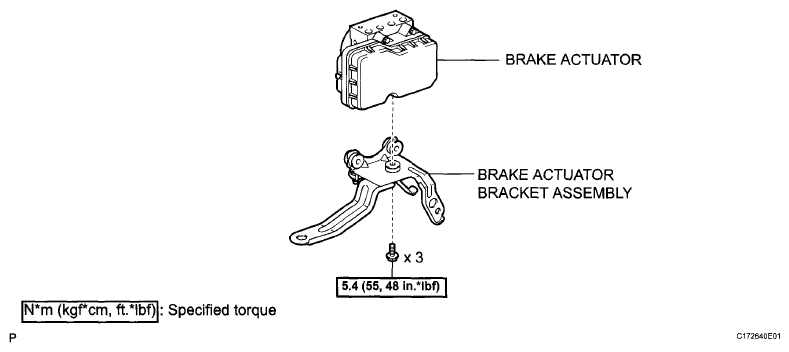

Fig 2: Brake Actuator And Brake Actuator Bracket Assembly With Torque Specifications
G06035085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
