Brake Control/Dynamic Control System
›
Vehicle Stability Control System
›
ABS Warning Light Remains ON
›
Wiring Diagram
ABS Warning Light Remains ON: Wiring Diagram

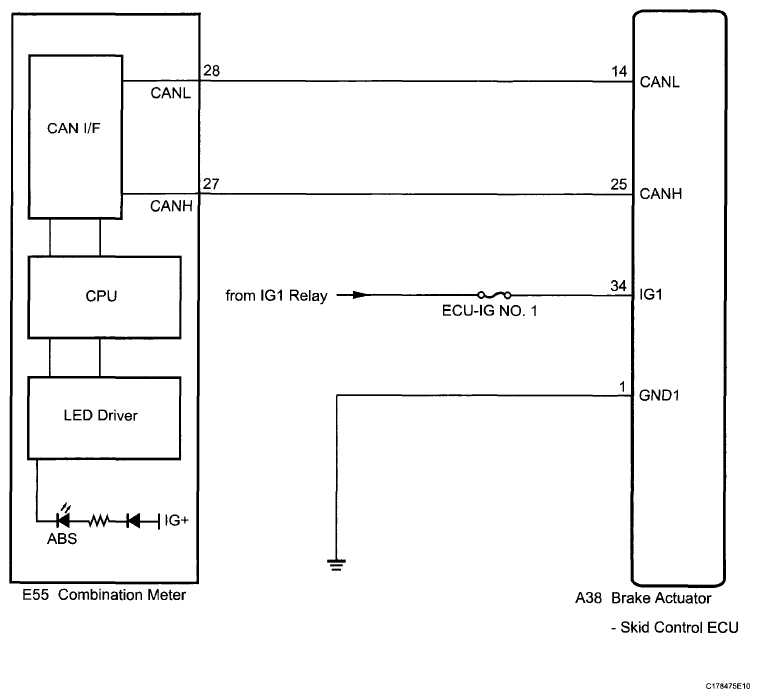

Fig 1: ABS Warning Light - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
