Matrix Base, Automatic
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control/Dynamic Control System
›
Vehicle Stability Control System
›
Brake Warning Light Remains ON
›
Wiring Diagram
Brake Warning Light Remains ON: Wiring Diagram

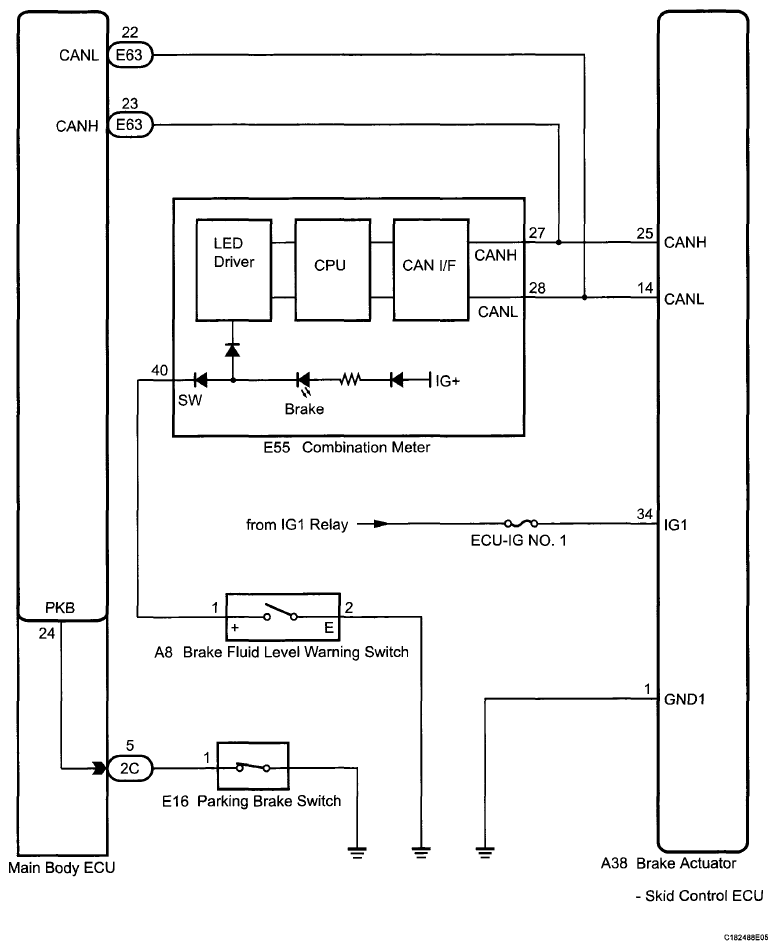

Fig 1: Brake Warning Light - Wiring Diagram
